High Density Polyurethane Tooling Board with Dimensional Stability and Temperature Resistance for CNC Machining
High Density Polyurethane Tooling Board with Dimensional Stability and Temperature Resistance for CNC Machining
Specifications
Brand Name :
LH-tool®
Model Number :
MB5120
Certification :
ISO9001:2008 Standard
Place of Origin :
China
MOQ :
10 Sheets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 Sheets Month
Delivery Time :
15 Days
Packaging Details :
Standard Carton Packing
Materials :
Polyurethane
Color :
Beige/red/grey
Size :
750*500* 1000*500*
Density :
1.25
Hardness :
80-85
Thickness :
35mm 50mm 75mm 100mm
Description
MB5166 Polyurethane High Density Model Board
High-density polyurethane tooling board featuring exceptional edge stability, minimal thermal expansion, and low dust formation during machining. Available in multiple sizes up to 1500x500 mm with thicknesses up to 150 mm.
Key Properties
  • Easy workability with high dimensional stability
  • Cost-effective solution with excellent compressive strength
  • High temperature and chemical resistance
  • Large sheet sizes available
  • Smooth, non-porous surface finish
  • Low coefficient of thermal expansion
Applications
  • Design studies and prototyping
  • CNC program testing and verification

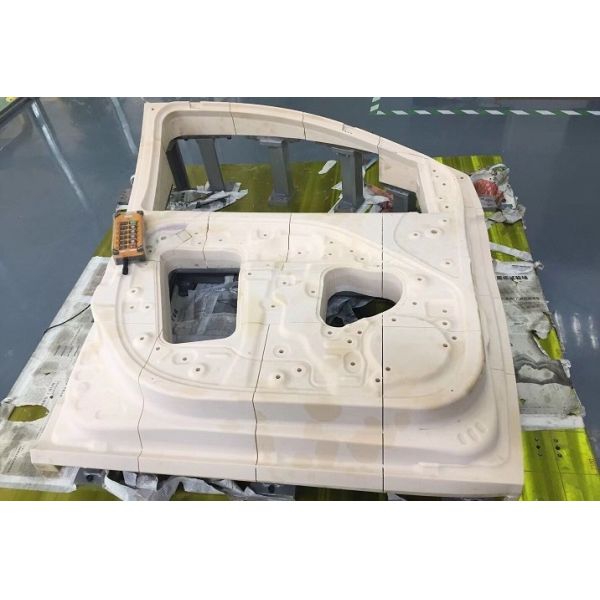

  • Architectural models and landscape features
  • Mold tools for composite part prototyping
  • Jigs, fixtures, foundry patterns, and core boxes
  • Vacuum forming molds and various model types
Technical Specifications
Property Value
Density (g/cm³) ~1.70
Hardness (Shore D) 85-90
Compressive Strength (N/mm²) 120
Temperature Resistance (°C) 100
Coefficient of Thermal Expansion 48
Flexural Strength (N/mm²) 80
Tensile Strength (N/mm²) 75
Available Dimensions
(L×W×H) 1000×500×50/75/100 mm
(L×W×H) 750×500×50/75/100 mm
High Density Polyurethane Tooling Board with Dimensional Stability and Temperature Resistance for CNC Machining
