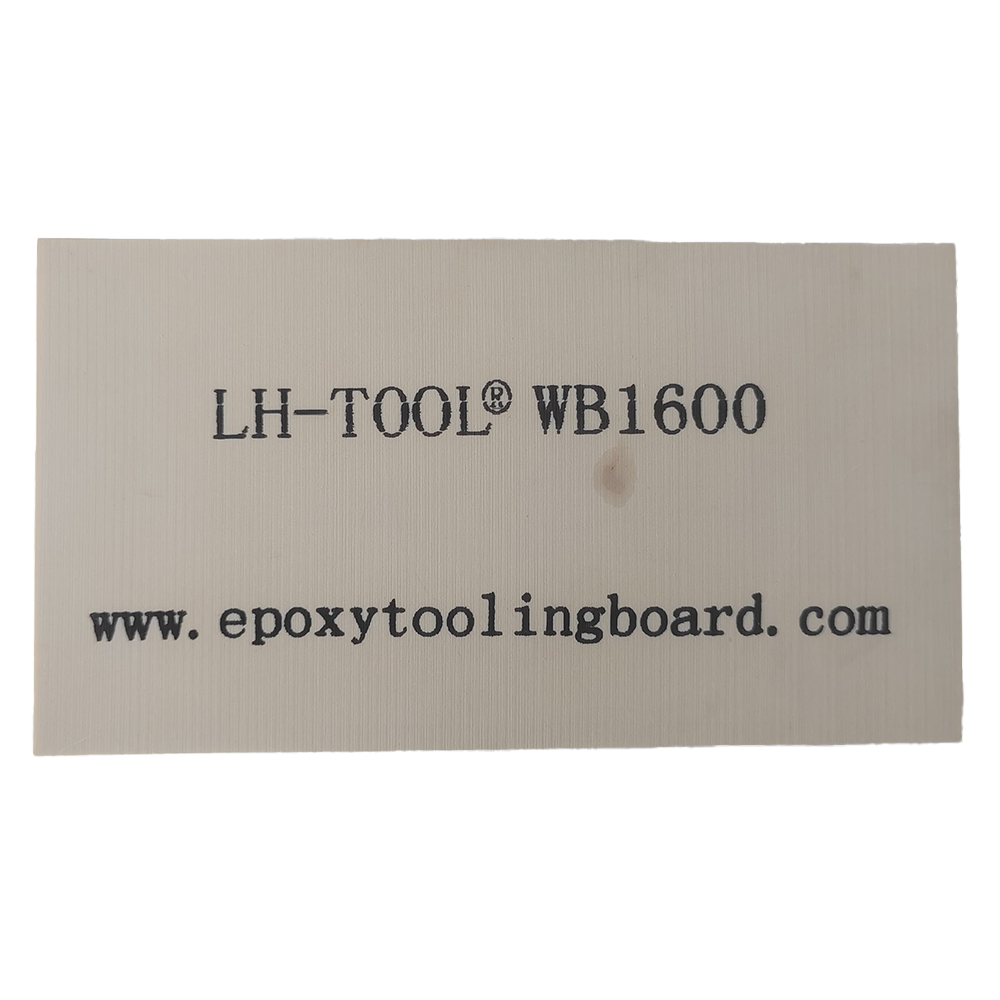

1.66g/Cm3 Epoxy Tooling Board 75mm Thickness High Density Model Board
1.66g/Cm3 Epoxy Tooling Board 75mm Thickness High Density Model Board
Specifications
Thickness :
50mm 75mm 100mm
Color :
Beige
Hardness :
85-90
Brand Name :
LH-tool®
Model Number :
LH-WB-1600
Certification :
ISO9001:2008 Standard
Place of Origin :
China
MOQ :
10 Sheets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 Sheets Month
Delivery Time :
15 Days
Packaging Details :
Standard Carton Packing
Size :
1000x500x50/75/100
Density :
1.66
Materials :
Polyurethane
Description

For over twenty years, we have been dedicated to developing innovative machinable sheets for model making, mold manufacturing, and tooling, with products meticulously designed in Guangzhou. Our LH-TOOL® solutions combine efficiency, outstanding performance, and sustainability: available in density ranges from 0.08–1.7 g/cm³, featuring fine surfaces, high dimensional stability, ease of processing, and perfectly matched adhesives and repair fillers. Tooling and models—efficient, robust, and sustainable. We also offer heat-resistant sheet materials for customer selection, with dimensions customizable according to specific requirements.

1.66g/Cm3 polyurethane Ivory Tooling Board For Die for Die for sheet metal forming

LH-TOOL WB-1600

High-tech polyurethane boards
· The color is ivory white
· Density 1.66g /cm3
· Resistant to high temperature to 100 ºC
· First-rate surface reduces the need for finishing
· Compatible with all paints, release agents and epoxy prepregs that meet industry standards

Working board (WB)
The LH® TOOL workboard combines excellent quality with outstanding mechanical properties.
Semi-finished products -- prefabricated rectangular panels -- are made in epoxy or polyurethane and can be bonded into a variety of shapes and sizes.
The LH® TOOL adhesive matches the hardness and color of the board.
The LH® TOOL work board has a density range of 0.69 to 1.7 g/cm3, providing excellent dimensional stability and easy and fast machining.

Technical parameter

Style LH-TOOL WB-1600
Color Beige
Density(ISO 1183) g/cm3 1.66
Applications 1. Metal plate forming mold
2. Check fixtures
3: Jig
Key Properties 1. Fine surfaces
2. Easy to process
3. Low coefficient of thermal expansion
4. Very good compressive strength
Hardness(ISO868)Shore D

85-90
Coefficient of thermal expansion
(ISO11359)10-6K-1		 44.0X10-6(1/K)
Deflection temperature
(ISO 75) °C		 75-80
Compressive strength
(ISO 604) MPa		 110-120Mpa
Flexural strength
(ISO 178) MPa		 80-85Mpa
Size mm 1000 x 500 x 50 mm
1000 x 500 x 75 mm
1000 x 500 x 100 mm

1.66g/Cm3 Epoxy Tooling Board 75mm Thickness High Density Model Board
