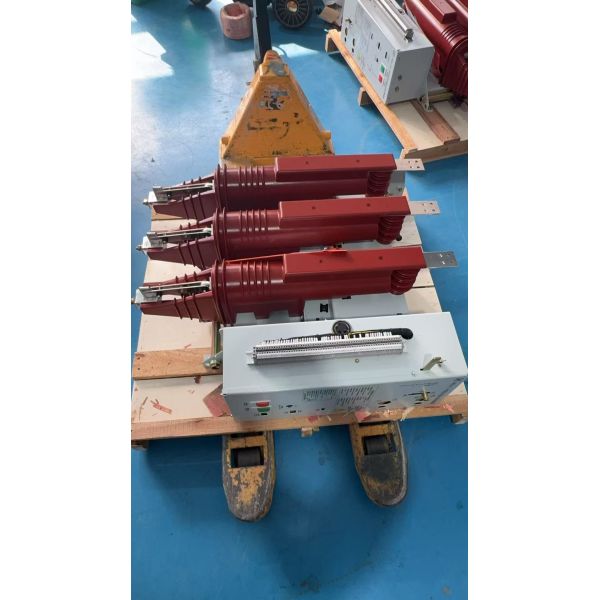

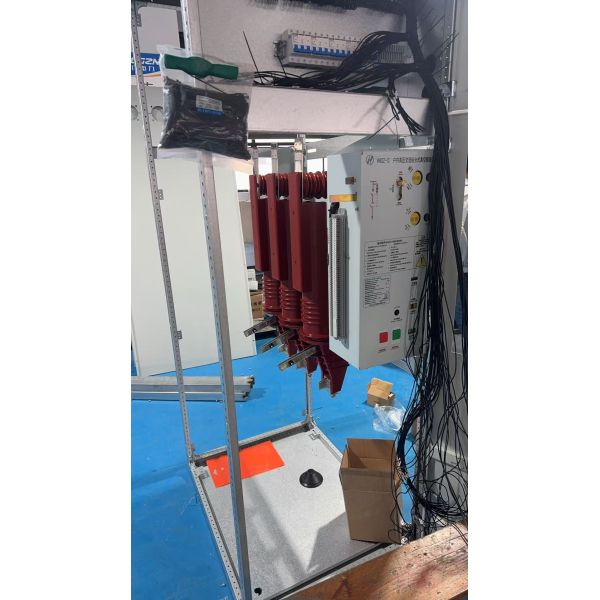

11kV Indoor high voltage AC combined vacuum circuit breaker
11kV Indoor high voltage AC combined vacuum circuit breaker
11kV Indoor high voltage AC combined vacuum circuit breaker
11kV Indoor high voltage AC combined vacuum circuit breaker
11kV Indoor high voltage AC combined vacuum circuit breaker
11kV Indoor high voltage AC combined vacuum circuit breaker
11kV Indoor high voltage AC combined vacuum circuit breaker
11kV Indoor high voltage AC combined vacuum circuit breaker
11kV Indoor high voltage AC combined vacuum circuit breaker
11kV Indoor high voltage AC combined vacuum circuit breaker
Specifications
Brand Name :
QIUPU
Model Number :
2Z-12
Certification :
ISO
Place of Origin :
WENZHOU
MOQ :
10PCS
Payment Terms :
T/T, Western Union
Supply Ability :
5000/MONTH
Delivery Time :
7 Days
Packaging Details :
WOODENS
Rate Voltage :
11kV
Frequency Voltage :
42kV
Rate Power :
50Hz
Rate Current :
630A-1250A
Life :
20000 times
Opration Power :
AC/DC 220V/110V/48V
Description

Indoor high voltage AC combined vacuum circuit breaker

Description

VS1-24 circuit breaker(with permanent magnet actuator) using vacuum arc extinguishing chamber, vacuum as arc extinguishing and insulation medium, arc extinguishing chamber has very high truth

VS1-24 Vacuum circuit breaker, voids, when the contact and static contacts are electrically divided under the action of the actuating mechanism, a vacuum arc will be generated between the contacts, and due to the special structure of the contact, an appropriate longitudinal magnetic field will be generated in the contact gap, which will cause the vacuum arc to remain diffusible and will spread evenly over the contact surface, maintaining a low arc voltage when the current is natural, The residual ion, electron and metal steam can be combined or assembled on the contact surface and shield over an order of magnitude of a microsecond, and the dielectric insulation of the interrupter break is quickly restored, resulting in the arc being extinguished and broken. As the vacuum breaker uses a magnetic field to control the vacuum arc, it has a strong and stable ability to break current.

Item Technical data
Rated voltage (KV) 24
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 68
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 125
Closing Power AC/DC 220V/110V
Life ≥2000

11kV Indoor high voltage AC combined vacuum circuit breaker11kV Indoor high voltage AC combined vacuum circuit breaker
