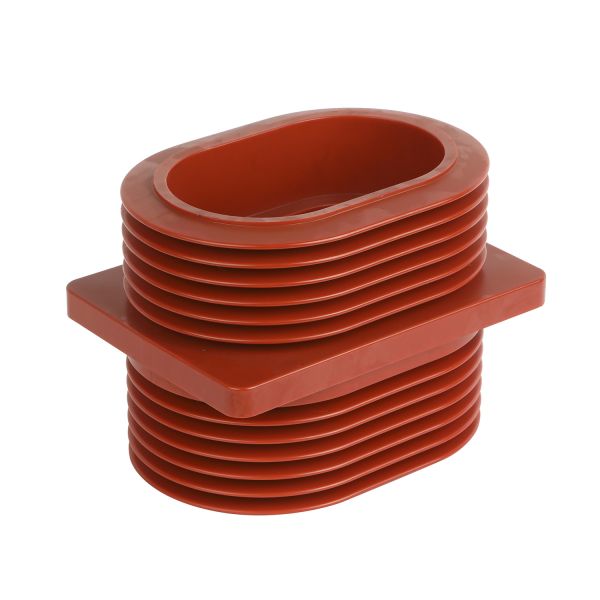

630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing
630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing
630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing
630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing
630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing
630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing
Specifications
Model Number :
TG3-24kV/175*235*278
MOQ :
100 PCS
Packaging Details :
CARTONS
Strength :
10kN
Brand Name :
QIUPU
Material :
Epoxy Resin/Casting Resin
Supply Ability :
10000PCS/MONTHS
Rated Voltage :
24kV
Higth :
278mm
Payment Terms :
T/T, Western Union
Frequency Voltage :
68kV
Delivery Time :
5 Days
Color :
Red
Certification :
IEC
Creepage Distance :
280mm
Place of Origin :
WENZHOU
Description

630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing

The casing can be divided into five types according to the place of use: indoor common type, outdoor common type, outdoor type, outdoor type, outdoor-indoor high prototype and outdoor type.
The common type is generally suitable for the installation site within 1000 M above sea level.
The common type of outdoor home is generally suitable for the area with an installation site not exceeding 1000M above sea level, but the installation site should be a no-obvious area.
The outdoor indoor anti-fouling type is suitable for installation site not exceeding 1000M above sea level. For severe and heavy fouling area, 63kV oil paper capacitive perforating wall casing can be used.
The outdoor high prototype is suitable for the installation site below 3000 M.
An outdoor interior plateau anti-fouling type is suitable for the installation of the site below 3000m above sea level in the filthy area.
The casing can be divided into three types: aluminum conductor, copper conductor and non conductor(busbar type) according to the conductor material used .

Current Bus-bar
630A 90*20
1250A 135*25

630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing

630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing

630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing630A-4000A 24kV Epoxy Resin Busbar Wall Through Bushing
