Specifications
Model NO. :
TIG er5356
Specification :
0.8/0.9/ 1.0/1.2/1.6/2.0/2.4 mm
Trademark :
WellCare
Origin :
China
HS Code :
8311300000
Production Capacity :
20000 Tons Per Month
Description
Product Description

Low Temperature Welding 2.5 mm TIG Er5356 Aluminum Alloy Welding Rod / Wire Er4043Low Temperature Welding 2.5 mm TIG Er5356 Aluminum Alloy Welding Rod / Wire Er4043* High speed welding can be achieved to more than 2500 pcs /minute.
* The welding point is strong,and no black, no flying nails, not easy broken.
* Good anti- rust effect, 12 months without rusting under wet climate.
* Suitable for ordinary smooth nails, ring nails, screw nails, thread nails, cold galvanized roll nails, hot galvanized roll nails.

KG/Box

Wire Chemical Composition (%)
Category Trademark GB AWS Properties and Uses
Chemical Composition (%)
TIG MIG Cu
Aluminum with CJ-1100 S301 ER1100 Plastic, corrosion resistant aluminum gas welding or TIG welding with.
0.05~0.20
Corrosion resistantaluminum
Alloy		 CJ-5183 S331 ER5183 High strength, good corrosion resistance, aluminum welding use.
≤0.10
CJ-5356 S5356 ER5356 Good corrosion resistance, high strength, good versatility, aluminum welding use,especially for 5083 welding materials
≤0.10
CJ-4043 S311 ER4043 Good corrosion resistance, versatility, large, aluminum welding, or weldingpurposes, not for high-magnesium alloy welding, welding materials used in the 4043better

Product Description

China 0.8mm 1kg/Carton Er5356 Aluminum Welding Wire Ce Certificate


Product Description:
AWS ER4043 is a general-purpose type aluminum welding wire which contains 5% silicon additives, resulting in outstanding fluidity and excellent permeability. It is recommended to weld various grades of aluminum alloys which contain at most 2% alloy elements or 7% Si such as 2014, 3003, 3004, 5052, 6060, 6061, 6063, 6101, etc.

Application:

  1. Mainly used in electrician, chemical, sports equipment, furniture and bicycle and such other aluminum alloy profile weld.
  2. Low carbon steel and low alloy steel, rolling stock, container, engineering machinery, and pressure container.
  3. Chemical Composition
Aluminum Welding Wire ER4043 ER5356 TIG and MIG Welding Wire

Used to weld ship building steel ( A , B , D , E , A36 , D36 , E36 ) and equivalent mild steel or 550 Mpa grade mild alloy steel , such as container building , construction machine , railway construction , pressure vessel for semi-auto or automatic gas shielded welding.

Chemical composition:
AWS Code chemical composition(%)
Si Fe Cu Mn Mg Cr Zn Ti
ER1060 0.25 0.35 0.05 0.03 0.03 - 0.06 0.03
ER1100 0.95 0.95 0.05-0.20 0.05 - - 0.10 -
ER4043 4.5-6.0 0.80 0.30 0.05 0.05 - 0.10 0.20
ER4047 11.0-13.0 0.80 0.30 0.15 0.10 - 0.20 -
ER5356 0.25 0.40 0.10 0.05-0.20 4.5-5.5 0.05-0.20 0.10 0.06-0.20
ER5183 0.40 0.40 0.10 0.5-1.0 4.3-5.2 0.05-0.20 0.25 0.15
ER5556 0.1 0.3 0.05 0.55-8.0 4.7-5.2 0.05-0.10 0.09 0.05-0.10


This product is with excellent plasticity, impact toughness and crack resistance. Its main characteristics are as follow.
1. Argon has good protective results and high quality welding can be obtained.
2. The arc has stable burning and shallow penetration, which is quite suitable for thin plates.
3. Easy to operate, all-position welding. One-side welding with back tormation.
4. Beautiful appearance of welding and no spatters.
AWS ER5356
Wire Size Spool Size Net Weight
0.8mm
1.0mm
1.4mm
1.2mm
1.6mm		 D100mm D200mm
D270mm D300mm K300mm		 2kg ,6kg
  1. Shielding Gas : Argon, Helium or Argon / Helium-mixtures
  2. Surface treatment: Always be chemical polishing, we also have shaving treatment. The goods after shaving, its surface can be more bright, less oil and damage.
  3. Diameter: 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm
  4. Packing: 1Kg/Spool, 2.5Kg/Spool, 5Kg/Spool, 10Kg/Spool and 15Kg/Spool.
Product Parameters

Product Description

Product Name Custom Made Good Sales aluminium alloy welding wire er4043 er5356
Keywords aluminium alloy welding wire er4043 er5356
Material aluminium alloy
Color silver
Standard AWSA 5-10
Grade ER4043 ER5356
Size Available Diameters:

0.8mm / 0.9mm/ 1.0mm / 1.2mm / 1.6mm / 2.0mm / 2.4mm etc..
Weight 0.5kg/2kg/6kg /7kg per spool, or by bundle
Used petrochemical engineering,fertilizer equipment

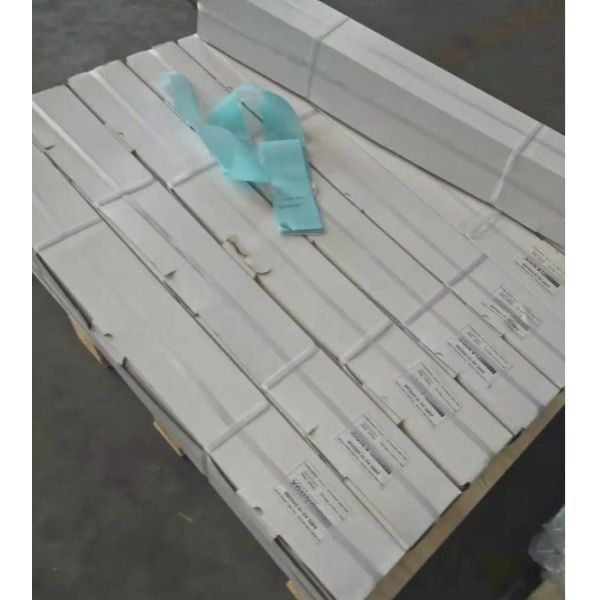

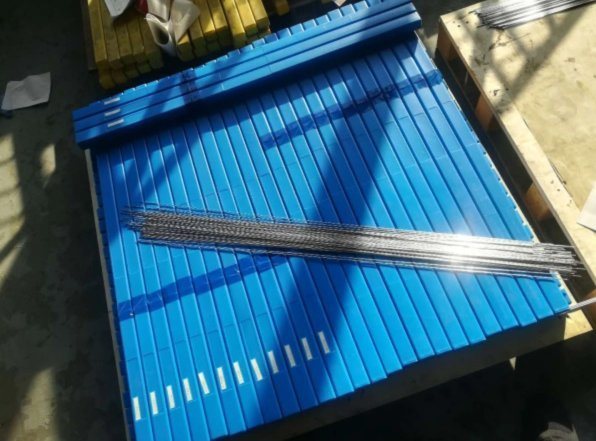

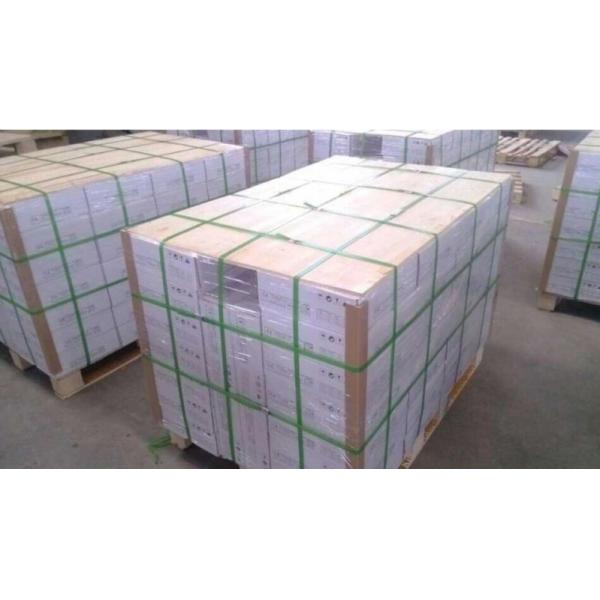

Packaging & Shipping
