Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Specifications
Model NO. :
cryogenic storage tank
Storage Medium :
Moncombustible/Nontoxic
Pressure Level :
Low Pressure (0.1MPa≤p<1.6MPa)
Condition :
New
Transport Package :
Tank Container
Specification :
customize
Trademark :
WellCare
Origin :
China
HS Code :
7309000000
Production Capacity :
100 Set/Sets Per Month
Description
Product name
Azoda stainless steel low temperature storage tank 3M ³ Oxygen nitrogen hydrogen low temperature storage container industrial gas storage tank support customization
Size
1800*1800*3073mm
Volume
3000L
Volume (cubic meters)
3(m3)
Inner material
Stainless Steel
Outer material
Stainless Steel
Design pressure (MPa)
1.68MPa
Maximum working pressure (MPa)
1.68MPa
Design standards
National standard
Working temperature (ºC)
-196 - 60 ºC
Micro Bulk Storage Tank, Micro Bulk CO2 Tank 450, Cryogenic Storage Tank
Port:
Qingdao, Tianjin, Shanghai, etc


Our Tank Contanier Advantages:

Vacuum insulated double layer tank
Excellent corrosion resistance;
Low permeability of drugs and gases;
Excellent cleaning performance;
The price is moderate;
Excellent and stable welding performance;
It has the characteristics of high purity and no extractables;
Excellent adhesion and stability

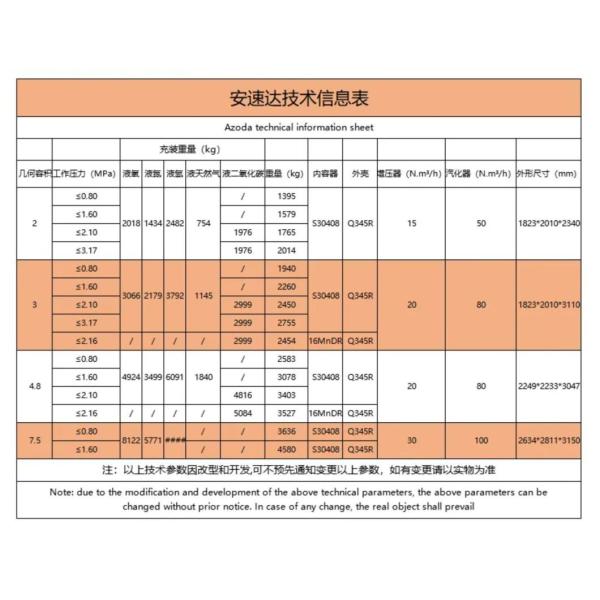

Specification
volume (m3)
working pressure (MPa)
working medium
dimension(mm)
net weigh(kg)
1m3
1.6
LO2,LN2,LAr,LNG
1300*1300*2326
720
2.5
LO2,LN2,LAr,CO2
1300*1300*2326
720
3.4
LO2,LN2,LAr
1300*1300*2326
1096
2m3
1.6
LO2,LN2,LAr,LNG
1750*1750*2741
1440
2.5
LO2,LN2,LAr,CO2
1750*1750*2741
1560
3.4
LO2,LN2,LAr
1600*1600*2390
1780
3m3
1.6
LO2,LN2,LAr,LNG
1850*1850*2869
1814
2.5
LO2,LN2,LAr,CO2
1850*1850*2869
1990
3.4
LO2,LN2,LAr
1850*1850*2869
2408
5m3
0.8
LNG
2300*2300*3160
2426
1.6
LO2,LN2,LAr,LNG
2150*2150*3095
2757
2.5
LO2,LN2,LAr,CO2
2150*2150*3095
3102
3.4
LO2,LN2,LAr
2150*2150*3095
3483
7.5m3
1.6
LO2,LN2,LAr,LNG
2350*2350*3210
4326

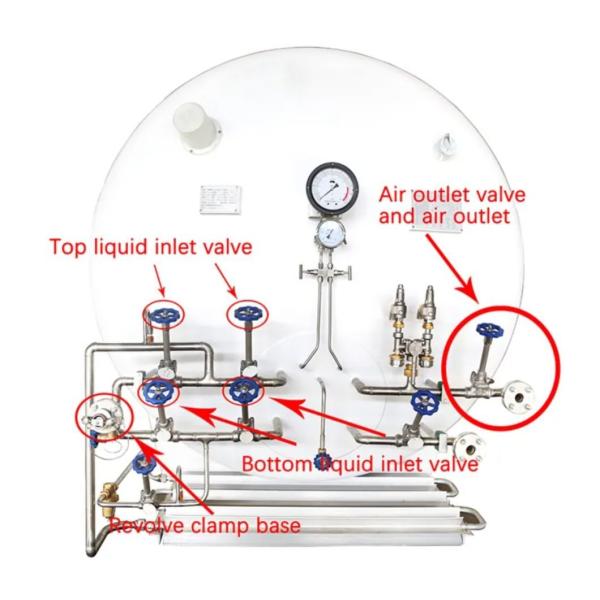

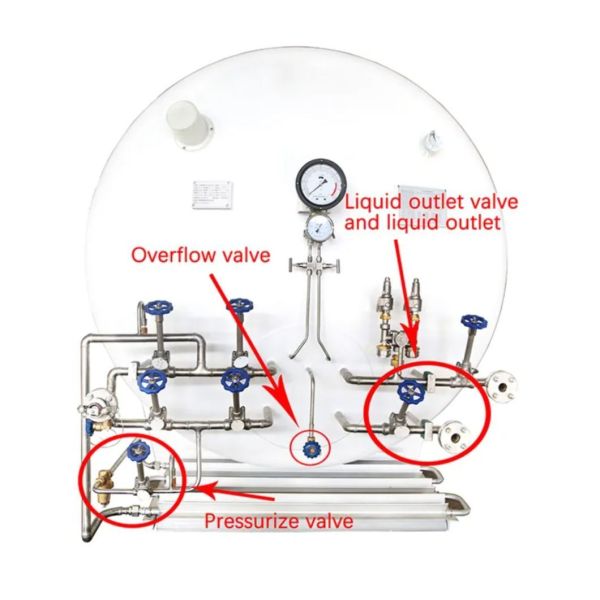

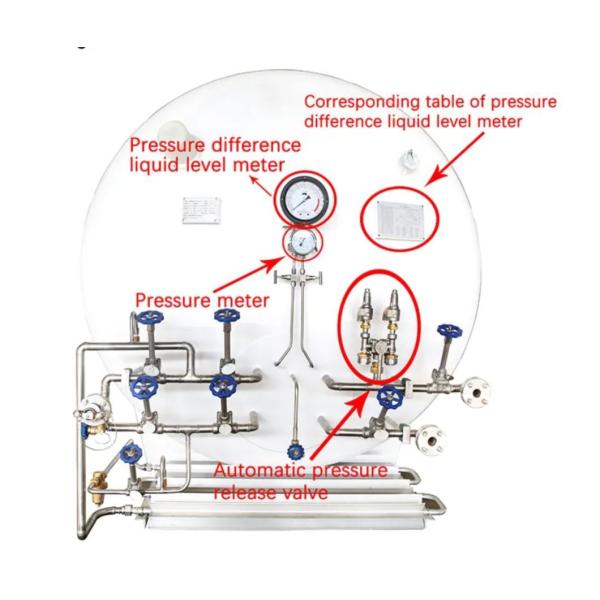

The fully refrigerated vacuum powder insulated storage tank containing LNG. It iscomposed of an inner container and an outer shell that maintains a vacuum insulation interlayer, and has a complete set of safety accessories, instrumentation and systems that meet operating requirements. The thermal insulation method of filling porous particulate thermal insulation material and vacuuming is adopted to realize the storage of LNG under low temperature and normal pressure.
