Specifications
Model NO. :
WGFT-00
Pressure Level :
High Pressure (10.0MPa≤p<100.0MPa)
Volume :
440L/470L/520L
Storage Medium :
Liquefied Gas
Transport Package :
Bulk Load
Specification :
CNG gas resources
Trademark :
WellCare
Origin :
China
HS Code :
8413709990
Production Capacity :
1000 Sets Per Year
Description
CNG Dispenser Specifications of CNG Gas Filling Stations or CNG Gas Fueling Stations as well as Natural Gas Station:
CNG Dispenser Series of CNG Gas Filling Stations
Basic type Mass flow CNG dispenser Single-line single-hose, single-line dual-hose, single-line four-hose
Dual-line single-hose, dual-line dual-hose, dual-line four-hose
Three-line single-hose, three-line dual-hose, three-line four-hose
Technical Parameters Applicable medium Compressed Natural Gas(CNG)
Accuracy measuring ±1.0%
Range of flow (2-30)kg/min(3-40)Nm³/min
Rated working pressure 20MPa
Max. working pressure 25MPa
Compressive strength 37.5MPa
Ambient temperature -40ºC-+50ºC
Explosive-proof grade Exd AT4Gb
Power supply 220V±15% 50Hz±1Hz
Unit of measurement Kg/Nm³
Minimum scale reading 0.01
Single counter range 0~9999.99
Totalize range 0~99999999.99
Rated power Single-hose:100W,dual-hose:200W,
Four-hose:400W

Features of Integrated CNG Gas filling station as well as CNG Gas Fueling Stations:

1: Highly integrated CNG Gas Filling Stations , plug-and-play in CNG Gas Fueling Stations, small footprint (8-13) X3.4X3.2 m on CNG Gas Filling Stations, low cost of construction of CNG Gas Fueling Stations, removable of CNG Gas Fueling Stations, no dustproof noise of CNG Gas Fueling Stations, easy maintenance on Natural Gas Station, high degree Natural Gas Station of intelligent integration on CNG Gas Fueling Stations, easy to operate on CNG Gas Filling Stations.

2: Natural Gas Station with Simple installation and fast debugging, the equipment entrance connects with city pipeline network from Natural Gas Station, and the outlet can refuel CNG vehicles directly. The real running time on Natural Gas Station for whole system CNG is no less than 3 hours before leaving the factory for CNG Gas Filling Stations.

3: CNG Gas Fueling Stations with small vibration for host machine and good balance for piston force on CNG Gas Filling Stations, the equipment vibration is reduced to the high limit. The overall equipment is with explosion-proof certification, safe and reliable on CNG Gas Fueling Stations.

4: With widely application and wide range of inlet gas on Natural Gas Station, the equipment from Natural Gas Station is particularly suitable for the station whose gas source is city pipeline network on CNG Gas Filling Stations.

5: The equipment adopts serialization, standardization and modular design with good versatility, simple maintenance and less operating costs on Natural Gas Station.

6: Compared with the traditional CNG Gas filling stations, the equipment of CNG Gas Fueling Stations does not provide a individual skim storage system regarding on Natural Gas Station, and it is with fast installation, high integration, strong mobility, energy saving, high natural gas utilization, small footprint, low operating costs, etc. The advantages of technology and market are obvious on CNG Gas Filling Stations.

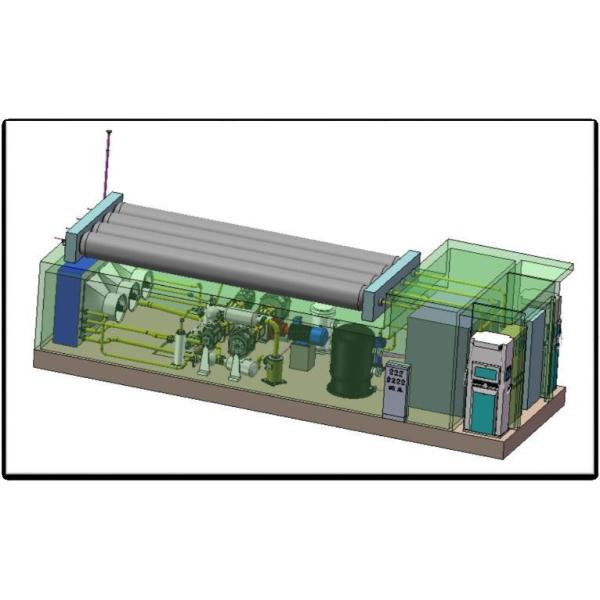

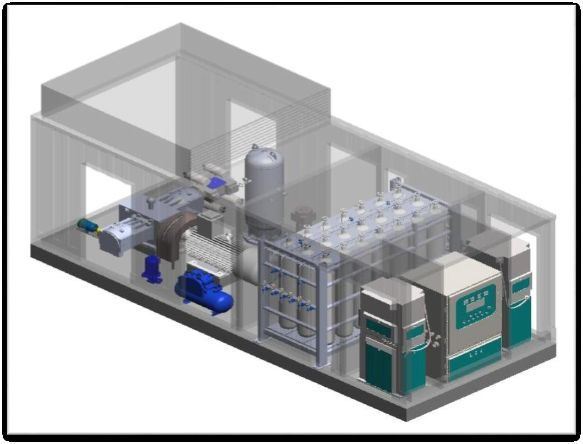

Design drawings of Integrated natural gas filling station:

CNG / LNG Gas Filling Stations Compressed Natural Gas CNG Gas Fueling StationsCNG / LNG Gas Filling Stations Compressed Natural Gas CNG Gas Fueling Stations
Factory Workshop :
CNG / LNG Gas Filling Stations Compressed Natural Gas CNG Gas Fueling Stations
CNG / LNG Gas Filling Stations Compressed Natural Gas CNG Gas Fueling Stations
CNG / LNG Gas Filling Stations Compressed Natural Gas CNG Gas Fueling Stations
CNG / LNG Gas Filling Stations Compressed Natural Gas CNG Gas Fueling Stations
CNG / LNG Gas Filling Stations Compressed Natural Gas CNG Gas Fueling Stations
CNG / LNG Gas Filling Stations Compressed Natural Gas CNG Gas Fueling Stations
