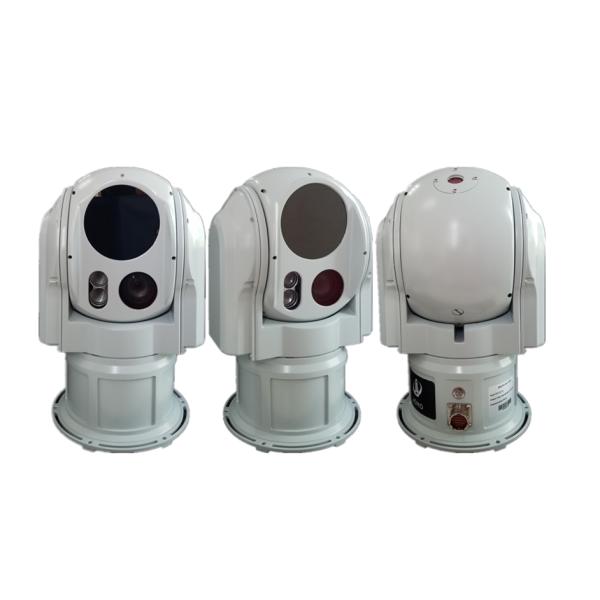

Fully Sealed Coastal Tracking System For Unmanned Ship HD CCD And IR Thermal Imager
Fully Sealed Coastal Tracking System For Unmanned Ship HD CCD And IR Thermal Imager
Fully Sealed Coastal Tracking System For Unmanned Ship HD CCD And IR Thermal Imager
Fully Sealed Coastal Tracking System For Unmanned Ship HD CCD And IR Thermal Imager
Fully Sealed Coastal Tracking System For Unmanned Ship HD CCD And IR Thermal Imager
Fully Sealed Coastal Tracking System For Unmanned Ship HD CCD And IR Thermal Imager
Specifications
Brand Name :
JOHO
Model Number :
JHS209-S05-100
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C,, Western Union, MoneyGram
Supply Ability :
50Sets/Year
Delivery Time :
negotiation
Packaging Details :
Standard Safety Equipment Case
Function :
Searching, Observation, Tracking and Positioning
Gyro Stabilised Gimbal :
2 Axis
Sensor :
HD CCD and IR Thermal Imager
Dimension :
156mm(Diameter)×244mm(H)
Application :
Unmanned Ship, Unmanned Vehicle, Usv, Uav
Pixel :
1920x1080
Color :
White & black
Stabilization accuracy :
≤0.5mrad
Detector :
VOX Uncooled FPA
Power Supply :
DC 12V
Power consumption :
≤15W
Image Transmission :
HD SDI
Description

JHS209-S05-100 Unmanned Ship Coastal Tracking System

1.1 Brief Introduction

The shipboard photoelectric monitoring system is a highly integrated optical electro mechanical integrated system, equipped with Hd 1080p 30 × daylight camera, uncooled LWIR thermal camera and 5km laser range finder. The system is a two axis and two frame stable platform. With the characteristics of compact structure and modular design, it is suitable for ships that meet the military and civil requirements of searching, observing, reconnoitering, tracking sea and air targets, and widely used in the fields of Navy, police, coast guard and maritime.The small size, light weight, strong adaptability, low power consumption and high cost performance make it have a long life.

1.2 Main Functions

  • Operation mode, azimuth and elevation data can be returned.

  • Fully sealed, waterproof, anti vibration, anti impact, long service life in harsh environment.

  • Two axes (azimuth and elevation) are stable, and high precision gyro and servo control system realize full coverage reconnaissance.
  • Support HD SDI image transmission and IP network video / image transmission.
  • Video tracking function.
  • The high precision correction ensures the optical axis alignment of thermal camera, solar camera and laser rangefinder.

1.3 Performance Specifications

Technical Specification

THERMAL CAMERA
Detector Uncooled FPA
Pixel 640*512
Spectral band 8μm~14μm
Pixel 17mm x 17mm
Focal length 80mm
DAY LIGHT CAMERA
Detector 1/2.8" CMOS
Focal length 4.3~129mm, 30x
Resolution 1920×1080
LASER RANGE FINDER
Wavelength 1.06μm
Ranging 300m~5km (visibility 10km, 3m*3m target)
Measurement accuracy ≤ ± 5m
SERVO
Stabilization accuracy ≤0.5mrad(1σ)
Turret direction range azimuth:360° continuous; elevation:+60°~-60°
TURRET MAXIMUM ANGLE SPEED
Azimuth ≥30°/s
Pitch ≥30°/s
ENVIRONMENTAL
Operating temperature range -20ºC ~ +40ºC
Storage temperature range -30ºC ~ +50ºC
Tracking
Tracking speed ≥2.5FOV/S
Min tracking contrast ratio 5%
Dynamic tracking accuracy superior to 1mrad
POWER
Power Supply DC 24V
PHYSICAL
Dimension Turret ≤ Φ220× 400mm
Turret Weight ≤ 10kg
