TWN High Precision Pneumatic Gripper With Spring Holding Accumulator
TWN High Precision Pneumatic Gripper With Spring Holding Accumulator
TWN High Precision Pneumatic Gripper With Spring Holding Accumulator
TWN High Precision Pneumatic Gripper With Spring Holding Accumulator
TWN High Precision Pneumatic Gripper With Spring Holding Accumulator
TWN High Precision Pneumatic Gripper With Spring Holding Accumulator
TWN High Precision Pneumatic Gripper With Spring Holding Accumulator
TWN High Precision Pneumatic Gripper With Spring Holding Accumulator
Specifications
Brand Name :
Hyclamavin
Model Number :
TWN
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pce
Price :
USD, 450-2850, PC
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs per month
Delivery Time :
4-6 weeks
Packaging Details :
Carton Case
Actuation Type :
Pneumatic
Operating Temperature :
0-80°C
Mounting Type :
TWN
Gripping Force :
High
Dimensions :
6.5
Number Of Jaws :
2
Weight :
1.5 lbs
Maximum Jaw Load :
50 lbs
Jaw Width :
Multi-Tooth
Jaw Type :
Parallel
Material :
Steel
Jaw Opening :
Adjustable
Jaw Stroke :
Adjustable
Description
TWN High Precision Pneumatic Gripper with Spring Holding Accumulator for High-Performance Gripping Force Maintenance
Product Introduction

TWN High Precision Pneumatic Gripper With Spring Holding Accumulator

Superior Performance

  1. TWN grippers feature high precision, permanent lubrication, multi-tooth design, and straight groove guidance.

  • The compact structure is ideal for short strokes and heavy loads.

  • Load distribution across multiple surfaces reduces contact stress.

  • Grease is dispersed more efficiently and evenly.

  • Ensures long-term motion rigidity and accuracy.

  • The oil storage design within the multi-tooth guide extends service life.

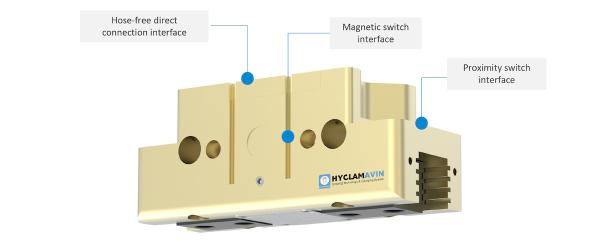

  1. TWN grippers offer multiple sensor and pneumatic interface options.

TWN High Precision Pneumatic Gripper With Spring Holding Accumulator

Gripping Force Maintenance – AS/IS

  1. TWN grippers can be equipped with gripping force maintenance, expanded to TWN-P-AS/IS (AS: closing maintenance, IS: opening maintenance).

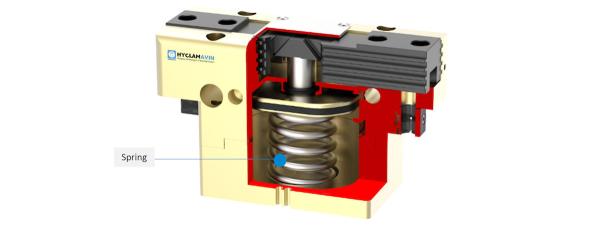

  2. A spring serves as the holding accumulator, ensuring a minimum clamping force is maintained in case of a pressure drop.

TWN High Precision Pneumatic Gripper With Spring Holding Accumulator

Dust-Tight Version

TWN grippers can be upgraded to a dust-tight version, designated as TWN-SD, achieving an IP64 rating.

High-Temperature Version

TWN grippers can be upgraded to a high-temperature version, designated as TWN-P-HT, increasing the temperature tolerance range from 5–90°C in the standard version to 5–130°C.

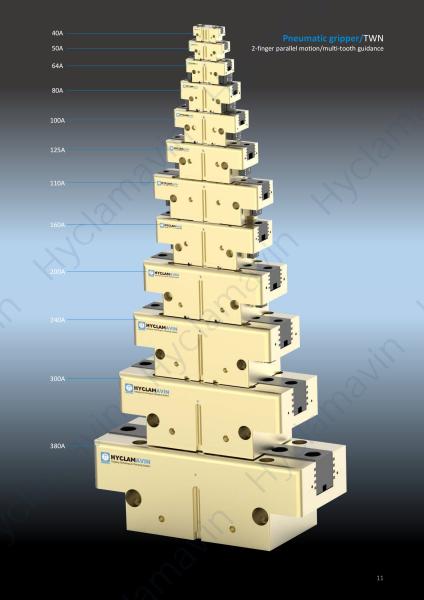

Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protecti on class IP
TWN-40A-1 2.5 130/140 0.08 0.65 0.02/0.02 0.01 40/64
TWN-40A-1-AS 2.5 170/- 40 0.1 0.65 0.02/0.03 0.01 40/64
TWN-40A-1-IS 2.5 -/190 50 0.1 0.65 0.03/0.02 0.01 40/64
TWN-50A-1 4 160/180 0.15 0.8 0.02/0.02 0.01 40/64
TWN-50A-1-AS 4 205/- 45 0.21 0.8 0.02/0.03 0.01 40/64
TWN-50A-1-IS 4 -/225 45 0.21 0.8 0.03/0.02 0.01 40/64
TWN-50A-2 2 330/370 0.15 1.65 0.02/0.02 0.01 40/64
TWN-50A-2-AS 2 425/- 95 0.21 1.65 0.02/0.03 0.01 40/64
TWN-50A-2-IS 2 -/465 95 0.21 1.65 0.03/0.02 0.01 40/64
TWN-64A-1 6 270/300 0.27 1.35 0.03/0.03 0.01 40/64
TWN-64A-1-AS 6 360/- 90 0.37 1.35 0.02/0.04 0.01 40/64
TWN-64A-1-IS 6 -/390 90 0.37 1.35 0.04/0.02 0.01 40/64
TWN-64A-2 3 560/620 0.27 2.8 0.03/0.03 0.01 40/64
TWN-64A-2-AS 3 750/- 190 0.37 2.8 0.02/0.04 0.01 40/64
TWN-64A-2-IS 3 -/810 190 0.37 2.8 0.04/0.02 0.01 40/64
TWN-80A-1 8 360/430 0.5 1.8 0.04/0.04 0.01 40/64
TWN-80A-1-AS 8 515/- 155 0.6 1.8 0.03/0.05 0.01 40/64
TWN-80A-1-IS 8 -/585 155 0.6 1.8 0.05/0.03 0.01 40/64
TWN-80A-2 4 745/890 0.5 3.72 0.04/0.04 0.01 40/64
TWN-80A-2-AS 4 1065/- 320 0.6 3.72 0.03/0.05 0.01 40/64
TWN-80A-2-IS 4 -/1210 320 0.6 3.72 0.05/0.03 0.01 40/64
TWN-100A-1 10 690/750 0.81 3.45 0.07/0.07 0.01 40/64
TWN-100A-1-AS 10 930/- 240 1 3.45 0.05/0.09 0.01 40/64
TWN-100A-1-IS 10 -/990 240 1 3.45 0.09/0.05 0.01 40/64
TWN-100A-2 5 1430/1550 0.81 7.15 0.07/0.07 0.01 40/64
TWN-100A-2-AS 5 1930/- 500 1 7.15 0.05/0.09 0.01 40/64
TWN-100A-2-IS 5 -/2050 500 1 7.15 0.09/0.05 0.01 40/64
TWN-110A-1 20 1050/1150 2 5.25 0.15/0.15 0.01 40/64
TWN-125A-1 13 1250/1400 1.24 6.25 0.10/0.10 0.01 40/64
TWN-125A-1-AS 13 1640/- 390 1.85 6.25 0.08/0.12 0.01 40/64
TWN-125A-1-IS 13 -/1790 390 1.85 6.25 0.12/0.08 0.01 40/64
TWN-125A-2 6 2590/2900 1.24 12.95 0.10/0.10 0.01 40/64
TWN-125A-2-AS 6 3390/- 800 1.85 12.95 0.08/0.12 0.01 40/64
TWN-125A-2-IS 6 -/3700 800 1.85 12.95 0.12/0.08 0.01 40/64
TWN-160A-1 16 1710/1820 2.6 8.55 0.15/0.15 0.01 40/64
TWN-160A-1-AS 16 2280/- 570 3.6 8.55 0.12/0.25 0.01 40/64
TWN-160A-1-IS 16 -/2390 570 3.6 8.55 0.25/0.12 0.01 40/64
TWN-160A-2 8 3550/3780 2.6 17.75 0.15/0.15 0.01 40/64
TWN-160A-2-AS 8 4770/- 1220 3.6 17.75 0.12/0.25 0.01 40/64
TWN-160A-2-IS 8 -/5000 1220 3.6 17.75 0.25/0.12 0.01 40/64
TWN-200A-1 25 2810/2980 5 14 0.35/0.35 0.02 40/64
TWN-200A-1-AS 25 3720/- 910 7.5 14 0.30/0.60 0.02 40/64
TWN-200A-1-IS 25 -/3890 910 7.5 14 0.60/0.30 0.02 40/64
TWN-200A-2 14 5700/6000 5 28.5 0.35/0.35 0.02 40/64
TWN-200A-2-AS 14 7300/- 1600 7.5 28.5 0.30/0.60 0.02 40/64
TWN-200A-2-IS 14 -/7700 1600 7.5 28.5 0.60/0.30 0.02 40/64
TWN-220A-1 16 3700/4000 3.9 18.5 0.16/0.16 0.02 40/64
TWN-240A-1 30 4500/4750 7.7 22.5 0.45/0.45 0.04 40/64
TWN-240A-1-AS 30 5600/- 1100 11.8 22.5 0.35/0.65 0.04 40/64
TWN-240A-1-IS 30 -/5850 1100 11.8 22.5 0.65/0.35 0.04 40/64
TWN-240A-2 17 6970/7360 7.7 34.8 0.45/0.45 0.04 40/64
TWN-240A-2-AS 17 8810/- 1840 11.8 34.8 0.35/0.65 0.04 40/64
TWN-240A-2-IS 17 -/9200 1840 11.8 34.8 0.65/0.35 0.04 40/64
TWN-300A-1 35 6040/6330 13.5 30.2 0.50/0.50 0.05 40/64
TWN-300A-1-AS 35 7440/- 1400 17.2 30.2 0.40/0.70 0.05 40/64
TWN-300A-1-IS 35 -/7730 1400 17.2 30.2 0.70/0.40 0.05 40/64
TWN-300A-2 20 10400/10900 13.5 52 0.50/0.50 0.05 40/64
TWN-300A-2-AS 20 12600/- 2200 17.2 52 0.40/0.70 0.05 40/64
TWN-300A-2-IS 20 -/13100 2200 17.2 52 0.70/0.40 0.05 40/64
TWN-380A-1 45 10100/10450 25.5 50.5 0.60/0.60 0.05 40/64
TWN-380A-1-AS 45 13400/- 3300 36 50.5 0.50/0.80 0.05 40/64
TWN-380A-1-IS 45 -/13750 3300 36 50.5 0.80/0.50 0.05 40/64
TWN-380A-2 26 17300/18000 25.5 86.5 0.60/0.60 0.05 40/64
TWN-380A-2-AS 26 23000/- 5700 37 86.5 0.50/0.80 0.05 40/64
TWN-380A-2-IS 26 -/23700 5700 37 86.5 0.80/0.50 0.05 40/64

Recommended accessories

TWN High Precision Pneumatic Gripper With Spring Holding Accumulator
