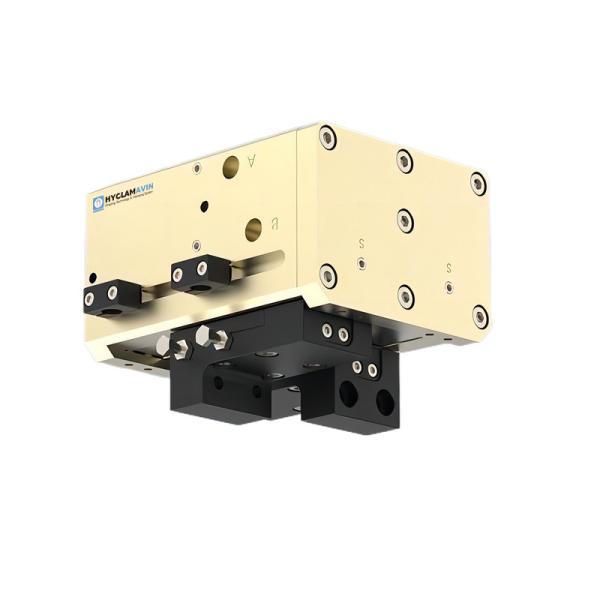

Parallel Pneumatic Shaft Gripper TFH Two Jaw Gripper High Force
Parallel Pneumatic Shaft Gripper TFH Two Jaw Gripper High Force
Parallel Pneumatic Shaft Gripper TFH Two Jaw Gripper High Force
Parallel Pneumatic Shaft Gripper TFH Two Jaw Gripper High Force
Parallel Pneumatic Shaft Gripper TFH Two Jaw Gripper High Force
Parallel Pneumatic Shaft Gripper TFH Two Jaw Gripper High Force
Specifications
Brand Name :
Hyclamavin
Model Number :
TFH
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
USD500-1000.00/PC
Payment Terms :
L/C, T/T
Supply Ability :
1000 pcs per month
Delivery Time :
4-6 weeks
Packaging Details :
Carton Case
Gripper Weight :
2.6-9.6 kgs
Recommended workpiece weight :
3.75-13.1 kgs
Stroke per Jaw :
30 mm-50 mm
Actuation :
Pneumatic
Material :
High Strength Aluminum Alloy
Gripping Force :
High
Number Of Jaws :
2
Operating Pressure :
2.5-8 bar
Operating Temperature :
5-90°C
Jaw Type :
Parallel
Protection Class :
IP41
Repeat Accuracy :
0.05mm
Description

2-Jaw Pneumatic Parallel Long Stroke Gripper TFH

Product Information

Parallel Pneumatic Shaft Gripper TFH Two Jaw Gripper High Force

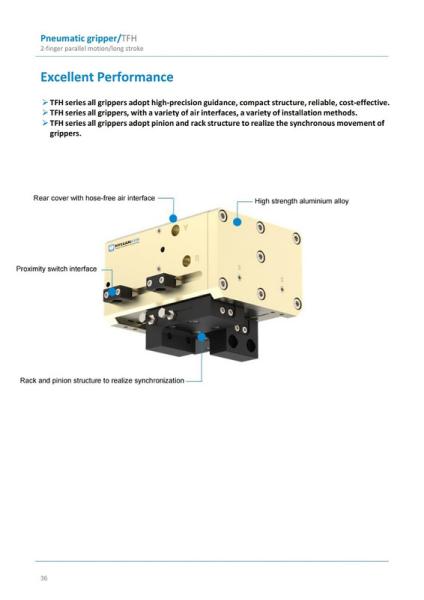

Excellent performance

1. TFH series all grippers adopt high-precision guidance, compact structure, reliable, cost-effective.

2. TFH series all grippers, with a variety of air interfaces, a variety of installation methods.

3. TFH series all grippers adopt pinion and rack structure to realize the synchronous movement of grippers.

Parallel Pneumatic Shaft Gripper TFH Two Jaw Gripper High Force

Model and Technical Parameters

Model

Stroke per jaw[mm]

Closing/ opening force[N]

Min. Spring force[N]

Weight[kg]

Recommended workpiece weight[kg]

Closing/ opening time[s]

Repeat accuracy [mm]

Protection class IP

TFH-30A-1

30

750/680

2.6

3.75

0.30/0.30

0.05

41

TFH-30A-1-AS

30

840/-

90

2.7

3.75

0.35/0.35

0.05

41

TFH-40A-1

40

1280/1120

4.7

6.4

0.30/0.30

0.05

41

TFH-40A-1-AS

40

1560/-

280

4.8

6.4

0.30/0.40

0.05

41

TFH-40A-1-IS

40

-/1400

280

4.8

6.4

0.40/0.30

0.05

41

TFH-50A-1

50

2620/2350

9.5

13.1

0.70/0.70

0.05

41

TFH-50A-1-AS

50

2970/-

350

9.6

13.1

0.60/0.80

0.05

41

TFH-50A-1-IS

50

-/2700

350

9.6

13.1

0.80/0.60

0.05

41

2 finger pneumatic gripper, long stroke TFH, China, suppliers, manufacturers, factory, custom, price, design, long stroke pneumatic gripper, two jaw parallel pneumatic gripper, heavy duty pneumatic gripper, 2 Finger robot Gripper, 2 Jaw gripper, 2 jaw air grippers
