Specifications
Brand Name :
BOTO
Model Number :
BT
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
4000USD
Payment Terms :
L/C, T/T
Supply Ability :
1000set/month
Delivery Time :
25 work days
Packaging Details :
Export carton
Power: :
Electronic, AC380V/50Hz, 3phase 4 Wires+ Ground Wire
Usage: :
Universal Testing Machine
Product Name: :
Altitude Test Chamber Manufacturers,Altitude Chamber
Temp Range: :
-70°C~+150°C
Inner Size (D*W*H): :
800*700*900 mm
Temp Fluctuation: :
±0.5%
Cooling Rate: :
0.7c~1.0c/Min (Average)
Pressure Range: :
101kpa ~1kpa
Selling Units: :
Single item
Test time: :
Dust test time set freely, 0~999.9hr
Description

Lab Equipment High Altitude Low Pressure Simulation Environmental Climatic Test Chamber Environmental Test Chambers

Altitude Test Chamber Manufacturers,Altitude Chamber are used in different industries like the instruments and meters, electrical products, materials, spare parts, equipment, etc, but mainly in aviation, aerospace, information, electronics and other industries. This machine can be operated at a low pressure, high temperature, low temperature, under the effect of single factor or multiple conditions at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen.

Technical parameters:

Model BT-OTS-252M BT-OTS-504M BT-OTS-1000M BT-OTS-2160M
Inner Size (D*W*H)mm 600*600*700 800*700*900 1000*1000*1000 1200*1400*1200
Capacity(KW) 11 15 16 18
Chamber Volume(L) 252 504 1000 2160
Specifications Temp range -70℃~+150℃ -70℃~+150℃ -70℃~+150℃ -70℃~+150℃
Temp fluctuation ±0.5%
Temp deviation ≥100℃, ±3.0℃(at 101kPa, ATM no load)
<100℃, ±2.0℃(at 101kPa, ATM no load)
Cooling rate 0.7℃~1.0℃/min (Average)
Pressure range 101kPa ~1kPa
Pressure accuracy ±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa)
Depressurization rate 101kPa ~1kPa≤30mins (Room temp)
Pressure recovery rate 10kPa/Min(adjustable)

Main structure:

1. Box made by numerical control equipment, advanced technology, smooth lines,

elegant appearance

2. Box material is 1.2mm thickness 304SUS stainless steel

3.The air duct in the oven adopt single-cycle system, with import of axial flow fan, To improve the air flow, heat ability, greatly improved the uniformity of the temperature in the cabinet

4. Tube: Special uv lamp, 2 rows, 8PCS,40W/PC

5. Lamp Lifetime: more than 1600h

6. Water supply and consumption:Tap water or distilled water about 8L/day

7. Both sides were installed in the studio 8PCS UVA or UVB lamp

8. Heating method: Bladder tank type heating,heat up fast,temperature distribution uniformity

9. Tank cover:double flip,easy shut down.

10. The tank water level automatic filling water, prevent damage of heat pipe air to burn.

11. Sample frame is made from stainless steel or aluminum alloy.

12. Machine bottom using high quality PU wheel fixed

13. Drainage system using U type drainage device

14. The test sample surface with uv light plane in parallel

15. Internal installation of automatic sprinkler spray system, the water pressure is adjustable

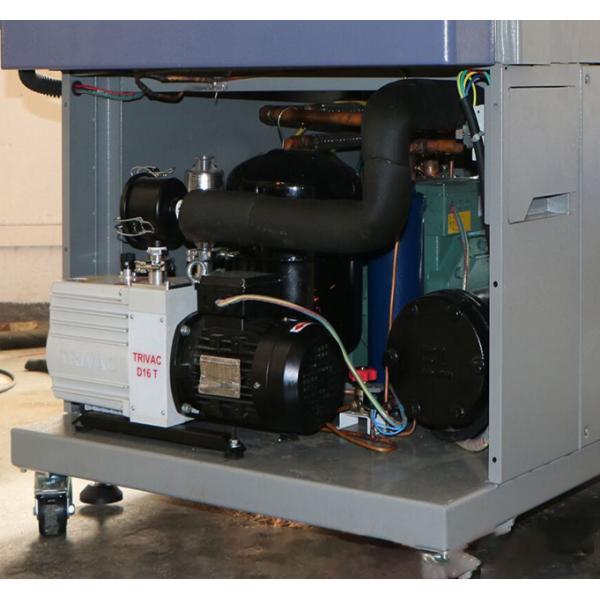

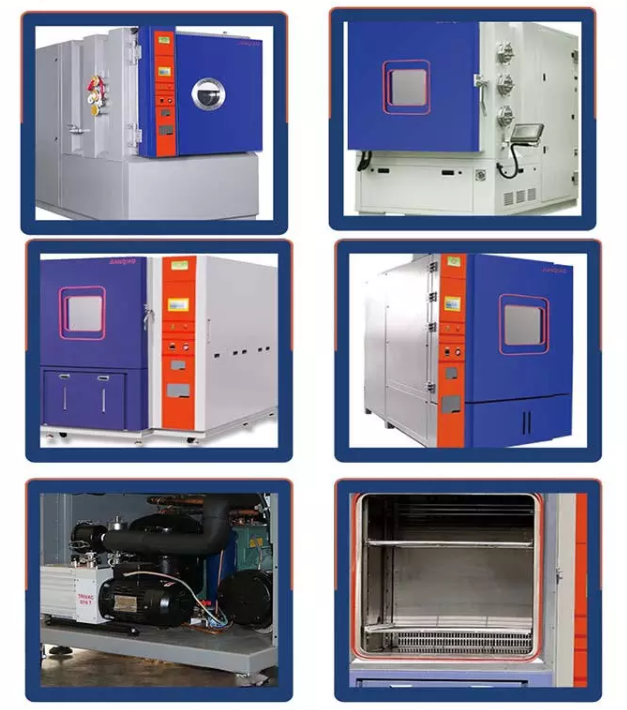

Product image

Low Pressure Environmental Test Chambers High Altitude Simulation 1000L 16KW

Low Pressure Environmental Test Chambers High Altitude Simulation 1000L 16KW

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.

Factory iamage

Low Pressure Environmental Test Chambers High Altitude Simulation 1000L 16KW

Low Pressure Environmental Test Chambers High Altitude Simulation 1000L 16KW

Main market

Low Pressure Environmental Test Chambers High Altitude Simulation 1000L 16KW

FAQ

Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.

Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
