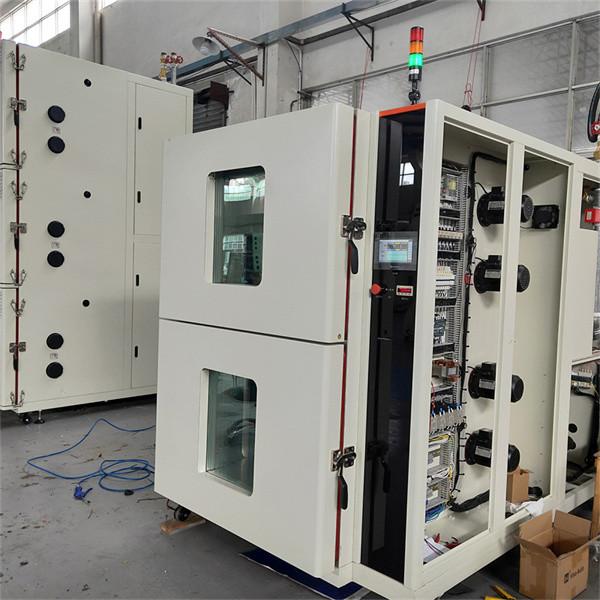

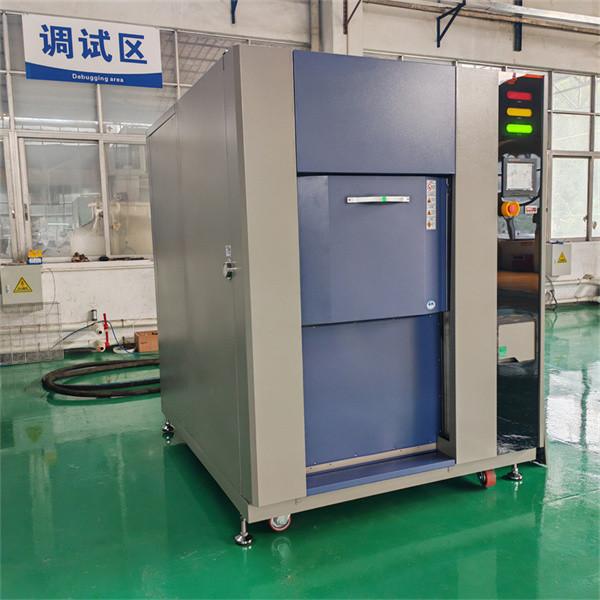

Thermal Shock Chambers for ASTM Material and Component Performance Testing
Thermal Shock Chambers for ASTM Material and Component Performance Testing
Thermal Shock Chambers for ASTM Material and Component Performance Testing
Thermal Shock Chambers for ASTM Material and Component Performance Testing
Thermal Shock Chambers for ASTM Material and Component Performance Testing
Thermal Shock Chambers for ASTM Material and Component Performance Testing
Specifications
Brand Name :
PRECISION
Model Number :
TSC-80
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
$6000
Payment Terms :
T/T
Supply Ability :
100/month
Delivery Time :
15 working days
Packaging Details :
Standard export packaging
Customized support :
OEM ODM
Origin :
China
Material :
Stainless Steel
Controller :
Programmable LCD Touch Screen
Temp accuracy: :
0.5°C
Temp uniformity :
0.5°C
Refrigerant :
Environmental friendly
Description

Thermal Shock Chambers for ASTM Material and Component Performance Testing

Product Description:

Our thermal shock chambers are designed to meet or exceed ASTM testing standards for evaluating the performance of materials and components under rapid and extreme temperature changes. These chambers are essential for ensuring the reliability and durability of your products in various applications.

Key Features:

  • ASTM Compliance: Our chambers meet or exceed the requirements of relevant ASTM standards for thermal shock testing.
  • Precise Temperature Control: Our chambers maintain accurate and stable temperatures in both hot and cold zones.
  • Rapid Temperature Transition: The chambers feature a high-speed transfer mechanism to quickly move test samples between hot and cold zones, minimizing the time it takes to complete a test cycle.
  • Programmable Control System: The chambers have a user-friendly programmable control system that allows you to set test parameters such as temperature, dwell time, and cycle count.
  • Data Logging: Our chambers can record and store test data for analysis and reporting purposes.
  • Safety Features: The chambers include safety features such as over-temperature protection and door interlocks to ensure safe operation.

3. Specific Parameters

Model TSC-49-3 TSC-80-3 TSC-150-3 TSC-216-3 TSC-512-3 TSC-1000-3
Inside dimension(W x D x H) cm 40 x 35 x 35 50 x 40 x 40 65x 50 x 50 60 x 60 x 60 80 x 80 x 80 100 x 100 x 100
Outside dimension(W x D x H)cm 128x 190 x 167 138 x 196 x 172 149 x 192 x 200 158 x 220 x 195 180 x 240 x 210 220 x 240x 220
Internal material #304 Stainless Steel
External material Powder coated #304 Stainless Steel
High temperature range 60 ℃ ~ 200 ℃
Low temperature range 0 ℃ ~ -70 ℃
Test temperature range 60 ℃ ~ 180 ℃ / 0 ℃ ~ -70 ℃
Temperature recovery time 1-5min
Temperature stability ℃ ±2
Cylinder switching time 10s
High temperature ℃ 150 150 150 150 150 150
Heating time (min) 20 30 30 30 30 30
Low temperature -40, -50, -65 -40, -50, -65 -40, -50, -65 -40, -50, -65 -40, -50, -65 -40, -50, -65
Cooling time (min) 40, 50, 60 40, 50, 60 40, 50, 60 40, 50, 60 40, 50, 60 40, 50, 60
Air circulation system Mechanical convection system
Cooling system Imported compressor, fin evaporator, gas condenser
Heating system Fin heating system
Humidification system Steam Generator
Humidification water supply Reservoir, Sensor-controller solenoid valve, recovery-recycle system
Controller Touch panel
Electrical power requirements 3 phase 380V 50/60 Hz
Safety device Circuit system load protection, compressor load protection, control system load protection, humidifier load protection, overtemperature load protection, fault warning light

Applications:

  • Material and component performance testing
  • Reliability testing
  • Durability testing
  • Quality control and product validation

Benefits:

  • Identifies potential failure points in materials and components
  • Ensures product reliability and durability in extreme temperature environments
  • Accelerates product development and validation processes
  • Reduces the risk of field failures and warranty claims
  • Meets industry standards and customer requirements

Thermal Shock Chambers for ASTM Material and Component Performance TestingThermal Shock Chambers for ASTM Material and Component Performance Testing

Why Choose Us:

We have years of experience in designing and manufacturing thermal shock test chambers. Our chambers are built to the highest standards and are backed by our commitment to customer satisfaction.

Contact us today to learn more about our thermal shock test chambers and how they can benefit your business.
