Product Description:

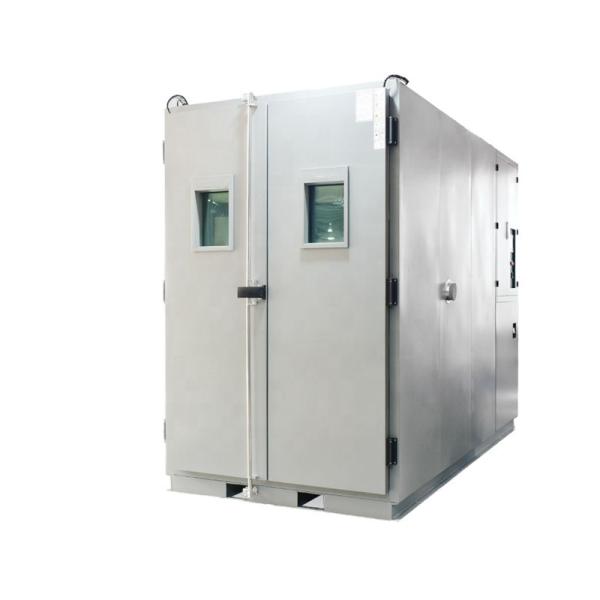

Our custom-engineered environmental testing walk-in chambers are designed to meet the rigorous durability and performance testing needs of the renewable energy sector, specifically for solar panels and wind turbine components. These large-scale chambers provide controlled environments to simulate a wide range of climatic conditions, allowing you to assess the long-term effects of temperature, humidity, UV radiation, and other environmental factors on your critical renewable energy components.
Key Features:
- Customizable Design:
- Tailored to accommodate the varying sizes and shapes of solar panels and wind turbine components.
- Customizable interior dimensions, temperature ranges, humidity ranges, UV radiation levels, and other environmental parameters.
- Large-Scale Testing Environment:
- Provides ample space for testing entire solar panels, wind turbine blades, or large assemblies simultaneously.
- Facilitates easy loading and unloading of heavy or bulky components.
- Precise Environmental Control:
- Advanced temperature, humidity, and UV radiation control systems for stable and uniform testing conditions.
- Ability to simulate extreme climatic conditions, including thermal cycling, salt spray, and prolonged UV exposure.
- Real-Time Monitoring and Data Logging:
- Integrated high-precision sensors and data acquisition systems for continuous monitoring and recording of test data.
- Provides detailed reports and data analysis for material evaluation and compliance.
- Safety and Compliance:
- Robust safety features to protect both equipment and test specimens.
- Designed to meet or exceed relevant industry standards and regulatory requirements.
-
Model | WIC-6 | WIC-11 | WIC-15 | WIC-48 | WIC-66 | WIC-100 |
Inside dimension(W x D x H) mm | 200 x 220 x 150 | 250 x 220 x 200 | 350 x 220 x 200 | 500 x 240 x 400 | 500 x 240 x 400 | 100 x 100 x 100 |
Outside dimension(W x D x H) mm | 280 x 260 x 180 | 350 x 260 x 230 | 455 x 260 x 230 | 610 x 280 x 430 | 680 x 280 x 530 | 155 x 190 x 160 |
Internal material | #304 Stainless Steel |
External material | Powder coated #304 Stainless Steel |
Temperature range | + 150℃~ - 70 ℃ |
Humidity range | 20% ~ 98% R. H |
Temperature resolution ℃ | 0.01 |
Humidity resolution % R. H. | 0.1 |
Temperature stability ℃ | ±0.5 |
Humidity stability % R. H. | ±2 |
Heating time | 30min |
Cooling time | -40℃/50min, -20℃/30min |
Air circulation system | Mechanical convection system |
Cooling system | Sirocco Fan |
Heating system | Sus316 Stainless steel Efficient heater |
Humidification system | Steam Generator |
Humidification water supply | Reservoir, Sensor-controller solenoid valve, recovery-recycle system |
Controller | Touch panel |
Electrical power requirements | Please contact us for requirements of specific models |
Safety device | Circuit system load protection, compressor load protection, control system load protection, humidifier load protection, overtemperature load protection, fault warning light |
Applications:
- Solar panel durability testing
- Wind turbine blade weathering testing
- Component corrosion testing
- Environmental stress screening (ESS)
- Reliability and performance evaluation
- Research and development
Benefits:
- Ensures the long-term durability and performance of renewable energy components.
- Accelerates product development and validation processes.
- Reduces the risk of component failures in harsh environments.
- Meets industry standards and regulatory requirements.
- Provides accurate and reliable testing data.


Why Choose Us:
We specialize in providing high-quality, custom environmental testing solutions for the renewable energy industry. Our walk-in chambers are designed and manufactured to the highest standards, ensuring reliable and accurate testing results. We offer comprehensive support, including design, installation, and ongoing maintenance.
Contact our expert team today to discuss your specific solar panel and wind turbine component testing requirements and discover how our custom walk-in environmental test chambers can optimize your testing processes.
