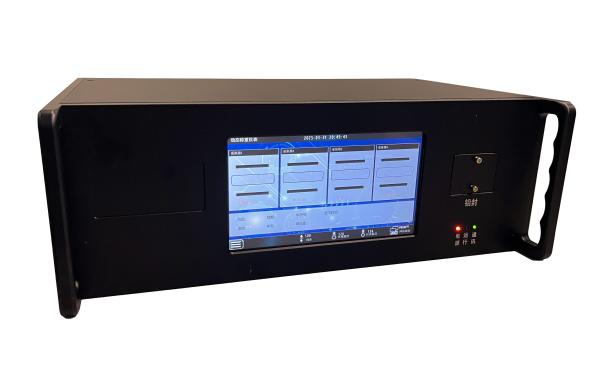

Weighing Controller CET100X

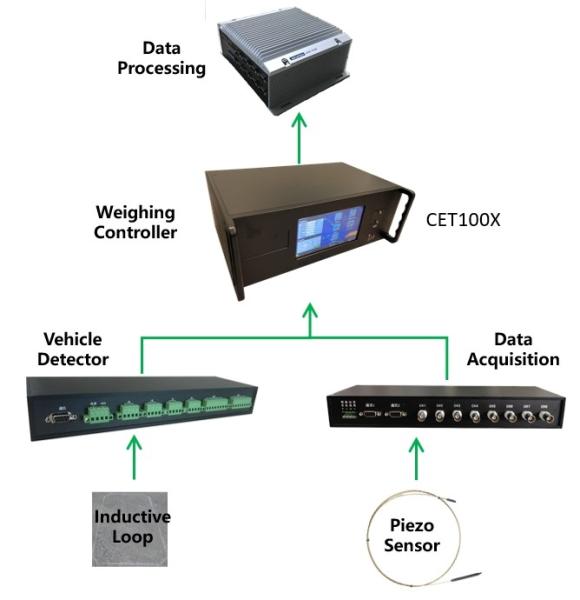

CET100X is a dynamic weighing controller specifically designed for traffic piezoelectric sensors.

1. Built-in Power Management Module: Enables real-time remote monitoring of power status, remote power on/off control, dual power protection, ensuring greater stability and reliability.
2. IP65 Protection Level: Designed to withstand field environments (e.g., outdoor highways, roadside bridges) with shock resistance, moisture proofing, and high/low temperature tolerance, achieving an IP65 protection rating.
3. System Integration (DTU, MCU) Module: The dynamic weighing controller integrates multiple modules, allowing real-time cloud monitoring and efficient device management (including traffic flow analysis, overload and oversize violation statistics, and timely detection and repair of faults or anomalies).
4. Independent Signal Collector: Ensures more precise and clear signal acquisition, enhancing accuracy and performance reliability.
5. Unique Advanced Algorithm: Features high fault tolerance, capable of separating front and rear vehicles without relying on loops, and quickly and accurately identifying vehicle characteristic information.
6. Integrated RFID Calibration Vehicle Tracking System: Automatically identifies vehicles, improving the acquisition rate of off-site calibration vehicle data, ensuring system calibration efficiency and accuracy.

Performance Specifications:

• Vehicle Weight Accuracy Error: ≤10%
• Maximum Weighing Capacity: >30 tons/axle
• Speed Range: 5–180 km/h
• Overload Capacity: Equal to road bearing capacity
• Traffic Detection Accuracy: >99%
• Speed Error: <1%
• Wheelbase Error: <1%
• Vehicle Length Error: <7%
• Vehicle Classification Accuracy: ≥95%
• Operating Temperature: -45°C to +80°C
• Operating Voltage: 85–250V AC
• Dimensions: W-380 mm × D-220 mm × H-350 mm

Powerful Features:

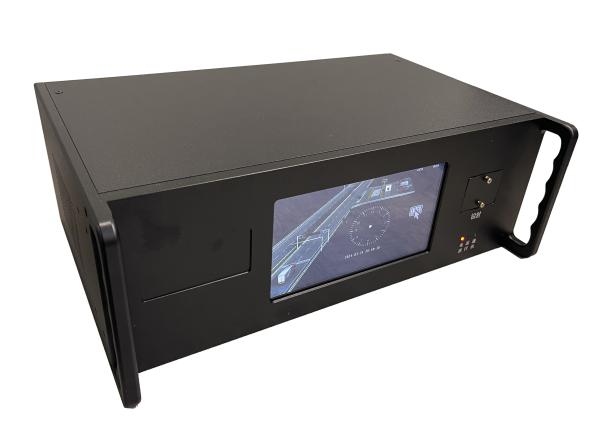

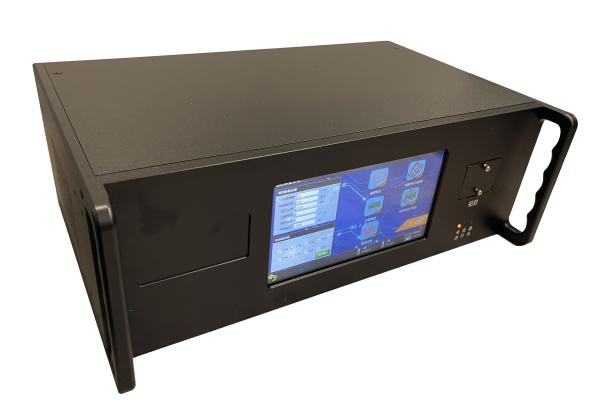

Equipped with a 7-inch touchscreen display, supporting human-machine interaction and robust offline configuration. Real-time data collection and output include single axle weight, number of axles, total vehicle weight, vehicle length, speed, traffic flow, vehicle spacing, driving direction, vehicle classification, road surface temperature, time, and date. Additional functions include cross-lane driving detection and more.
