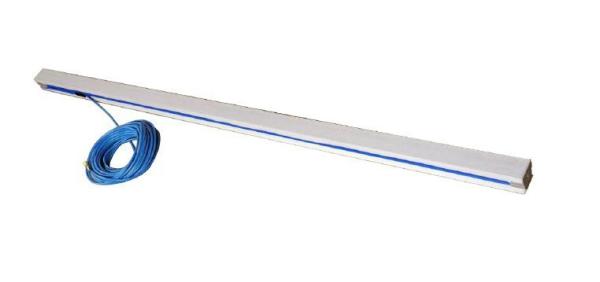

CET8312-A Quartz WIM Sensor 40T Load Capacity IP68 Protection
CET8312-A Quartz WIM Sensor 40T Load Capacity IP68 Protection
Specifications
Brand Name :
ENVIKO
Model Number :
CET8312-A
Place of Origin :
CHINA
HIGH ACCURACY :
98%,95%
MTBF :
≥30000h
HIGH CONSISTENCE :
Better than ±1%
Description

TYPE

CET8312-A

Cross-sectional dimensions

52(W)×58(H) mm²

Length specification

1M, 1.5M, 1.75M, 2M

Cable length

25 -100m

Load capacity

40T

Overload capacity

150%FSO

Sensitivity

-1.8~-2.1pC/N

Consistency

Better than ±1%

Accuracy max error

Better than ±2%

Linearity

Better than ±1.5%

Speed Range

0.5~200km/h

Repetitiveness

Better than ±1%

Working Temperature

-45 ~ +80 ℃

Insulation Resistance

≥1010Ω

Service life

≥100 million axle times

MTBF

≥30000h

Protection grade

IP68



CET8312-A Piezoelectric Quartz Dynamic Weighing Sensor features a wide measuring range, excellent long-term stability, high repeatability, precise measurement accuracy, and fast response frequency, making it ideal for dynamic weighing applications. This rigid, strip-shaped dynamic weighing sensor is based on the piezoelectric principle and incorporates a patented structure. It consists of a piezoelectric quartz crystal sheet, an electrode plate, and a specialized beam-bearing device. Available in sizes of 1 meter, 1.5 meters, 1.75 meters, and 2 meters, it can be combined into various configurations to meet different road traffic sensing requirements, offering high adaptability to dynamic weighing needs on diverse road surfaces.
