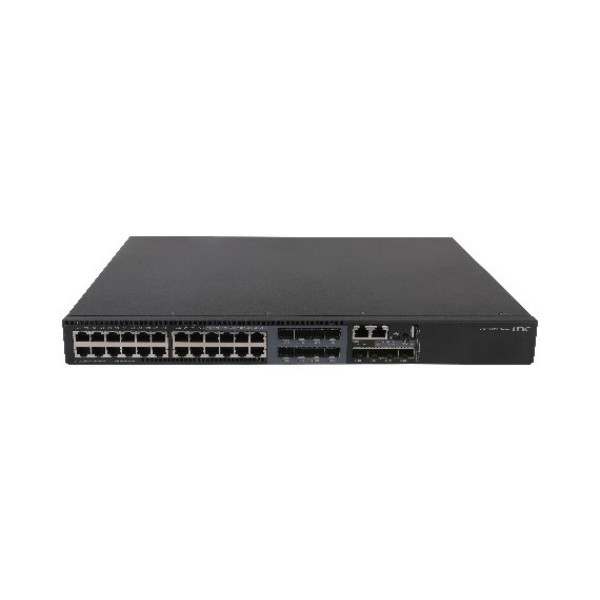

H3C LS-5560S-28P-EI Gigabit Switch : High PoE+ Power , IRF2 Stacking & Enterprise Security
H3C LS-5560S-28P-EI Gigabit Switch : High PoE+ Power , IRF2 Stacking & Enterprise Security
Specifications
Brand Name :
H3C
Model Number :
LS-5560S-28P-EI
Port Type :
SFP+
Management :
In-band and out-of-band
Speed :
1/10/25/40/50/100/400 Gbps
Operating Temperature :
0-40°C
Throughput :
Up to 172.8 Tbps
High Availability Features :
Virtual PortChannel, Hot Standby Router Protocol (HSRP), Virtual Router Redundancy Protocol (VRRP)
Performance :
Up to 12.8 Tbps
Power Supply :
Redundant hot-swappable power supplies
Redundancy :
1+1 or N+1 redundant power supplies
Redundant Power Supply :
Yes
Modular :
Yes
Warranty :
Limited lifetime hardware warranty
Supported Protocols :
Ethernet, Fibre Channel, FCoE, VXLAN
Chassis Options :
Fixed or Modular
Description

H3C LS-5560S-28P-EI Gigabit Switch : High PoE+ Power , IRF2 Stacking & Enterprise Security

The H3C LS-5560S-28P-EI is a high-performance Gigabit Ethernet switch designed for enterprise and campus networks, offering advanced PoE+ support, IRF2 intelligent stacking, and robust security features. Ideal for high-density access and converged networks, this switch ensures reliable connectivity, power efficiency, and simplified management.

Key Features & Benefits

✅ High PoE+ Power Delivery – Supports IEEE 802.3af/at (PoE+) with up to 30W per port, delivering power to IP phones, wireless APs, and IP cameras without extra cabling.
✅ IRF2 Intelligent Stacking – Combine up to 8 switches into a single logical device for scalable port expansion and unified management.
✅ Enterprise-Grade Security – Features 802.1X authentication, ACLs, DHCP Snooping, and anti-ARP spoofing for secure network access.
✅ High-Speed Performance – 256Gbps switching capacity with wire-speed forwarding, ensuring smooth data transfer for bandwidth-intensive applications.
✅ Reliable Redundancy – Supports dual power supplies (1+1 backup) and MSTP/RSTP for fast failover (<50ms).

Technical Specifications (H3C LS-5560S-28P-EI)

Category Specifications
Ports 24x 10/100/1000BASE-T + 4x 1000BASE-X SFP (Combo)
PoE Budget Up to 370W/740W (PoE+ model)
Switching Capacity 256Gbps
Forwarding Rate 95Mpps
Stacking IRF2 (up to 8 units)
Security ACL, 802.1X, Port Isolation, IP Source Guard
QoS SP/WRR/CBQ scheduling, traffic shaping
Management Web, CLI, SNMP, LLDP
Power Supply AC input, dual PSU (optional)

Ideal Use Cases

✔ Enterprise offices (unified wired & wireless access)
✔ IP surveillance networks (PoE for IP cameras)
✔ Campus & education networks (scalable stacking)
✔ SMB & mid-sized business networks (secure, high-performance switching)

With its high PoE power, stacking flexibility, and enterprise security, the H3C LS-5560S-28P-EI is a cost-effective, future-proof solution for modern networks.
