Specifications
Brand Name :
enook
Model Number :
51.2V 100A
Place of Origin :
china
Certification :
IC
MOQ :
1
Price :
900~1900
Internal resistance(mΩ) :
≤20
width :
510±2mm(excluding Ears)
thickness :
258±2mm
Estimate Weight :
53kg
Cycle Life :
≥2500 Cycles 80% Normal Temperature Below 25℃
Color :
Black
Nominal Voltage :
51.2V
Working Environment :
Charging Temperature:0℃~55℃; Discharge Temperature:-20℃~60℃
Description

Product Description:

The Enook lithium iron phosphate battery has a low internal resistance of ≤20mΩ, ensuring high efficiency and long-lasting performance. The battery comes in black, making it a sleek and stylish addition to your server racks. Its dimensions are 567±2mm in length and 510±2mm in width (excluding ears), making it a perfect fit for most server racks.

The Enook lithium iron phosphate battery is designed to work in a wide range of environments. It has a charging temperature range of 0℃~55℃ and a discharge temperature range of -20℃~60℃. This makes it suitable for use in various settings, whether in a cold data center or a warm server room.

Model
1
2
3
Nominal Voltage
51.2V
51.2V
51.2V
Nominal Capacity
120Ah
230Ah
304AH
Energy
5120Wh
11776Wh
15360wh
Series or Parallel Connection
16S1P
16S1P
16S1P
Maximum Charge Current
100A
200A
200A
Charge Current (-20 to - 10 ºC)
≤0.05C
≤0.05C
≤0.05C
Recommended Charge Voltage
56V-57.6V
56V-57.6V
56V-57.6V
BMS Charge Voltage Cut-Off
57.6V (3.75±0.025vpc)
57.6V (3.75±0.025vpc)
57.6V (3.75±0.025vpc)
Reconnect Voltage
54.6V (3.34 ±0.05vpc)
54.6V (3.34 ±0.05vpc)
54.6V (3.34 ±0.05vpC)
Dimensions (L x W x H)
440*435*222mm (17.3x17.1x8.74”)
480*248*618mm
475*255*770mm
Weight
70KG with wooden packing
120KG with wooden packing
150KG with wooden packing
Communication Interface
RS485 (Optional)
RS485 (Optional)
RS485/CAN (Optional)
Case Material
Metal
Metal
Metal
Enclosure Protection
IP54
IP54
IP54
Maximum Continuous Discharge Current
100A
200A
200A
BMS Discharge Current Cut-Off
100A
200A
200A
Reconnect Voltage
45V
45V
45V
Discharge Temperature
-20 to 60ºC (-4 to 140 ºF)
-20 to 60ºC (-4 to 140 ºF)
-20 to 60ºC (-4 to 140 ºF)
Charge Temperature
0 to 45ºC (32 to 113 ºF)
0 to 45ºC (32 to 113 ºF)
0 to 45ºC (32 to 113 ºF)

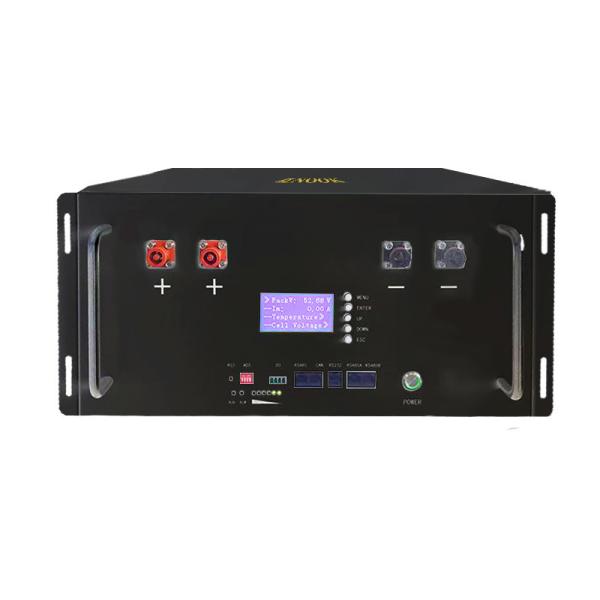

48V 51.2v Energy Storage Stackable Battery 100AH 200ah 300ah 10kw 20kw Server Rack Battery

Features:

  • Product Name: Server Rack Battery
  • Estimate Weight: 53kg
  • Length: 567±2mm
  • Internal resistance(mΩ): ≤20
  • Width: 510±2mm (excluding ears)
  • Color: Black
  • Battery Type: Enook Lithium Iron Phosphate Battery
  • Voltage: 48V / 51.2V
  • Capacity: 100Ah / 200Ah / 230Ah
  • Power: 5KW / 10KW
  • Smart Battery Management System (BMS)
48V 51.2v Energy Storage Stackable Battery 100AH 200ah 300ah 10kw 20kw Server Rack Battery

Applications:

The enook lithium iron phosphate battery is particularly well-suited for use in server racks. Its 48V 100AH Lifepo4 battery pack provides reliable, long-lasting power to keep critical systems up and running. The battery can handle a wide range of temperatures, with a charging temperature range of 0℃~55℃ and discharge temperature range of -20℃~60℃.

The battery has a length of 567±2mm, a thickness of 258±2mm, and a width of 510±2mm (excluding ears). Its internal resistance is ≤20mΩ, ensuring efficient power transfer and minimal energy loss. This makes it an ideal choice for use in data centers, where uptime is critical and any downtime can result in significant financial losses.

The enook lithium iron phosphate battery is also suitable for use in other applications that require dependable, high-performance power, such as electric vehicles, solar energy systems, and backup power systems. Its compact size and lightweight design make it easy to integrate into a variety of different devices and systems.

48V 51.2v Energy Storage Stackable Battery 100AH 200ah 300ah 10kw 20kw Server Rack Battery48V 51.2v Energy Storage Stackable Battery 100AH 200ah 300ah 10kw 20kw Server Rack Battery

Customization:

Customize your enook 51.2V 100A Server Rack Battery with our product customization services. Our energy storage battery for UPS is made in china with IC certification and a minimum order quantity of 1. The battery type is LiFePO4 with an internal resistance of ≤20 mΩ and a nominal voltage of 51.2V.

With our customization services, you can specify the length (567±2mm) and width (510±2mm excluding ears) of your server rack battery. Our Smart BMS System ensures optimal performance and safety.

Contact us for pricing information, which ranges from $900 to $1900.

48V 51.2v Energy Storage Stackable Battery 100AH 200ah 300ah 10kw 20kw Server Rack Battery

Packing and Shipping:

Product Packaging:

  • The Server Rack Battery will be packaged in a sturdy cardboard box to ensure safe transit.
  • The box will be labeled with the product name, model number, and any handling instructions.
  • The product will be wrapped in protective materials to prevent any damage during shipping.

Shipping:

  • The Server Rack Battery will be shipped via a reputable courier service.
  • Shipping costs will be calculated based on the destination and weight of the package.
  • The estimated delivery time will depend on the shipping method chosen by the customer.
  • Tracking information will be provided to the customer once the product has been shipped.
  • 48V 51.2v Energy Storage Stackable Battery 100AH 200ah 300ah 10kw 20kw Server Rack Battery48V 51.2v Energy Storage Stackable Battery 100AH 200ah 300ah 10kw 20kw Server Rack Battery
