FOV 1080P 0.7 Inch 3000 Nits Micro Display Module 24bit
FOV 1080P 0.7 Inch 3000 Nits Micro Display Module 24bit
FOV 1080P 0.7 Inch 3000 Nits Micro Display Module 24bit
FOV 1080P 0.7 Inch 3000 Nits Micro Display Module 24bit
Specifications
Brand Name :
ENMESI
Model Number :
R6
Certification :
CE,ROHS,FCC
Place of Origin :
CHINA
MOQ :
200pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T etc.
Supply Ability :
5000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
gift box
Material :
OLED
FOV :
51°
Resolution :
1080P
Screen Size :
0.7 Inch
Number of colors :
24bit (16777K)
MTF :
0.15@30lp/mm
Description

Sony EC✖335SN Large FOV 1080P Oled Display 0.7 Inch 3000 Nits Micro Display Module

Microdisplay technology is a branch of the field of display technology. Although the term "microdisplay" has been proposed in recent years, display devices with the characteristics of "microdisplay" have already appeared. The original display device with the "micro display" feature is a helmet-mounted micro CRT with an optical amplification device. With the development of the market, display devices require CRT replacement products with smaller, lighter and lower power consumption.
In recent years, researchers have developed many different microdisplay products to meet market demand.

The micro display module can be divided into monocular and binocular, with high-definition resolution, suitable for the needs of medical, education, industry and entertainment and other fields.

Product details

Product model R6
Screen size 0.7"
Resolution 1920&1080
Material OLED
FOV 51°
Eyerelief 15mm
Eyebox 8mm
Distortion 1.42%
Frame Rate 60Hz
Number of colors 24bit (16777K)
MTF 0.15@30lp/mm
Size 18.5mm*20.3mm
Weigh 14g

Product features

◆ High Resolution.

◆ Large FOV.

◆ Ultra high contrast.

◆ Wide color gamnt.

◆ Fast response speed.

◆ High brightness.

◆ Thin thickness.

◆ Power saving (ps) function.

◆ Scan direction selection,up or down and right or left.

◆ Orbit supported.

◆ Wide range of use temperatures.

◆ Uniform picture quality.

Product Description

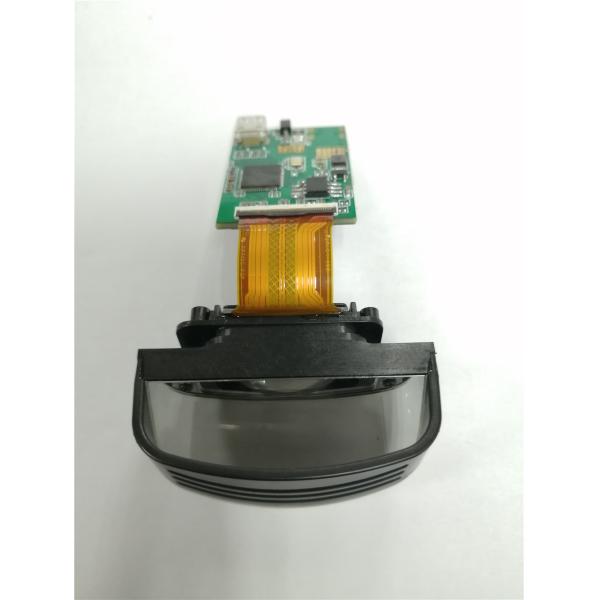

The micro display module is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution.
