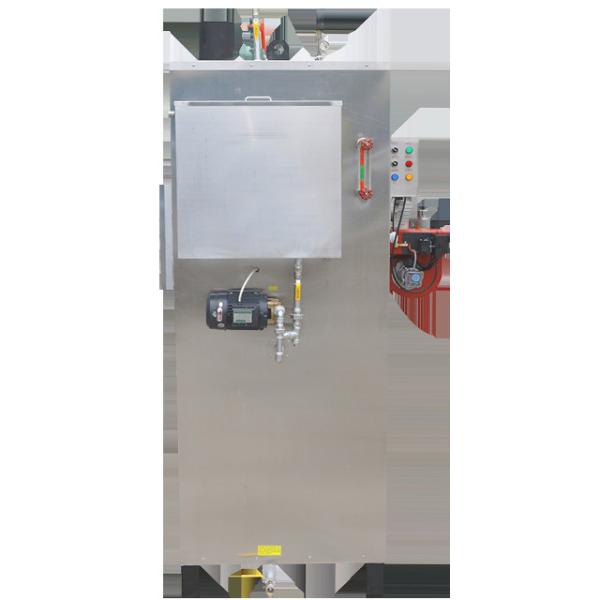

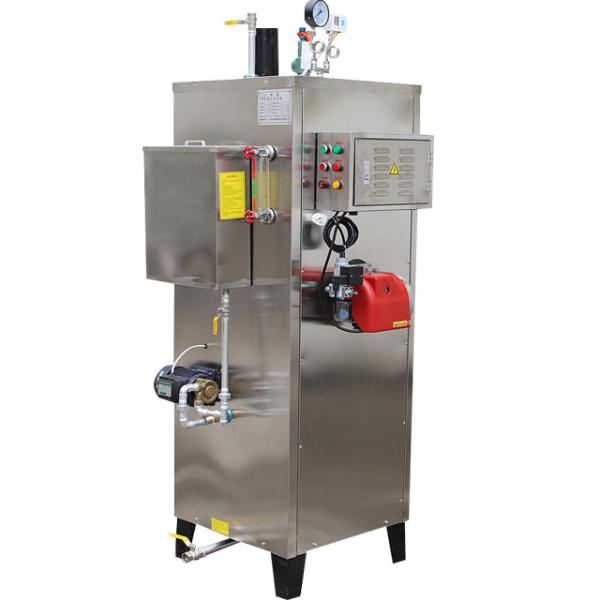

Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Specifications
Place of Origin :
China
Brand Name :
ENLIGY
Price :
$3,299.00/Sets 1-99 Sets
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops
After Warranty Service :
Video technical support, Online support, Spare parts
Local Service Location :
Kyrgyzstan
Showroom Location :
Kyrgyzstan
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
ENLIGY
Condition :
New, New
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Pressure :
High Pressure
Style :
VERTICAL
Fuel :
Gas,propane,LPG,liquefied gas
Output :
Steam
Dimension(L*W*H) :
800*760*2160mm
Weight :
350 kg
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Key Selling Points :
Energy Saving, High thermal efficiency
Product name :
propane steam generator
Design fuel :
Diesel Oil, Gas, LPG, Liquefied gas
Capacity :
100kg( customization acceptable)
Material :
Special Boiler Steel Plate
Thermal efficiency :
95%
Application field :
Greenhouse Heating
Product :
100kg/h clean steam generator,steam generator steam
Voltage :
380V
Application :
Industrial Production, car engine cleaning
Fuel consumption :
7.5KG/H
Description

Propane Natural Gas Steam Boiler 0.7Mpa High Pressure 100kg For Hotel

Propane Steam Generator Wow 100kg Italy Electric Steel Style Industrial Controller School Plate Sales Hotel
Comprehensive Introduction
The gas steam generator produces pure steam by firing gas (including natural gas,liquefied gas, LPG, propane).The main components are gas burner, water tank, water-feeding pump, controlling system, furnace, pressure controller, pressure gauge, safety valve, sensor of water level. Comparing to traditonal steam boiler(coal, wood,pellet,biomass fired), gas steam boiler is more eco-friendly and efficent, without men on duty
The gas steam boiler is widely used in food cooking, clothes flat ironing, industrial cleaning, equipment cleaning, sauna room, sterilization, central heating etc.
Parameters
Evaporation 100 KG/H
Steam pressure 0.7Mpa
Designed fuel diesel, gas, liquefied gas
Steam temperature 170 Degree celsius
Gas consumption 8.5m3/h(natural gas)
7 m3/h(liquefied gas)
7KG/h(diesel)
Voltage 380 V
Water tank volume 49L
Water pressure 1.05 Mpa
Waste outlet diameter DN40
Steam outlet diameter DN20
Smoke outlet diameter 159mm
Weight 350 KG
Dimension 800*760*2180 mm
Our advantages
1.High energy-saving efficiency
The gas steam generator adopts high-quality burner, designed with vertical 2 return-trip structure, the burning level is higher with over 90% thermal efficiency .
2. High steam capacity
The gas powered steam generator can output steam in 10 minutes and evaporates 300kg/h.
3. Easy to operate
The gas powered steam generator with steam capacity 300kg/h are smart fully automatic operated with accurate computerized circuit board.All functions are dispalyed on the control panel, the working process like steam temperature and pressure adjustable and controllable.
4. Highly safe
Safer than ever with 6 protection systems: pressure regulator system, Overpressure automatic protection, water lack protection, dry-fire protection, anti-explosion system.
5.With national patent certificate
The gas steam boiler is patented product with China patent certificate, guaranting the quality and cost performance, always environment-friendly with few noise and no smog.

Advanced conponents
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel

Germany burner Saving fuel consumption 30% off

Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel

Easy-operate panel
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel

Pressure controller and gauge
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel

Electric circuit board
Propane natural gas steam boiler 0.7Mpa High Pressure 100kg for Hotel
Pressure gauge
Safety valve
