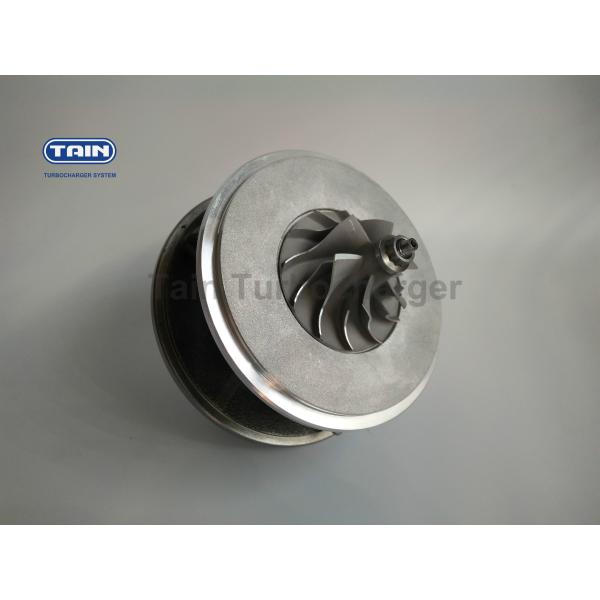

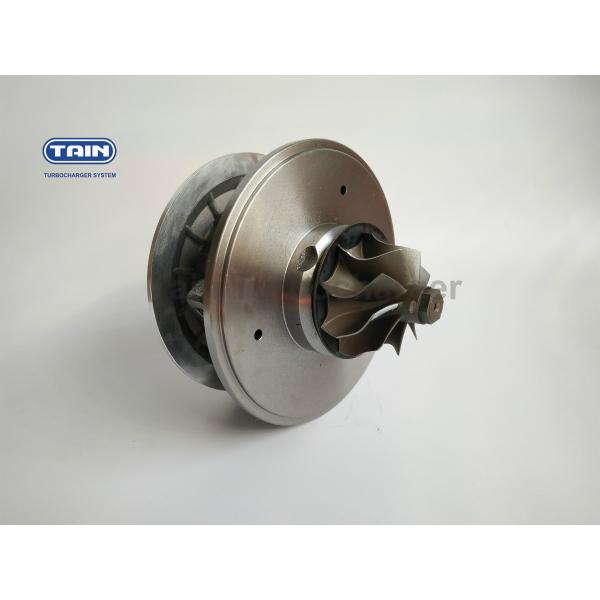

Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3
Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3
Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3
Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3
Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3
Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3
Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3
Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3
Specifications
Brand Name :
Tain turbo
Model Number :
GT1749V
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, D/P
Supply Ability :
1000 pcs per month
Delivery Time :
3-5 work days
Packaging Details :
Neutral Packing
Product Name :
turbocharger cartridge / turbo chra
Model :
GT1749V
Turbo No. :
454231 / 454183
Chra No. :
433395-0007
Application 1 :
Volkswagen Golf
Certificate :
ISO9001:2000
Description

Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI

A3

DESCRIPTION

►Model :GT1749V

►TURBO NO.

454183-0001 454183-0002 454183-0003 454195-0001 454232-0001
454232-0003 454232-0004 454232-0005 454232-0009 701855-0001
701855-0005 713672-0001 713672-0002 713672-0003 713672-0004
713672-0005 713672-0006 713672-0007 768329-0001 768331-0001
768331-0002

►CHRA No. :703890-0012

►OE No.: 028145702SV500 038253019CV225 03G253016N 038253019A

038253019AV200 03G253016K 028145702E 38253019 038145702D

038145701L 028145702R

►Balancing Test : <0.5Mg.mm / 150000RPM

►Condition : Brand new

►FITTED CARS : Seat Alhambra TDI

Audi A3

Volkswagen Leon / Golf / Beetle TDI / Sharan TDI

Skoda Octavia Tdi

Ford Galaxy

►Condition

This is a high quality brand new CHRA (cartridge or core assembly) of a turbocharger.

It is balancing tested with a qualified report.

It is carefully tested,without damage and rust.

It is carefully cleaned and packed with safety package.

►APPLICATION

Turbo No. Application Power OEM Engine Code
701855-0005 Seat Alhambra TDI 90HP 028145702SV500 IZ/ANU/AHU
713672 Audi A3 81-85KW 038253019CV500 PU UI
　 Volkswagen Leon 81-85KW 038253019CV225 PD UI
　 Volkswagen Golf 81-85KW 038253016N PD UI
　 Skoda Octavia Tdi 66KW 03G253016N ALH AHF
　 Volkswagen Golf Tdi 81KW 03G253016N ALH AHF
　 Volkswagen Beetle TDI 66KW 03G253016N ALH AHF
768329-0001 Audi A3 85KW 038253019A PQ34/35
　 Skoda Octavia Tdi 85KW 038253019AV200 PQ34/35
　 Volkswagen Golf 85KW 03G253016K PQ34/35
454183-0001 Ford Galaxy 81KW 028145702E TDi110
　 Seat Alhambra TDI 81KW 028145702E TDi110
　 Volkswagen Sharan TDI 81KW 028145702E TDi110
454195-0001 Audi A3 110KW 38253019 PU UI
　 Audi A3 110KW 038145702D AFN
454231 Audi A4 85KW 038145701L ATJ AJM AVB
　 Audi A6 85KW 028145702R ATJ AJM AVB
　 Volkswagen Passat 85KW 028145702R ATJ AJM AVB

Turbine wheels & compressor wheels size information

Turbine Wheels
(A) Inducer (B) Exducer Blades
36 43 9
Compressor Wheels
(A) Inducer (B) Exducer Blades
33 49 6/6

Material

turbine wheel: K418

compressor wheel: C355

bearing house: HT250 Gary iron

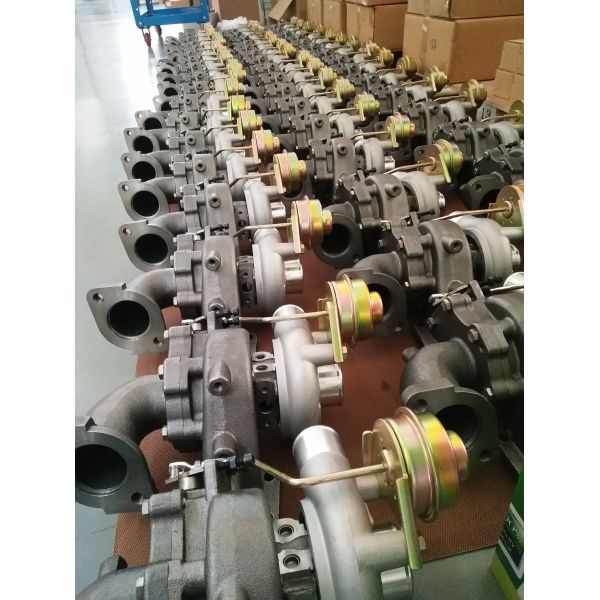

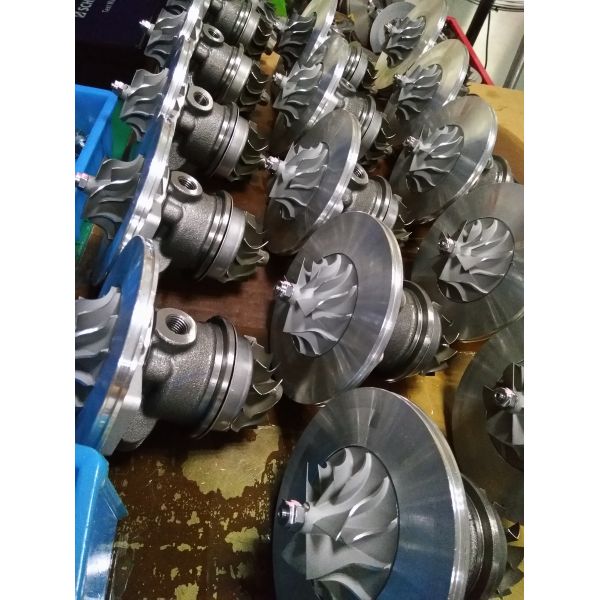

PRODUCT SHOW

Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3

WHO WE ARE

Tain turbo is a specialized turbocharger and turbo parts manufacturer in Wuxi,China.

Established in 1997,covering over 4000 square meters.Tain devote ourselves to offer the best

service.Tain currently supply more than 1000 types of cartridges and also other turbo parts.Tain is not

just a manufacturer,but also a supplier of customized OEM products.Thanks to our professional

technicians and years of experience,Tain wins a good reputation,high evaluation among our customers.

Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3

OTHER MODELS WE SUPPLY

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E

KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50

Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410

Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V

IHI: RHB3,RHF3,RHF4,RHF5,

Turbocharger Cartridge GT1749V 454183 454232 for Volkswagen Golf / AUDI A3
