Renault Megane / Volvo S40 Turbocharger Cartridge GT1749V 708639-0002 703890-0012
Renault Megane / Volvo S40 Turbocharger Cartridge GT1749V 708639-0002 703890-0012
Renault Megane / Volvo S40 Turbocharger Cartridge GT1749V 708639-0002 703890-0012
Renault Megane / Volvo S40 Turbocharger Cartridge GT1749V 708639-0002 703890-0012
Renault Megane / Volvo S40 Turbocharger Cartridge GT1749V 708639-0002 703890-0012
Renault Megane / Volvo S40 Turbocharger Cartridge GT1749V 708639-0002 703890-0012
Specifications
Brand Name :
Tain turbo
Model Number :
GT1749V
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, D/P
Supply Ability :
1000 pcs per month
Delivery Time :
3-5 work days
Packaging Details :
Neutral Packing
Product Name :
turbocharger cartridge / turbo chra
Model :
GT1749V
Turbo No. :
708639-0002
Chra No. :
703890-0012
Application 1 :
Renault Megane
Application 2 :
Volvo S40
Application 3 :
Nissan Primera
Description

Renault Megane Volvo S40 Turbocharger Cartridge GT1749V 708639-0002

703890-0012

DESCRIPTION

Model

 GT1749V
Turbo NO.

708639-0002 708639-0003 708639-0004

708639-0005 708639-0006 708639-0007

708639-0008 708639-0010 708639-5010S

Chra NO.

 703890-0012
OE NO.

14111-Aw301 8200369581 8200332125

8200110519 8200110519A

Material

 K418

Balancing Test

 <0.5Mg.mm / 150000RPM

Fit For Car → NISSAN Primera / Megane / Espace / Laguna

→ VOLVO S40 / V40

APPLICATION

Turbo No. Application Power OEM Engine Code
708639 Nissan Primera 88KW 14111-Aw301 F9Q D4192T3
708639 Renault Megane 88KW 8200369581 F9Q D4192T3
708639 Renault Espace 88KW 8200332125 F9Q D4192T3
708639 Renault Laguna 88KW 8200110519 F9Q D4192T3
708639 Volvo S40 88KW 8200110519A F9Q D4192T3
708639 Volvo V40 88KW 8200110519A F9Q D4192T3

Turbine wheels & compressor wheels size information

Turbine Wheels
(A) Inducer (B) Exducer Blades
37.5 43 9
Compressor Wheels
(A) Inducer (B) Exducer Blades
34.7 49 6/6

Material

Turbine wheel K418
Turbine shaft 42CrMo
Compressor wheel C355(Aluminum casting)
Bearing house HT250(Gary iron)
Journal bearing CW713R
Thrust bearing Brass bar
Thrust collar & spacer 42CrMo

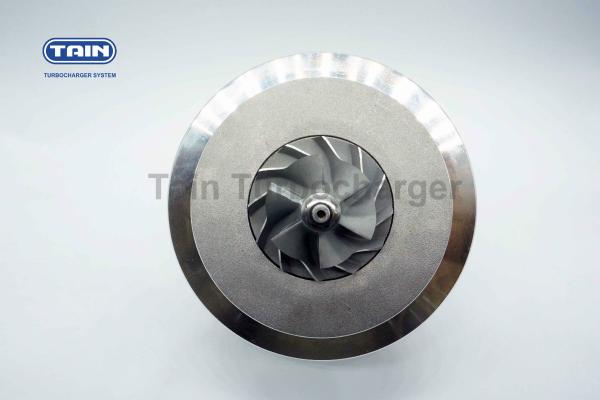

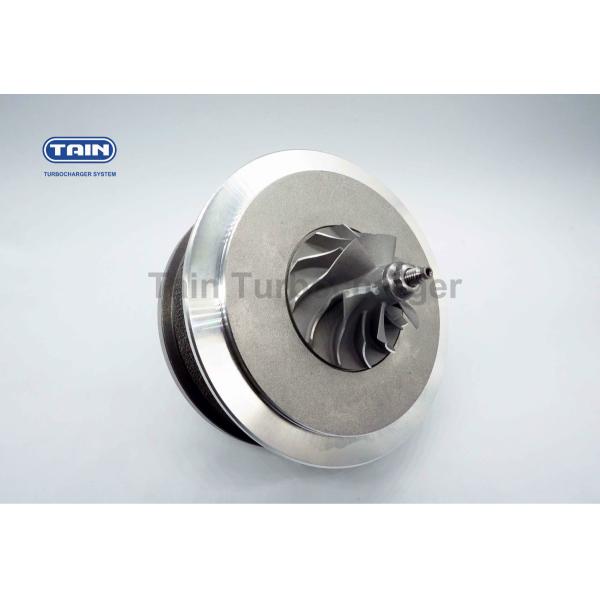

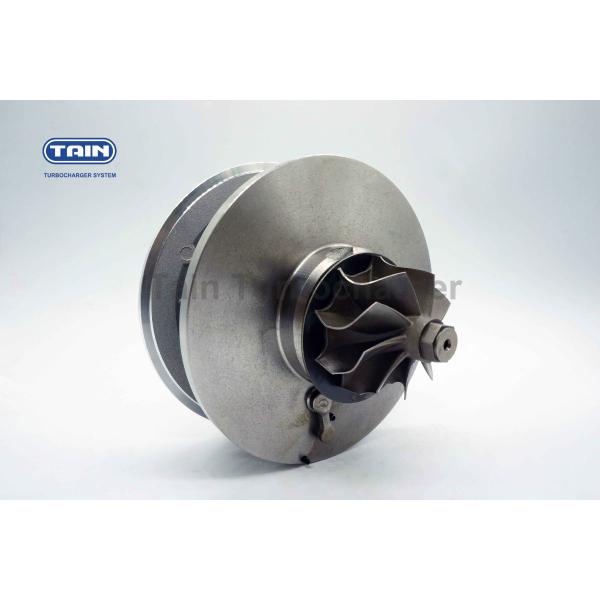

PRODUCT SHOW

Renault Megane / Volvo S40 Turbocharger Cartridge GT1749V 708639-0002 703890-0012Renault Megane / Volvo S40 Turbocharger Cartridge GT1749V 708639-0002 703890-0012

WHO WE ARE

Tain turbo is leading manufacturer of aftermarket turbochargers and parts in Wuxi,China.

Tain was established in 1997,covering over 4000 square meters.

Tain has many advanced equipments like MAKINO L2 5-axis equipment,SCHENCK balancing

equipment,OKUMA CNC,electron beam welding equipment,etc.

We are professional on turbo chras with billet compressor wheels.We also sell other turbo parts like turbine wheel,compressor wheel,repair kits and nozzle ring.Every cartridge is tested by SCHENCK TB-Sonio,every shaft&wheel and compressor wheel is tested by SCHENCK Xano.

Tain only supply products with high quality and performance,and thanks to our professional technicians and years of experience,Tain wins a good reputation among our customers.

Renault Megane / Volvo S40 Turbocharger Cartridge GT1749V 708639-0002 703890-0012

WHAT WE SUPPLY

Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.

Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.

Model cover :

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E

KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50

Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410

Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V

IHI: RHB3,RHF3,RHF4,RHF5,

MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035

Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
