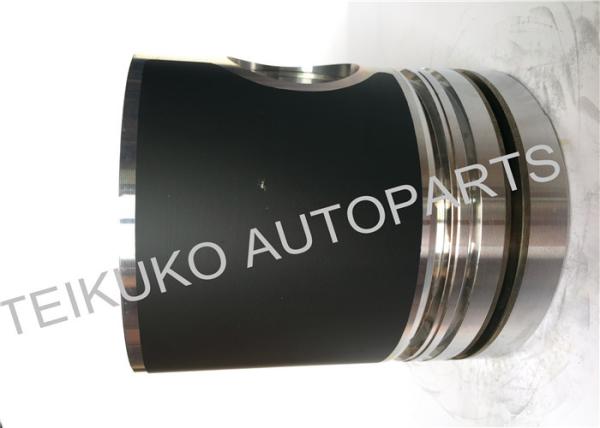

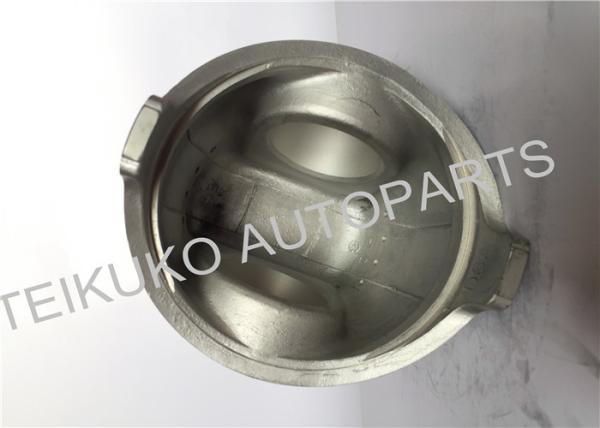

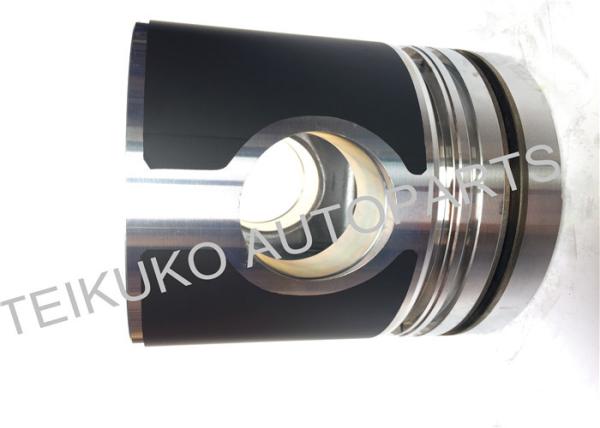

Truck Bus 10PA1 Diesel Engine Piston 1-12111-154-1 Diameter 115.0mm
Truck Bus 10PA1 Diesel Engine Piston 1-12111-154-1 Diameter 115.0mm
Truck Bus 10PA1 Diesel Engine Piston 1-12111-154-1 Diameter 115.0mm
Truck Bus 10PA1 Diesel Engine Piston 1-12111-154-1 Diameter 115.0mm
Truck Bus 10PA1 Diesel Engine Piston 1-12111-154-1 Diameter 115.0mm
Truck Bus 10PA1 Diesel Engine Piston 1-12111-154-1 Diameter 115.0mm
Truck Bus 10PA1 Diesel Engine Piston 1-12111-154-1 Diameter 115.0mm
Truck Bus 10PA1 Diesel Engine Piston 1-12111-154-1 Diameter 115.0mm
Specifications
Brand Name :
JTP
Model Number :
10PA1
Certifiion :
ISO9001:2008;ISO/TS16949:2009
Place of Origin :
China
MOQ :
6cps
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
5000pcs per month
Delivery Time :
5~10days
Packaging Details :
Packed in carton firstly,and then reinforced with green sack for outer packing
OEM :
1-12111-154-1
Size :
STD
Car make :
Isuzu
Material :
Aluminum
Length :
113.3mm
Diameter :
115.0mm
Piston comp :
75.3mm
Piston pin size :
38x80mm
Piston ring size :
3.0+2.5+6.0mm
Description

Truck bus car 10PA1 Diesel engine piston and liner kit OEM: 1-12111-154-1

Specifiions:

10PA1
Appliion: TRUCK BUS
No. CyI: 10
Diameter: 115.0 MM
Piston OEM No. Compress Height Total Length Pin Size Feature
1-12111-154-1 75.3 113.3 38x80 w/al-fin
Piston Ring OEM No. Size1 Size2
1-12181-016-0 3.0+2.5+6.0
Cylinder Liner OEM No. Size Flange
1-11261-063-0 115.0x130.0x219.0 141.7x10+1.25
Engine Bearing OEM No. Main Bearing Con Rod Bearing Bush
1-11510-003 1-12271-008 1-12251-001
Engine Valve (IN) OEM No. Head Diameter Stem Diameter Total Length
1-12551-030-0 48.0 10.0 159.0
Engine Valve (EX) OEM No. Head Diameter Stem Diameter Total Length
1-12552-015-0 46.1 10.0 159.0
Valve Seat OEM No.
Valve Guide/Sub Parts OEM No.

Product Range:

TYPE ENGINE MODEL OEM REF

NO.CYL

 BORE LENGTH COMP.H DIA
ISUZU C240PK 　 4 86 84.5 51.5 27
ISUZU 4JA1 8-94152712-1 4 93 87.6 47.8 31
ISUZU 4JB1 8-94152711-0 4 93 92 51.8 31
ISUZU 4BD1 8-94422975-1 4 102 98 58.9 35
ISUZU 4BC2 5-12111-230-4 4 102 98 58.9 35
ISUZU 6BB1 5-12111-013-0 6 102 112.3 62.7 35
ISUZU 6BD1T 5-12111-068-2 6 102 104.3 58.7 35
ISUZU 4BE1 8-94438989-1 4 105 95.7 56.4 35
ISUZU 6BG1 1-12111-323-2 6 105 95 55.5 35
ISUZU 6BF1 1-12111-345-0 6 105 110 58.75 35
ISUZU 10PA1 1-12111-154-1 10 115 113.2 75.2 38
ISUZU 10PB1 1-12111-217-0 10 115 104 67.8 38
ISUZU 10PC1 1-12111-419-1 10 119 104 67.7 38
ISUZU 10PD1 1-12111-549-3 10 119 106.5 67.5 43
ISUZU DH100 9-12111-742-3 6 120 150.83 77.8 45
ISUZU 6QA1 1-12111-388-1 6 125 136 83 46
ISUZU 6RB1 1-12111-437-0 6 135 142.9 82.1 50
ISUZU 6BG1(3R) 　 6 105 94.5 35 　
ISUZU 6BG1(4R) 　 6 105 94.2 35 　
ISUZU 4HG1 8-97183666-0 4 115 104.4 36 　
ISUZU 6SD1 1-12111-569-0 6 120 117 43 　
ISUZU 6SD1 　 6 120 117 43 　
ISUZU DA120 　 6 100 125 34 　
ISUZU DA640 　 6 102 125 36 　
ISUZU 6HE1 　 6 110 119.8 40 　
ISUZU 4HF1 8-97095-585-1 4 112 94.5 36 　
ISUZU 　 8-97176-655-0 　 　 　 　 　
ISUZU 4HF1T 5-87813-391-0 4 112 94.5 36 　
ISUZU 　 8-97176-656-0 　 　 　 　 　

FAQ:

Q1: What does your factory produce?

A: Engine parts,such as piston, piston rings, cylinder liner,engine valve ,guide,head gasket ,

full gasket. etc.
Q2: Do you have any new product?
A:YES,we also have other Engine parts.
Q3: What payment terms do you accept?

A:We accept T/T 30%deposit before produce and 70% TT Payment before shipment.We accept

L/C if the amount is more than 50,000 USD
Q4: If we don't find what we want on your website, what should we do?

A: You can email us the descriptions and pictures of truck parts of you need, we will check whether

we have them.We also can accept the customizing products or processing to you according to sample.
Q5: Can we buy 1 pc of truck parts for quality testing?
A: Yes, we are glad to send 1pc item for quality testing if we have the truck parts of you need in stock
Q6: Do you accept OEM&ODM package?
A : Yes, we accept for sure.
Q7: Why we should choose your products?

A: We have more than 10 years offline export experience in this industry, and we always keep try to

offer best service to our customer before& after sale.
Q8: If i have more questions ,who should i contact to ?

A : Pls feel free to contact Mr Qiu with what’s app :00861380888182, we are looking forward to

your inquiry!

6BB1 PISTON PICTURE AS BELOW:

​

Truck Bus 10PA1 Diesel Engine Piston 1-12111-154-1 Diameter 115.0mm

We also have a range of other spare parts for your choose:

Truck Bus 10PA1 Diesel Engine Piston 1-12111-154-1 Diameter 115.0mm


WELCOME YOUR ENQUIRY, WE WILL ALWAYS BE HERE SERVICE FOR YOU!
