36*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-0
36*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-0
36*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-0
36*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-0
36*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-0
36*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-0
36*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-0
36*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-0
Specifications
Brand Name :
YJL
Model Number :
DA640
Certifiion :
ISO9001:2008;ISO/TS16949:2009
Place of Origin :
China
MOQ :
6pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
2000pcs per month
Delivery Time :
One month or one week if we have stock
Packaging Details :
Packed in carton firstly,and then reinforced with green sack for outer packing
OEM :
13216-1900
Pin size :
36*86mm
Dia :
102mm
Length :
125mm
Comp. H :
68mm
No. of dia :
6
Description

Diesel engine piston for DA640 1-12111-1220 / 1-12111-740-0 ISUZU engine parts

Specifiions:

ISUZU
DA640
Appliion: BUS
No. CyI: 6
Diameter: 102.0 MM
Piston OEM No. Compress Height Total Length Pin Size Feature
1-12111-740-0 68.0 125.0 36x86
Piston Ring OEM No. Size1 Size2
1-12181-033-0 2.5+2.5+2.5+5.0
Cylinder Liner OEM No. Size Flange
9-11261-288-0 102.0x113.0x228.0 119.0x8.0
Engine Bearing OEM No. Main Bearing Con Rod Bearing Bush
9-11510-136 9-12271-146 9-12251-084
Engine Valve (IN) OEM No. Head Diameter Stem Diameter Total Length
1-12551-002-0 45.5 10.0 144.0
Engine Valve (EX) OEM No. Head Diameter Stem Diameter Total Length
1-12552-007-0 42.0 10.0 144.0

Description:

A series of engine models for ISUZU as below, there are many models not include in this sheet, pls also feel free enquiry from us.

ISUZU C240PK 　 4 86 84.5 51.5 27
ISUZU 4JA1 8-94152712-1 4 93 87.6 47.8 31
ISUZU 4JB1 8-94152711-0 4 93 92 51.8 31
ISUZU 4BD1 8-94422975-1 4 102 98 58.9 35
ISUZU 4BC2 5-12111-230-4 4 102 98 58.9 35
ISUZU 6BB1 5-12111-013-0 6 102 112.3 62.7 35
ISUZU 6BD1T 5-12111-068-2 6 102 104.3 58.7 35
ISUZU 4BE1 8-94438989-1 4 105 95.7 56.4 35
ISUZU 6BG1 1-12111-323-2 6 105 95 55.5 35
ISUZU 6BF1 1-12111-345-0 6 105 110 58.75 35
ISUZU 10PA1 1-12111-154-1 10 115 113.2 75.2 38
ISUZU 10PB1 1-12111-217-0 10 115 104 67.8 38
ISUZU 10PC1 1-12111-419-1 10 119 104 67.7 38
ISUZU 10PD1 1-12111-549-3 10 119 106.5 67.5 43
ISUZU DH100 9-12111-742-3 6 120 150.83 77.8 45
ISUZU 6QA1 1-12111-388-1 6 125 136 83 46
ISUZU 6RB1 1-12111-437-0 6 135 142.9 82.1 50
ISUZU 6BG1(3R) 　 6 105 94.5 35 　
ISUZU 6BG1(4R) 　 6 105 94.2 35 　
ISUZU 4HG1 8-97183666-0 4 115 104.4 36 　
ISUZU 6SD1 1-12111-569-0 6 120 117 43 　
ISUZU 6SD1 　 6 120 117 43 　
ISUZU DA120 　 6 100 125 34 　
ISUZU DA640 　 6 102 125 36 　
ISUZU 6HE1 　 6 110 119.8 40 　
ISUZU 4HF1 8-97095-585-1 4 112 94.5 36 　
ISUZU 　 8-97176-655-0 　 　 　 　 　
ISUZU 4HF1T 5-87813-391-0 4 112 94.5 36 　
ISUZU 　 8-97176-656-0 　 　 　 　 　

Competitive Advantage:

1. 100% New and quality guaranteed

2. in stock & fast delivery

3. full range items covering

4. 1 year Waranty

5. Service: most professional, efficient and reliable service

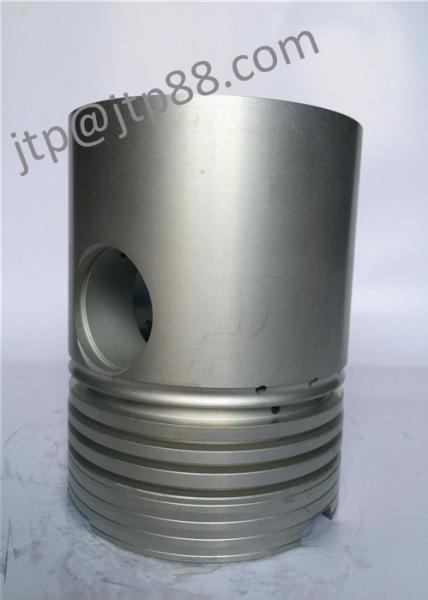

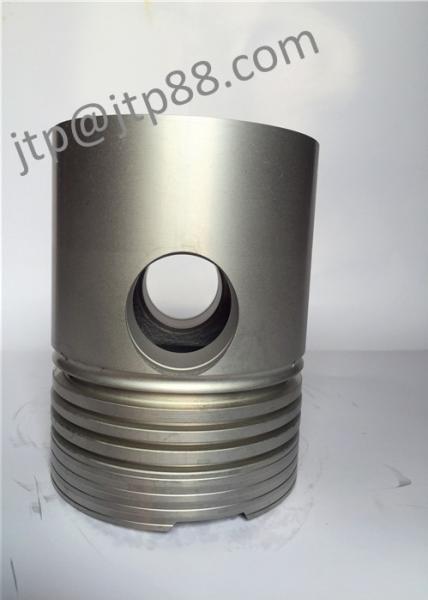

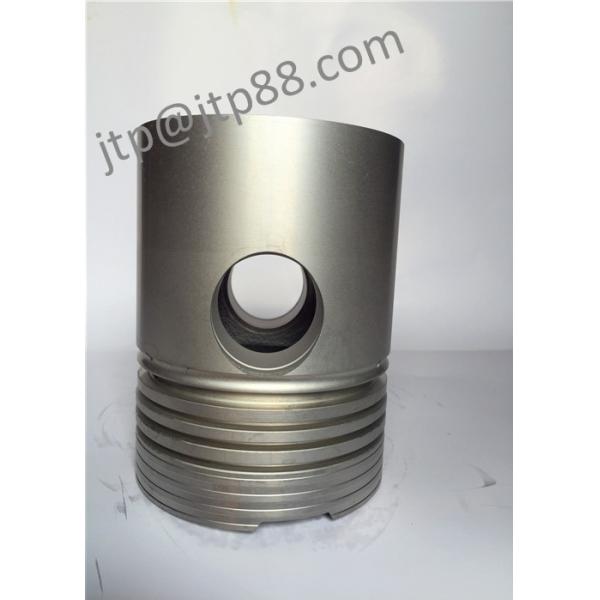

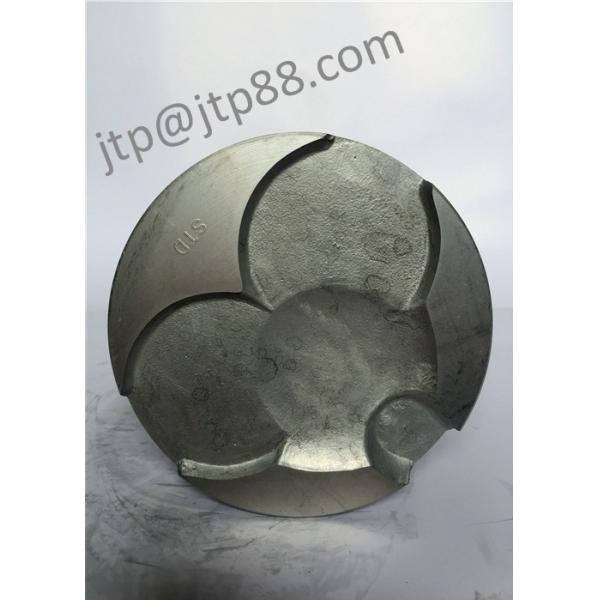

DA640 PISTON SET PICTURE AS BELOW:

36*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-036*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-0

We also deal with other spart parts:

36*86mm High Compression Pistons For Cars 1-12111-1220 / 1-12111-740-0

Welcome your enquiry at any time, we will always be here service for you!!!
