Specifications
Brand Name :
JTP
Model Number :
RE8
Certifiion :
ISO9001:2008;ISO/TS16949:2009
Place of Origin :
China
MOQ :
8pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
2000pcs per month
Delivery Time :
One month or one week if we have stock
Packaging Details :
Packed in carton firstly,and then reinforced with green sack for outer packing
OEM :
12011-96009
Number of cylinder :
8
Bore :
135mm
COMP.H :
78.5mm
Length :
137mm
Pin size :
48mm
Description

Auto parts bore 135mm RE8 engine piston 12011-97107 witth ALFIN for UD Truck

SPECIFIION

E-Model OEM NO Piston Size Pin size Ring Feature
Dia GL KH Dia Length
RE8

12011-97107

 135 137 78.5 48 116 3 Alfin
3
5



Description:
A series of engine models for NISSAN as below, there are many models not include in this sheet, pls also feel free enquiry from us.

NISSAN FE6 12011-Z5801 6 108 103.5 65.5 36
NISSAN FE6T 12011-Z5768 6 108 103.5 65.5 36
NISSAN NE6T 12011-95074G 6 110 110.3 68.3 36
NISSAN NE6TA 　 6 110 110.3 68.3 36
NISSAN PD6 12011-96007 6 125 132 81 46
NISSAN PD6T 12011-96009 6 125 132 82 46
NISSAN PE6 12011-96518 6 133 132 82 46
NISSAN PE6T 12011-96565 6 133 132 82 46
NISSAN RD8 12011-97014 8 135 137.3 82 46
NISSAN RE8 　 8 135 137 78.5 46
NISSAN RF8 12011-97165 8 138 137 78.5 46
NISSAN 　 12011-97161 　 　 　 　 　



1) Common material: Aluminum Alloy (lighter in weight and higher thermal conductivity);Senior Cast Iron (heavier in weight, greater strength and resistance to wear); Heat-resisting Steel, Hypereutectic Al-Si Alloy, Hypoeutectic Al-Si Alloy, Eutectic Al-Si Alloy, Multi-Cast Iron and Ductile-Cast Iron etc.

2) Produce process: Casting, Forging, Melted Metal Squeezing.
3) Piston features: Phosphating, Top Oxidization, Top Molybdenium Disulfide, Sn(tin)Plated on Skirt, Graphite on Skirt, Alfin, Double Alfin, None Alfin, Steel Pieces, Drilling, Oil-cooling Channel, Three or Four Ring Grooves, Ceramic Spraying and Hard Iron Plating, etc.

4) Treatment: Sn Plated, Skirt Printing Graphite, Phosphating, Spray MoS2, Top Anodic Oxidation.


Diamond Forged Pistons RE8 , Pistons Car Part 12011-97107 Witth ALFIN
Diamond Forged Pistons RE8 , Pistons Car Part 12011-97107 Witth ALFIN

Competitive Advantage:
1. 100% New and quality guaranteed
2. in stock & fast delivery
3. full range items covering
4. 1 year Waranty
5. Service: most professional, efficient and reliable service

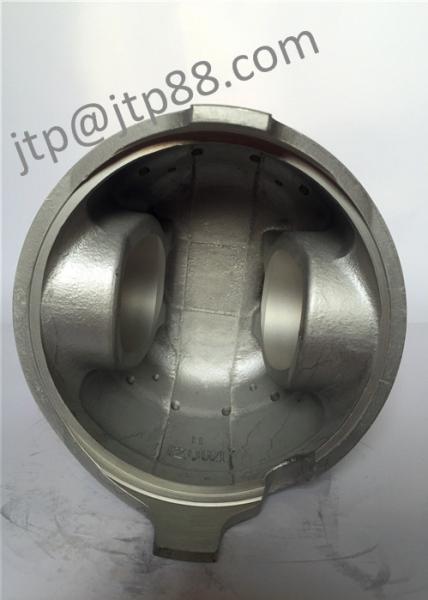

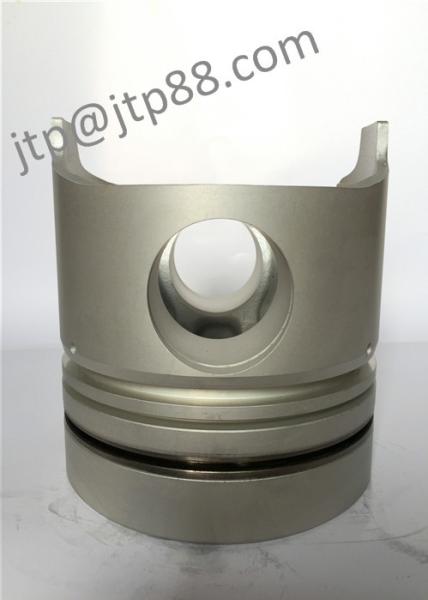

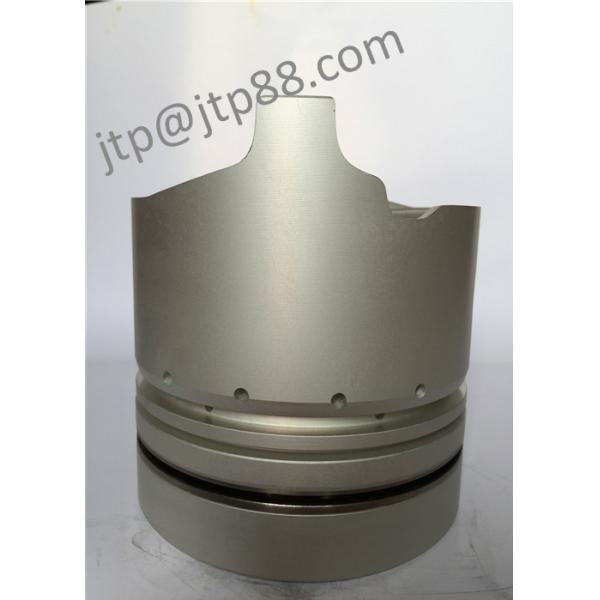

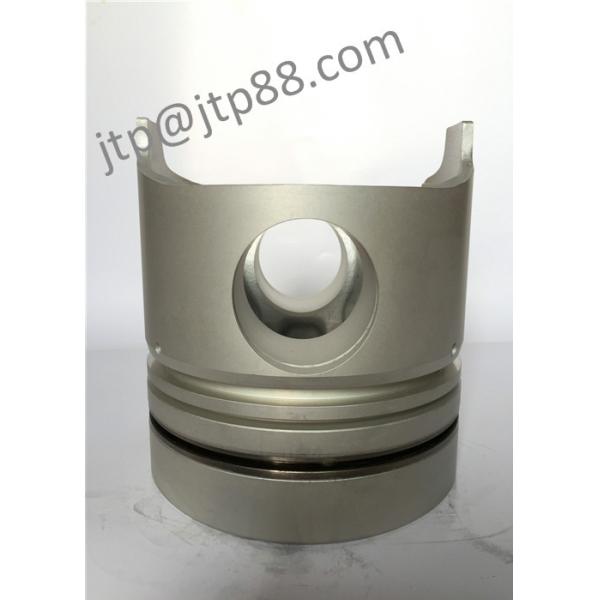

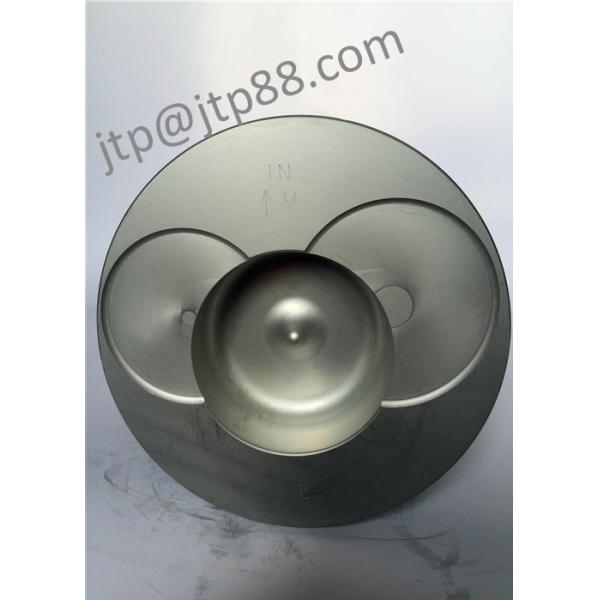

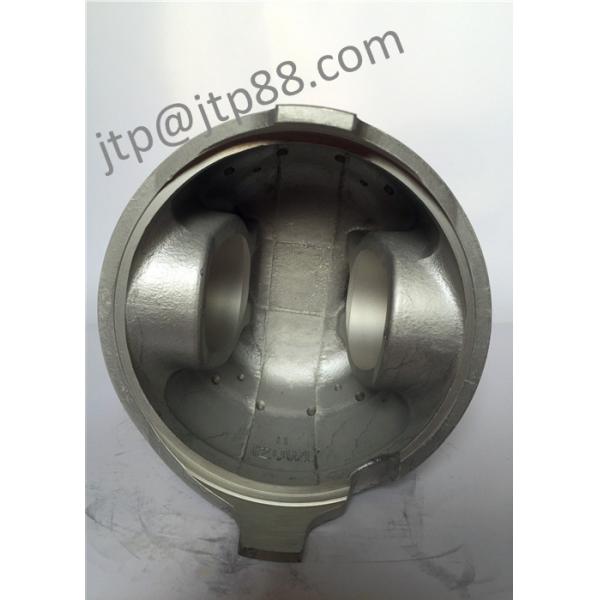

RE8 PISTON SET PICTURE AS BELOW:

Diamond Forged Pistons RE8 , Pistons Car Part 12011-97107 Witth ALFINDiamond Forged Pistons RE8 , Pistons Car Part 12011-97107 Witth ALFINDiamond Forged Pistons RE8 , Pistons Car Part 12011-97107 Witth ALFINDiamond Forged Pistons RE8 , Pistons Car Part 12011-97107 Witth ALFIN
OUR SHOW ROOM:

Diamond Forged Pistons RE8 , Pistons Car Part 12011-97107 Witth ALFINDiamond Forged Pistons RE8 , Pistons Car Part 12011-97107 Witth ALFIN
