196-8428 Hydraulic Gear Pump CAT 320C Excavator
196-8428 Hydraulic Gear Pump CAT 320C Excavator
196-8428 Hydraulic Gear Pump CAT 320C Excavator
196-8428 Hydraulic Gear Pump CAT 320C Excavator
196-8428 Hydraulic Gear Pump CAT 320C Excavator
196-8428 Hydraulic Gear Pump CAT 320C Excavator
Specifications
HS Code :
8413603190
Application :
CAT Excavator Hydraulic Pilot System
Supply Ability :
50000 Piece / Years
MOQ :
1
Packaging Details :
Neutral Export Carton
Pressure Rating :
Continuous: 21 MPa; Peak: 25 MPa
Cross Reference :
1968428, CA1968428, 196-8428-AFT, 173-1203
Working Fluid :
ISO VG46 / VG68 Hydraulic Oil
Compatible Engines :
CAT 3066, 3126B, C6.4, C7
Displacement :
18-22 cc/rev
Payment Terms :
T/T
Material :
Housing: Cast Iron; Body: Aluminum Alloy; Gears: High-Precision Steel; Seals: NBR/PTFE Composite
Rotation :
Clockwise (CW)
Shaft :
Splined, 13 Teeth
Operating Temp :
-20°C to +80°C
Mounting :
4-Bolt Standard SAE Flange
Warranty :
12 months
Port Type :
Suction & Delivery: BSP Thread
Package Size :
21 × 16 × 16 cm
Net Weight :
6.5 kg
Gross Weight :
8.0 kg
OEM Compliance :
1:1 Direct Replacement, meets CAT factory standards
Price :
$1-68
Place of Origin :
CHINA
Model NO. :
196-8428
Certification :
CE ISO9001
Delivery Time :
5-8 working days
Product Name :
Pilot Hydraulic Gear Pump
Compatible Equipment :
CAT 318C, 319C, 320C, 320D, 321C, 323D, 324D, 325C, 328D, 329D
Type :
External Fixed Displacement Gear Pump
Description
Product Description

The 196-8428 hydraulic gear pump is a direct replacement pilot/auxiliary pump for excavators. It provides stable oil pressure to support smooth hydraulic system operation. Made of high-strength cast iron housing, aluminum body and precision steel gears, it ensures low leakage and long service life. Compatible with CAT 320C, 320D, 318C, 325C models, this aftermarket pump meets OEM specifications for reliable performance under harsh construction conditions.

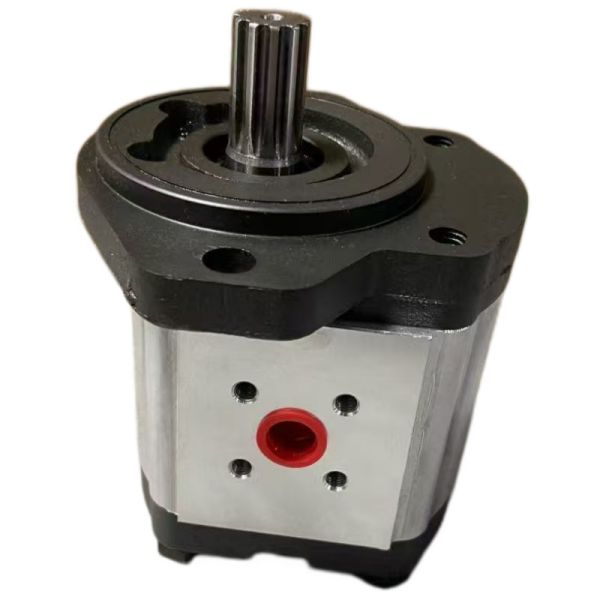

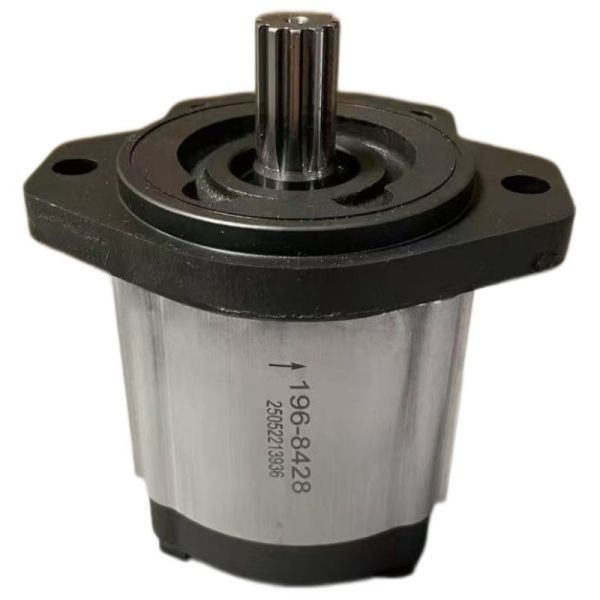

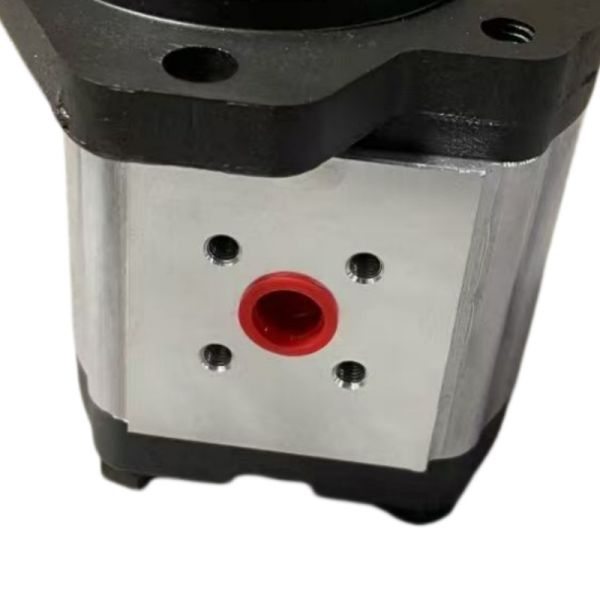

Products Photos
196-8428 Hydraulic Gear Pump CAT 320C Excavator
AttributeSpecification
Part Number196-8428
Cross Reference1968428, CA1968428, 196-8428-AFT, 173-1203
Product NamePilot Hydraulic Gear Pump
TypeExternal Fixed Displacement Gear Pump
MaterialHousing: Cast Iron; Body: Aluminum Alloy; Gears: High-Precision Steel; Seals: NBR/PTFE Composite
ApplicationCAT Excavator Hydraulic Pilot System
Compatible EquipmentCAT 318C, 319C, 320C, 320D, 321C, 323D, 324D, 325C, 328D, 329D
Compatible EnginesCAT 3066, 3126B, C6.4, C7
We can also provide the following model of Gear Pump:
Cross Part NumberNotes
196-8428OEM Standard Part Number (CAT 320C/320D Pilot Pump)
1968428Simplified Part Number (Aftermarket Listing Format)
CA1968428Standard Reference Number
173-1203Direct Fit Pilot Pump for CAT 320C/321C
194-6684Auxiliary/Pilot Pump for CAT 320D/323D
240-2998Equivalent Pilot Pump for CAT 320D/324D
196-8428-AFTAftermarket Replacement Version of 196-8428
200-3406Gear Pump Variant for CAT 320B/325C (Same Mounting Pattern)
191-6511Pilot Pump for CAT 318C/319C (Compatible Circuit)
250-8406Auxiliary Gear Pump for CAT 320 Series (Same Series Family)

If you can find the number you need, please contact our sales manager to check and confirm it!
