PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
Specifications
Appliions :
Excavator
Material :
Cast Iron / Aluminum Alloy (Pump Body), Alloy Stee
Tooth Flank :
Ground
Medium :
Hydraulic Oil (ISO Vg 32/46/68)
Certifiion :
CE
Place of Origin :
CHINA
Temperature Range :
-20°C ~ +80°C
Seal Material :
NBR / FKM / PU
Package Size :
18.00cm * 15.00cm * 12.00cm
Packaging Details :
Neutral Export Carton Packaging
Transport Package :
Neutral Carton / Wooden Case
Price :
$15-98
Shaft Type :
Cylindrical Shaft / Splined Shaft
Rotation :
Clockwise (Cw) / Counter-Clockwise (Ccw)
Model NO. :
PV21/PV22/PV23
Mesh Form :
External Gear Meshing
Structure Type :
Tandem / Double
Supply Ability :
50000/Years
HS Code :
8413602290
MOQ :
10
Specifiion :
PV21/PV22/PV23
Power :
Hydraulic
Delivery Time :
5-8 work days
Tooth Curve :
Involute
Payment Terms :
T/T
Package Gross Weight :
4.500kg
Type :
Tandem Hydraulic Gear Pump
Description
Product Description;

PV21 PV22 PV23 tandem charge pump adopts external meshing gear structure, serving as auxiliary charge power component for main hydraulic pump system. It continuously supplements hydraulic oil into closed loop system, stabilizes system inlet pressure and prevents main pump suction empty. Widely applied in hydraulic stations, injection molding machinery, metallurgical equipment and engineering machinery. Replacing defective pump solves main pump cavitation noise, insufficient system oil supply and unstable hydraulic pressure caused by gear abrasion or seal aging.

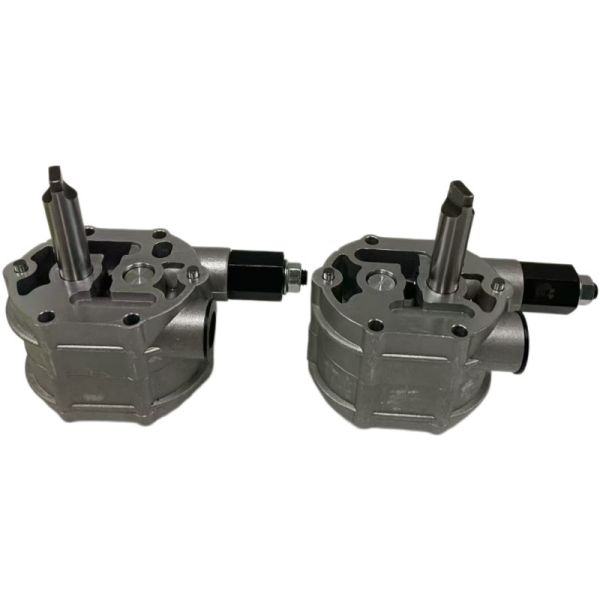

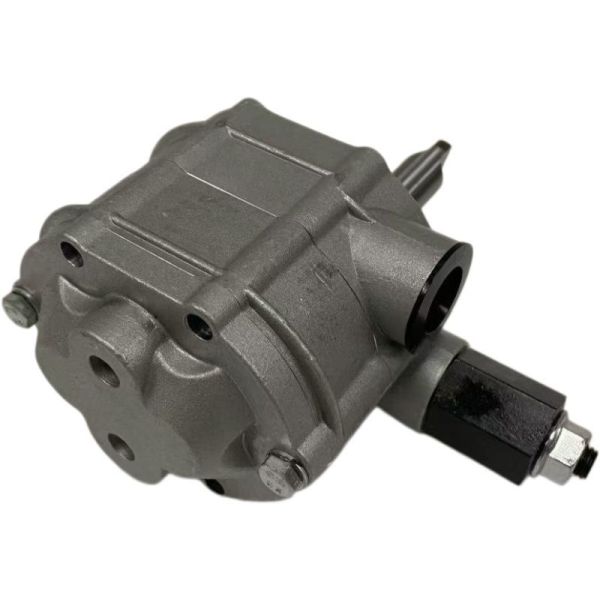

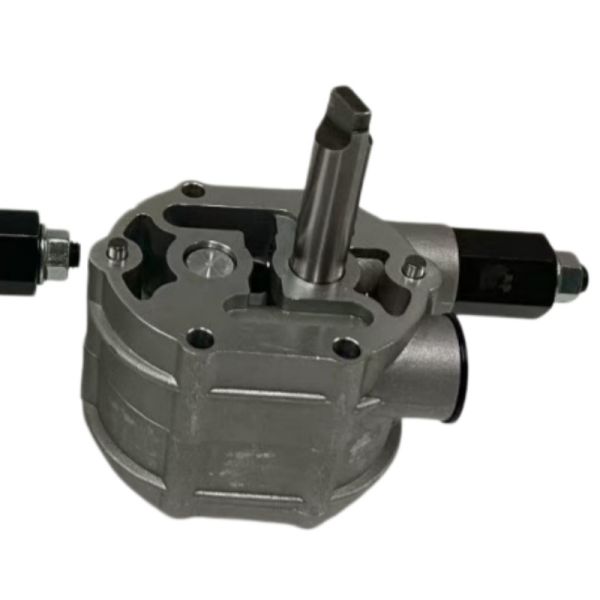

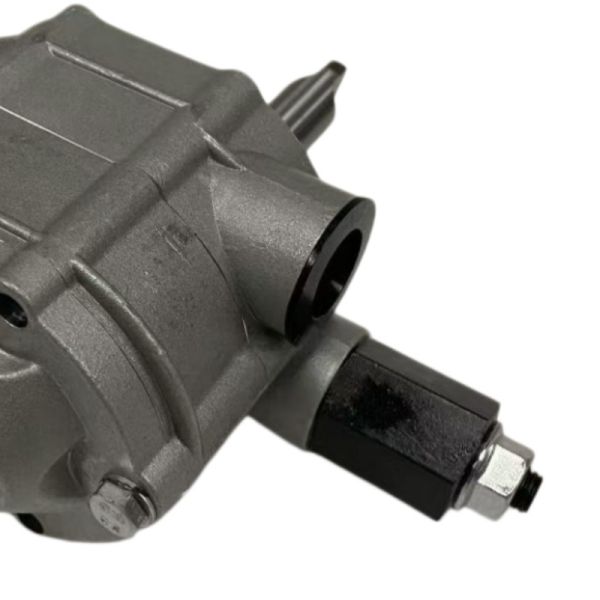

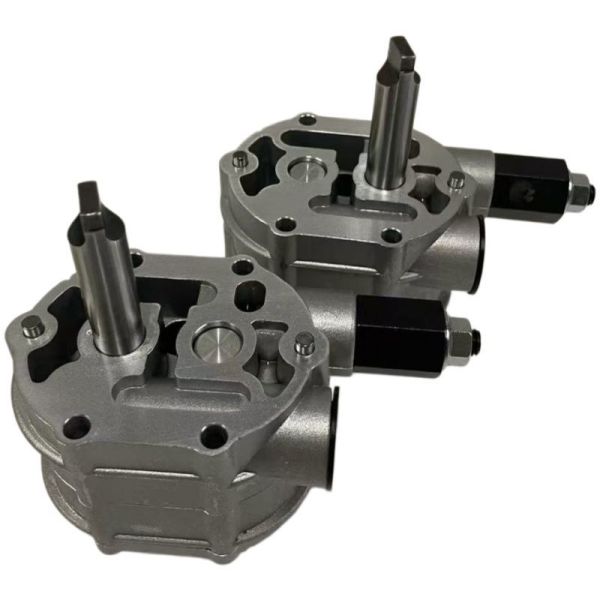

Products Photos;
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
Item Specifiion
Part Number PV21 PV22 PV23
Product Name Tandem External Meshing Charge Gear Pump
Structure External Gear Meshing + Tandem Integrated
Core Function Closed Hydraulic System Oil Charging Pressure Supplement
Main Material Cast Iron Housing Alloy Gear High Elastic Composite Seal
Applicable Industry Metallurgy Injection Molding Construction General Industrial Machinery
Package Individual Inner Box + Export Outer Carton
Warranty 12 Months
We can also provide the following model of Gear Pump:
Part Number Matched Main Pump Appliion Scene
PV21 Charge Pump PV21 Main Hydraulic Pump Small Injection Molder Mini Hydraulic Station
PV22 Charge Pump PV22 Main Hydraulic Pump Medium Engineering Machinery Metallurgical Auxiliary Equipment
PV23 Charge Pump PV23 Main Hydraulic Pump Large Heavy-duty Hydraulic Equipment Mine Machinery
PV24 Charge Pump PV24 Main Hydraulic Pump Ultra-large Custom Industrial Hydraulic System

If you can find the number you need, please contact our sales manager to check and confirm it!

Packing and shipping:
PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts PV21 PV22 PV23 Tandem Charge Pump External Meshing Gear Pump Industrial Equipment Parts
FAQ

lSSUES YOU MAY BE CONCERNED ABOUT
HERE IS THE ANSWER!

Q1: What is the core function of PV series charge pump?

A: Supplement hydraulic oil for closed loop main pump, stabilize inlet pressure and avoid pump empty suction.

Q2: What structure does this pump adopt?

A: External meshing gear design with tandem integrated layout.

Q3: Can it match different PV main pump models?

A: PV21/PV22/PV23 correspond matched main pump respectively for direct replacement.

Q4: Warranty period?

A: 12 months warranty for factory production defects.

Dear buyers,
Please read the remarks before ordering:

1, If you place order directly without any communiion with us,please remark the Part Number exactly you need if possible!
2, Normally would be sent in neutral package, if need orignal package please contact us before placing orders.
3, All the are blank new without program, if you want program please send us your Engine Serial Number and old code we will confirm whether the program available or not.

Thank you for attention!
