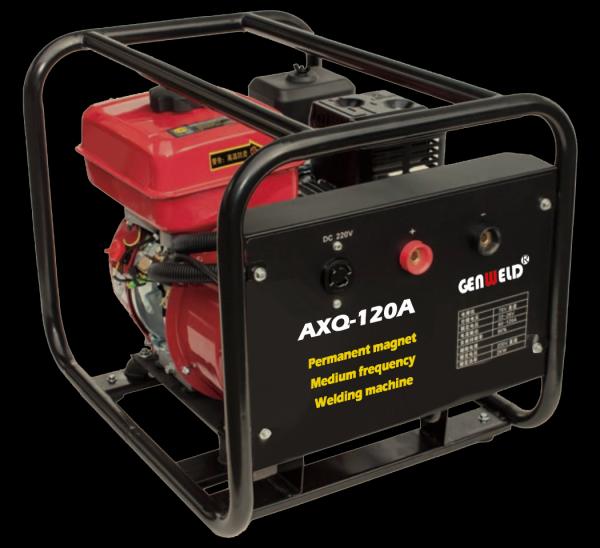

AXQ-120A Permanent Magnet Medium Frequency Welding Machine
AXQ-120A Permanent Magnet Medium Frequency Welding Machine
Specifications
Brand Name :
GENWELD
Model Number :
AXQ-120A
Place of Origin :
Chongqing, China
MOQ :
50
Payment Terms :
T/T, D/P
Supply Ability :
5000/unit/month
Delivery Time :
30-60 work days
Packaging Details :
570x 450x 480
Description
◆Permanent Magnet Medium Frequency Generator Welding Machine◆
This permanent magnet medium frequency generator welding machine was jointly developed by our company and professors and doctors from the School of Engineering and Technology at Southwest University. It is the first of its kind in China and has been granted multiple national patents. It is a project supported by the National Science and Technology Innovation Fund. This product has the following features:
1. Wide application range, suitable for professional oil and gas pipeline construction, railways, municipal pipeline networks, chemical plants, power plants, and steel mills for construction and emergency repairs.
2. Medium frequency three-phase rectification provides smooth current, excellent dynamic characteristics, and fast response speed (1-3ms), meeting various welding requirements and suitable for various acid and alkaline welding rods and argon arc welding operations.
3. Its permanent magnet technology offers a compact size, light weight, low iron loss, and high power efficiency, reaching 90%.
4. It eliminates the high failure rate of IGBTs (insulated gate bipolar transistors) and adopts a recessed control mode, greatly improving control system reliability.
5. Dual operating mode outputs meet the requirements of both welding and using small power tools.
6. This project has received support from the National Science and Technology Innovation Fund.
AXQ-120A Permanent Magnet Medium Frequency Welding Machine

model

Parameter name

AXQ-120A(Type I)
Welding method manual metal-arc welding
arc welder No-load voltage(V)65-70
working voltage(V) 22-28
Maximum welding current(A)120A
Current regulation range
(A)
The load duration rate is 60%
Welding rod range(Φ) 2.5-3.2
accessory
power supply		 Output voltage 120V/220V/240V
output 16A/9A/8A
Output power DC2kw/AC1.6kw/AC3kw
operative mode continuation
engine Power model 170F
Fuel volume(L) 3.6
Oil volume(L)0.6
Fuel model Lead-free gasoline for vehicles
The lubricating oil model is CD grade or S AE10W30
Engine power(HP) 7.5
Displacement(CC)223
Ignition method CDI
Start mode Manual
Net/gross weight(kg) 31/33.5

pack

 Packaging size(mm)570x 450x 480
