Specifications
Brand Name :
GENWELD
Model Number :
TW-T250AR
Place of Origin :
Chongqing, China
MOQ :
20
Payment Terms :
T/T,D/P
Description

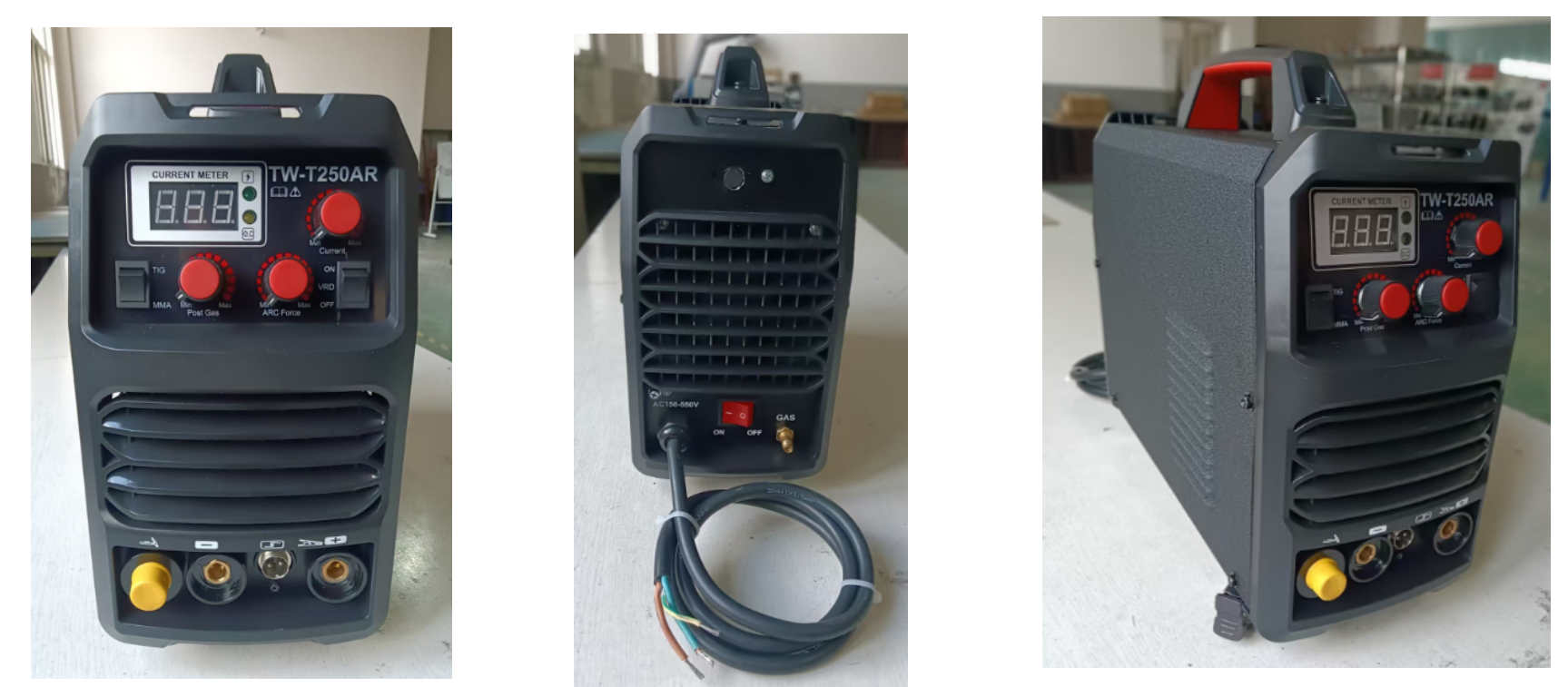

Manual TIG Welding Machine
Key Features
  • Current Control with Thrust Function
  • Rear Air Cooling System
  • Voltage Reduction Device (VRD)
  • Overheat Protection with Audible Buzzer
  • High Efficiency (85% Overall)
  • IP21S Protection Rating
Technical Specifications
Model TW-T250AR
Input Voltage AC 150-550V
Input Frequency 50/60 Hz
Open Circuit Voltage AC220V: 75V / AC380V: 65V
Maximum Output Current MMA: 180A, TIG: 190A
Maximum Output Voltage MMA: 27.2V, TIG: 17.6V
Overall Efficiency 85%
Load Rate @ 40℃ 80%-100%
Suitable Welding Electrodes 2.5/3.2/4.0 mm
Insulation Class F
Protection Level IP21S
Physical Specifications
Body Dimensions 400 * 170 * 340 mm
Packaging Dimensions 450 * 270 * 345 mm
Net Weight 7.9 kg
Gross Weight 10.95 kg
Included Accessories
Bonding Wire 1.6m / 35 sq. mm copper-clad aluminum / 10-25
Ground Wire 1.4m / 35 sq. mm copper-clad aluminum / 10-25
Welding Torch 2M TIG Split Gun with Copper Wire
Complete Machine Code 10020-00263-00
