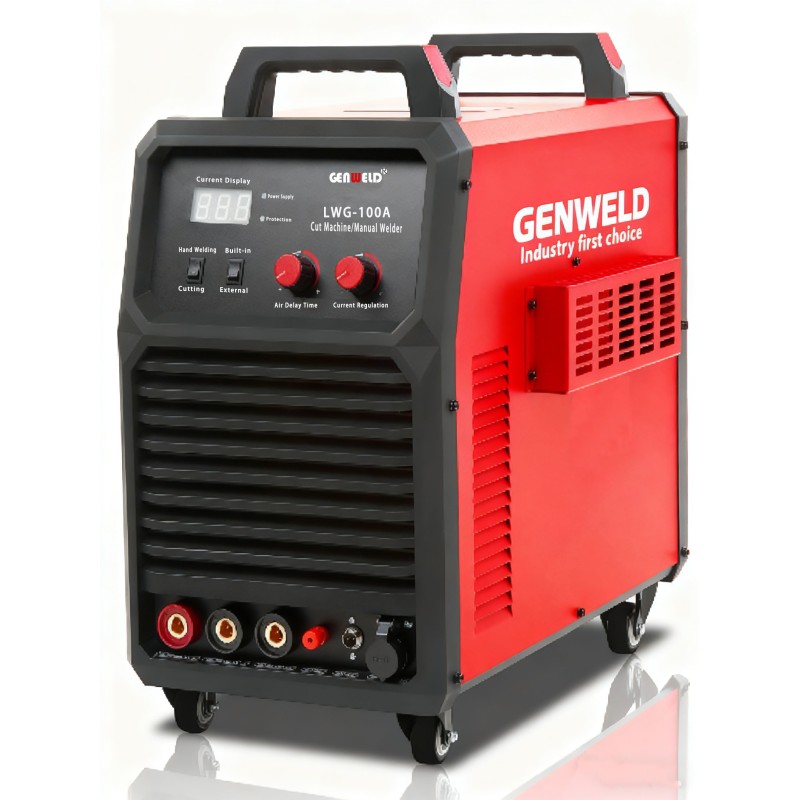

LWG-100A Built-in air pump plasma Cutting machine
LWG-100A Built-in air pump plasma Cutting machine
Specifications
Brand Name :
GENWELD
MOQ :
5
Payment Terms :
T/T,D/P,Western Union
Description
GENWELD Built-in Air Pump Plasma Cutter (Dual-use) - Key Selling Points
  1. 2-in-1 Function: Built-in air pump (no external air source needed) + welding capability
  2. Stable Performance: IGBT module, high-frequency arc ignition, stable current (adapts to voltage fluctuations)
  3. Protective & Durable: Overvoltage/overheat protection + exclusive air circuit filter (avoids torch damage)
  4. User-Friendly: Adjustable cutting current, sleek design, easy operation
  5. Reliable: Three-proof key components (suitable for harsh environments

LWG-100A Built-in air pump plasma Cutting machine

Main Product Features
  • Adopts IGBT module technology
  • Built-in air pump, no external air source required; also features welding function
  • Non-contact high-frequency arc ignition, high arc success rate, low interference
  • With overvoltage, overcurrent, and overheating automatic protection functions
  • Equipped with exclusive air circuit filtering technology to avoid torch damage
  • Precisely adjustable cutting current, suitable for workpieces of different thicknesses
  • Strong adaptability to wide grid voltage fluctuations; stable cutting current and plasma arc
  • Excellent performance: soft arc, smooth cut, superior cutting process
  • User-friendly, sleek and elegant design, easy to operate
  • Three-proof design for key components, suitable for harsh environments, stable and reliable operation
Main Technical Parameters
Product Type LGK-100A LGK-130A LGK-160A
Input Power Source Three-phase 380V Three-phase 380V Three-phase 380V
Rated Input Capacity 17.8KVA 22.5KVA 29.2KVA
Inverting Frequency 20KHz 20KHz 20KHz
No-Load Voltage 320V 320V 320V
Duty Cycle 60% 60% 60%
Current Adjustment Range 25-100A 25-130A 25-160A
Arc Starting Mode High-frequency non-contact arc ignition High-frequency non-contact arc ignition High-frequency non-contact arc ignition
Power Cooling Method Forced air cooling Forced air cooling Forced air cooling
Cooling Mode of Adjustable Gun Air cooling Air cooling Air cooling
Quality Cutting Thickness ≤35mm ≤40mm ≤45mm
Electrode Diameter 2.5-4.0mm 2.5-5.0mm 2.5-5.0mm
Efficiency 90% 90% 90%
Insulation Class Class F Class F Class F
Dimensions 600*360*550mm 600*360*550mm 640*385*630mm
Weight 39KG 39.5KG 54.8KG
