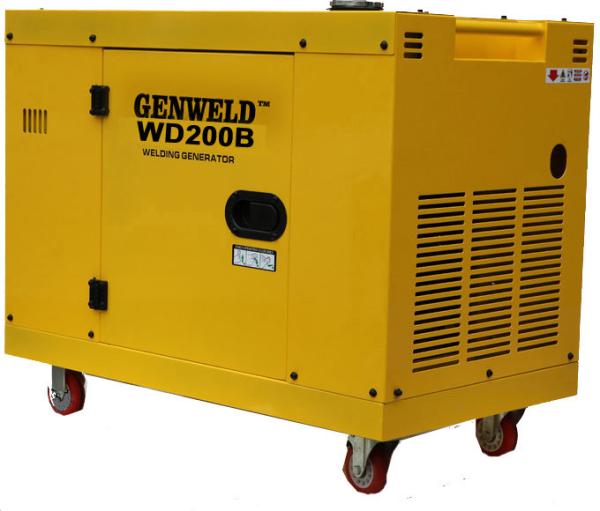

WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved
WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved
WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved
WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved
WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved
WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved
Specifications
Brand Name :
GENWELD
Model Number :
WD200B
Certification :
CE
Place of Origin :
Chongqing,China
MOQ :
1 container
Price :
USD1000-1100/set
Payment Terms :
T/T,, L/C
Supply Ability :
1000 sets per month
Delivery Time :
20-30 days after received prepayment
Packaging Details :
Seaworthy carton,925*525*710mm, 48Sets/20GP
Rated Duty Cycle :
50%/170A/26.8V
Rated Power Output :
AC4.0Kw/240V or 120V
Engine brand & type :
Weima/WM192F
Max. power/Speed :
8.2Kw/3600rpm
Fuel :
Diesel
Start method :
Recoil/Electric
Net weight :
130Kg
Packing sizes :
925*525*710mm
Description

GENWELD WD200B 200A Silent Diesel MMA Welding Machine with AC 4.0Kw Auxiliary Output Power

GENWELD WD200B 200A Silent Diesel MMA Welding Machine Specifications:

Model WD200B
Generating section Rated OCV(V) 220(AC)
Rated power(kw) 5.0
Max.power(kw) 5.5
Rated current 22.7
Welding section Duty cycle(%) 50%
OCV(V) 75(DC)
Rectifier MDS
Current range(A) DC 50-200A
Loaded voltage(V) DC 22-28V
Rated current/voltage(A/V) 170A / 26.8V
Engine section Engine model WM192F
Max.power/Speed(RPM) 8.2kw/3600rpm
Displacement(CC) 499
Start method Recoil/Electric
Whole set Tank capacity(L) 16
Protection/insulation level IP23
Outline size(mm) 925*525*710mm
Carton packing size 940*540*725mm
Net/gross weight(kg) 130/1135
Standard accessories Battery--1 set,walking-wheel--1 set,wheel-handlebar--1 pc,electrode holder--1 pc,hand shield--1 pc,welding cable-
