Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle
Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle
Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle
Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle
Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle
Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle
Specifications
Brand Name :
Enerkey
Model Number :
EK-24S20EB
Certification :
ISO9001/CE/ROHS
Place of Origin :
Shenzhen, China
MOQ :
500 pieces
Price :
$188-$228
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs per day
Delivery Time :
3-5days
Packaging Details :
Strong paper box +EVA Foam
Product name :
20A 2s-24s Smart Active Balancer with Bluetooth
Copper Thickness :
2oz
Application :
high-power energy storage, base station backup power supply
Board Thickness :
1.6mm
Battery Type :
Lithium/Lifepo4/Lto Battery Pack
Battery Strings :
2s-24s
Material :
FR-4 / HASL
Communication port :
Bluetooth and CAN
Product Size :
L313 x W193 x T43mm
Weight with Package :
2.53kg
Description

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Product Description

Smart Active Balancer Equalizer 24s 12-72volt 20A max - NMC/ LFP - For Lithium Battery Packs

This equalizer is suitable for 2~24 series NCM/ LFP/ LTO battery packs with voltage acquisition and equalization functions. The equalizer works with a continuous 20A equalization current to achieve energy transfer, and the equalization current does not depend on the voltage difference of the series-connected cells in the battery pack. The voltage acquisition range is 1.5V~4.5V, and the precision is 1mV.

20A High-Current Active Balancing: Supercapacitor-based energy transfer, efficiency exceeding 90%, 5 times faster balancing speed
24-Series Full-String Monitoring: Millivolt-level voltage detection, real-time warning of abnormal batteries
Intelligent Dynamic Management: Automatic switching between charging/discharging modes, optimizing battery pack consistency
Military-Grade Protection: IP65 waterproof and dustproof, -20℃~60℃ wide temperature range operation, zero safety hazards

Why Choose Us?
50%+ Extended Lifespan: Reduced battery degradation through balancing management, 30%-50% increase in cycle life
Enhanced Safety: Over-voltage/over-current/short-circuit/temperature quadruple protection, eliminating thermal runaway risks
Improved Energy Efficiency: Active balancing reduces energy waste, increasing system efficiency by 15%-20%
Intelligent Operation and Maintenance: Supports data export and remote diagnostics, reducing maintenance costs by 40%

Application Scenarios
Electric Vehicles: Solves the problem of reduced range caused by poor battery pack consistency
Energy Storage Systems: Improves charging and discharging efficiency and extends the lifespan of energy storage equipment
Electric Bicycles: Intelligent balancing of dual battery packs, preventing overcharging/over-discharging of individual cells
Industrial Equipment: High-reliability battery management, suitable for harsh environments

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Technical Parameters
Product model

20A Smart Active Balancer for 2-24s (EK-24S20EB)
Supported battery type

NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range

1.5V~4.5V
Undervoltage protects sleep voltage

APP can be customized Settings :1.5-4.2V
Equilibrium method

Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection

Support disorderly power on detection/protection
Equilibrium current

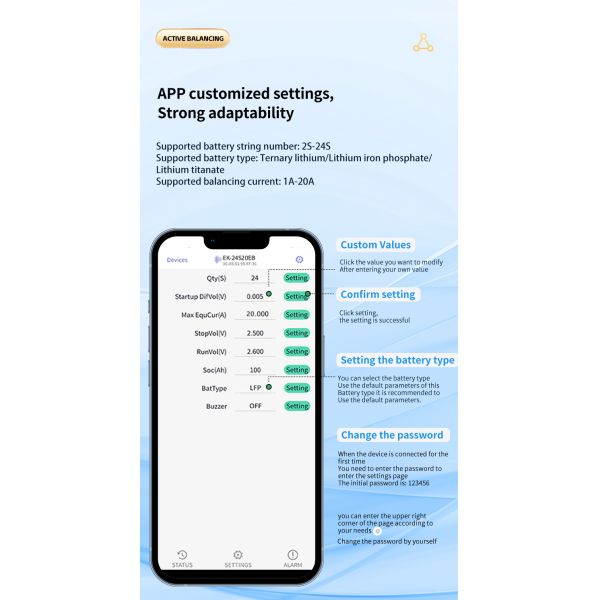

APP can be customized Settings: 1A~20A
Whether an external power supply is required

Battery-operated(Accuracy:3mV)

DC power supply(Accuracy:1mV)
External power supply

DC 24-120V
Voltage equalization accuracy

APP can be customized Settings :1mV(TYP)
Power failure detection function

Support
Wrong wire protection function

Support
Fault alarm function

Support
Buzzer

APP can be customized Settings
Power dissipation

At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature

-20℃ ~ +55℃

Application

 High-power energy storage, base station backup power supply,Solar power station

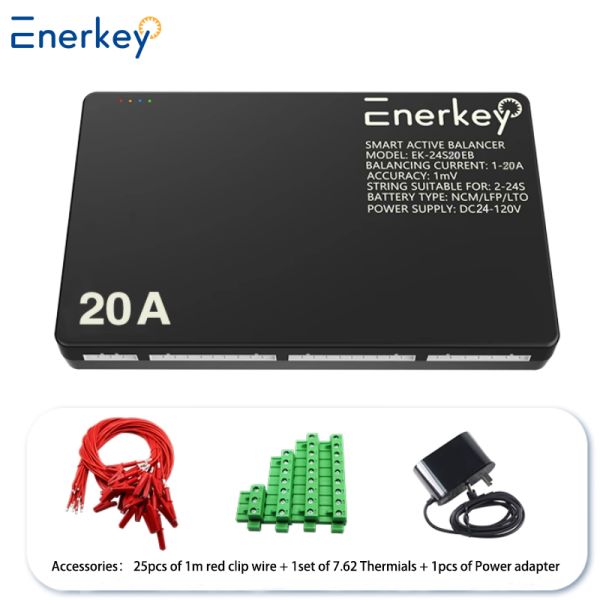

Packing List

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

Part Name Q'ty
20A Smart Active Balancer 1pcs
1m 16AWG Clip Wire 25pcs
3pin 7.62Pitch Thermial 1pcs
7pin 7.62Pitch Thermial 1pcs
9pin 7.62Pitch Thermial 1pcs
DC Adapter 1pcs

Wire Diagram

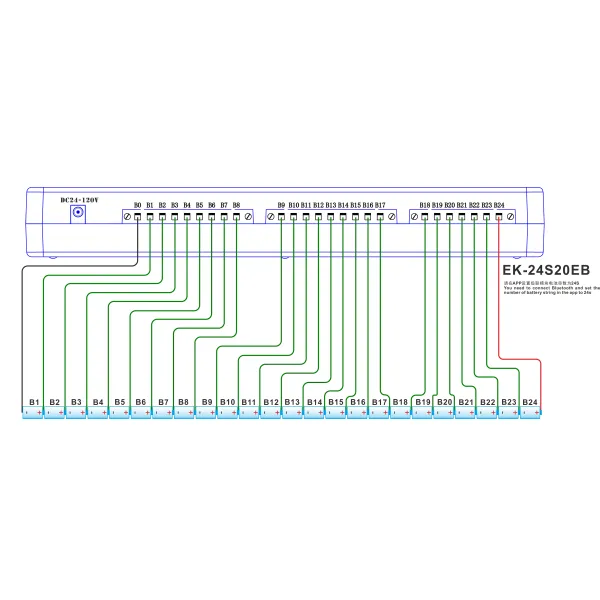

24S Wiring Diagram

EK-24S20EB supports 2S-24S. The following figure shows how to install and connect cables to the 24S battery string:

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

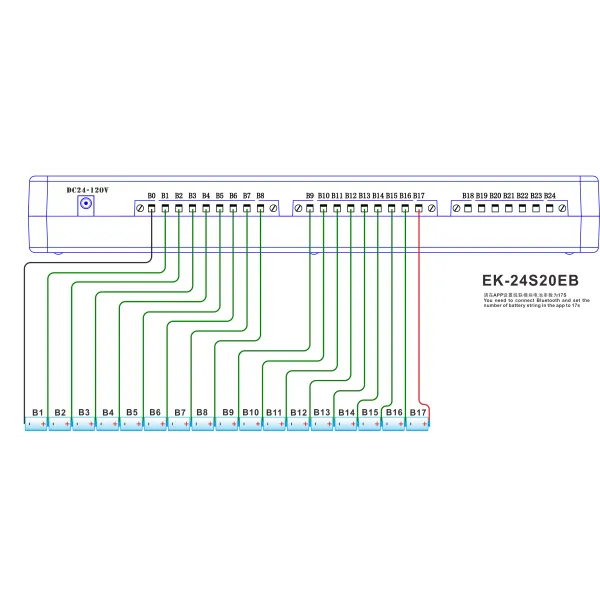

17S Wiring Diagram

When less than 24 battery strings are connected in series, empty pins are suspended. The following uses 17S as an example.

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

3S Wiring Diagram

If the battery string has a total voltage lower than 24V, you need to connect 24V to 120V DC power supplies.

The following uses 3S as an example:

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

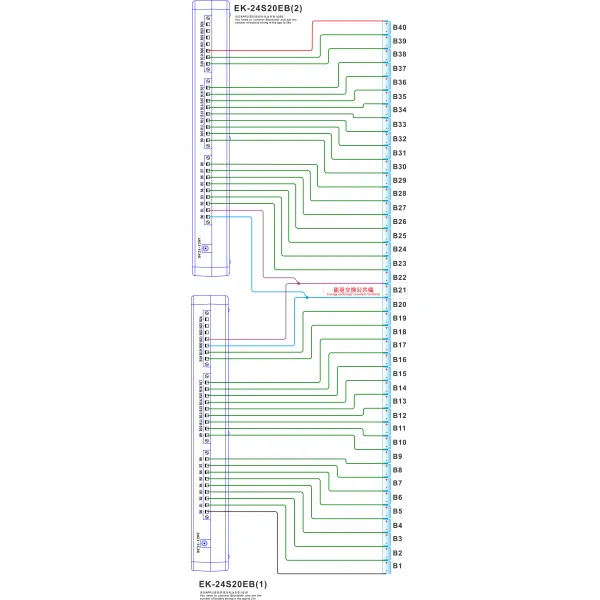

40S Cascade Wiring Diagram

EK-24S20EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange".

The following uses the 40S as an example to describe how to install and connect cables:

Enerkey 20A Smart Balancer 4S 8S 12S 16S 20S 24S 40A 60A with CAN and Bluetooth Active balancer for Electric Vehicle

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

If you have any advices or requests, Warmly welcome your consulting.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
