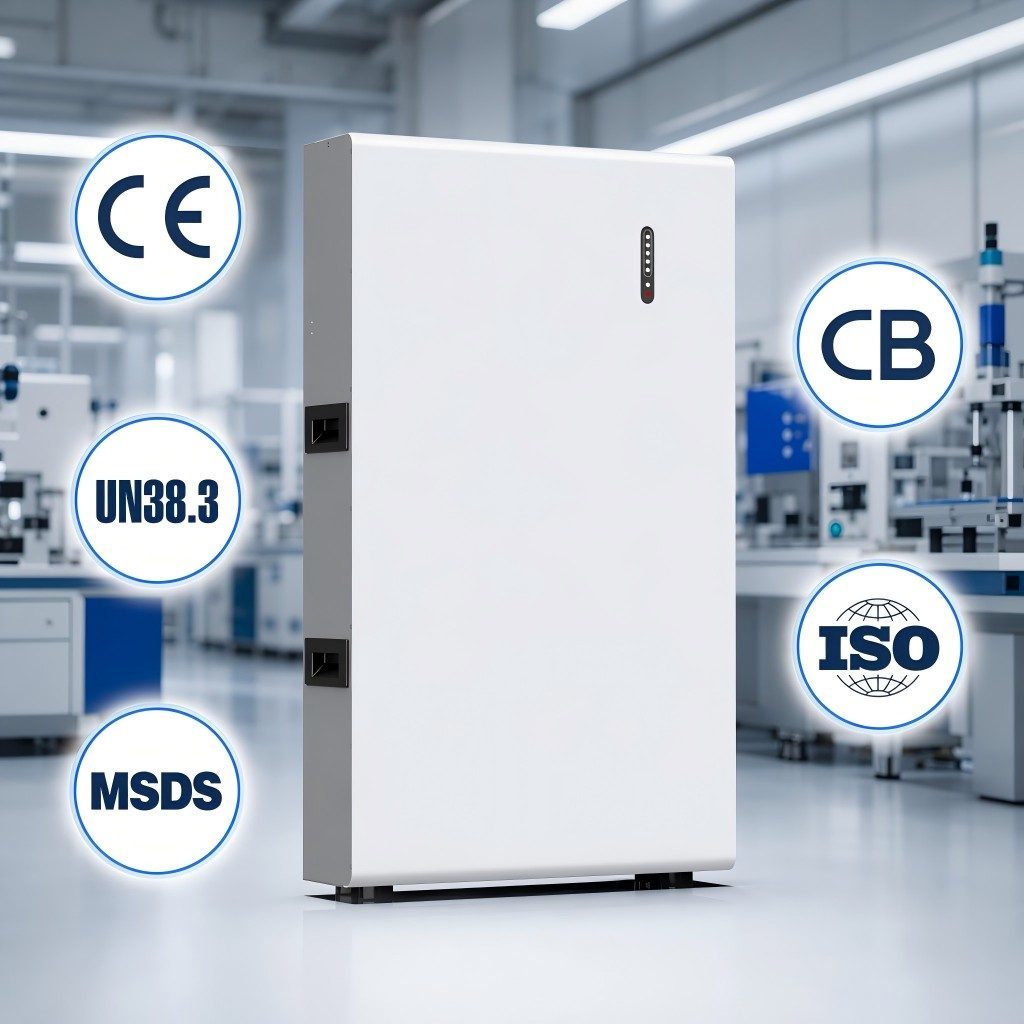

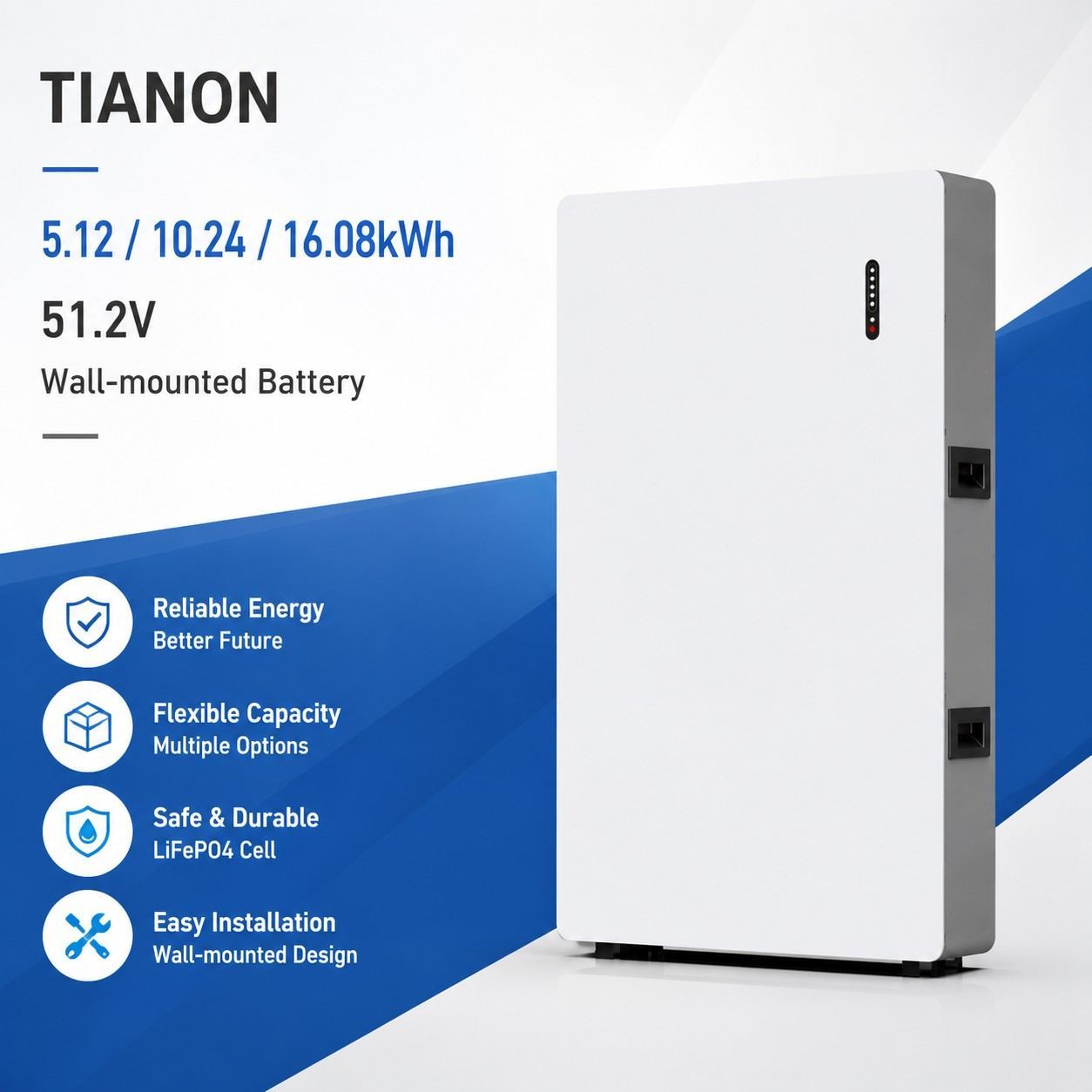

The TIANON C003-1 is a compact 5.12kWh wall-mounted LiFePO4 battery engineered for modern residential solar storage. Part of the C003 wall-mount series spanning 5kWh to 16kWh, this entry-level model features 51.2V/100Ah Grade A LiFePO4 cells with a Smart BMS, delivering 5kW continuous discharge power in a slim 135mm profile (420×135×630mm, 46.5kg). With 6000+ cycle life at 80% DOD, CAN/RS485 communication for universal inverter compatibility, and support for up to 8 units in parallel (40kWh total), the C003-1 provides an ideal foundation for residential solar storage that can grow with the household. IP20 indoor-rated with natural convection cooling, it includes WiFi for remote cloud monitoring and OTA firmware updates. CE, UN38.3, CB, and IEC62619 certified.

• Scalable modular design - start with 5.12kWh and expand up to 8 units in parallel (40kWh+ total) as home energy needs grow, without replacing existing hardware.
• Grade A LiFePO4 cells - 100% brand new Tier 1 Grade A 100Ah cells with full QR-code traceability and Zero Fake Capacity guarantee for maximum safety and reliable performance.
• 6000+ cycles @ 25°C - laboratory-tested to exceed 6000 cycles at 80% DOD, delivering over 15 years of reliable daily cycling for maximizing return on investment.
• Smart BMS with WiFi/OTA - intelligent multi-level protection (over-current, over-voltage, short-circuit, thermal) plus WiFi-based remote cloud monitoring and over-the-air firmware updates.
• Universal inverter compatibility - pre-programmed CAN/RS485 protocols for seamless plug-and-play integration with Deye, Victron, Growatt, GoodWe, and most mainstream hybrid inverters.
• Space-saving wall mount - industry-leading 135mm slim profile mounts securely to utility room or garage walls, reclaiming valuable floor space with a clean aesthetic finish.
• 5kW continuous discharge - reliable high-current output supports heavy household startup loads including refrigerators, pumps, and air conditioners.
• 10-year factory warranty - direct backing from TIANON dual manufacturing hubs in Xi’an and Anhui with specialized B2B technical support.

• Whole-house solar storage for standard residential rooftop PV systems
• Home emergency backup power during grid outages
• Apartment balcony solar storage for compact urban environments
• Off-grid villa energy for complete energy independence
• Farm and rural power for irrigation and agricultural sheds
• Tiny house and remote cabin storage with low-maintenance operation
• Smart home energy hub for automated energy management
