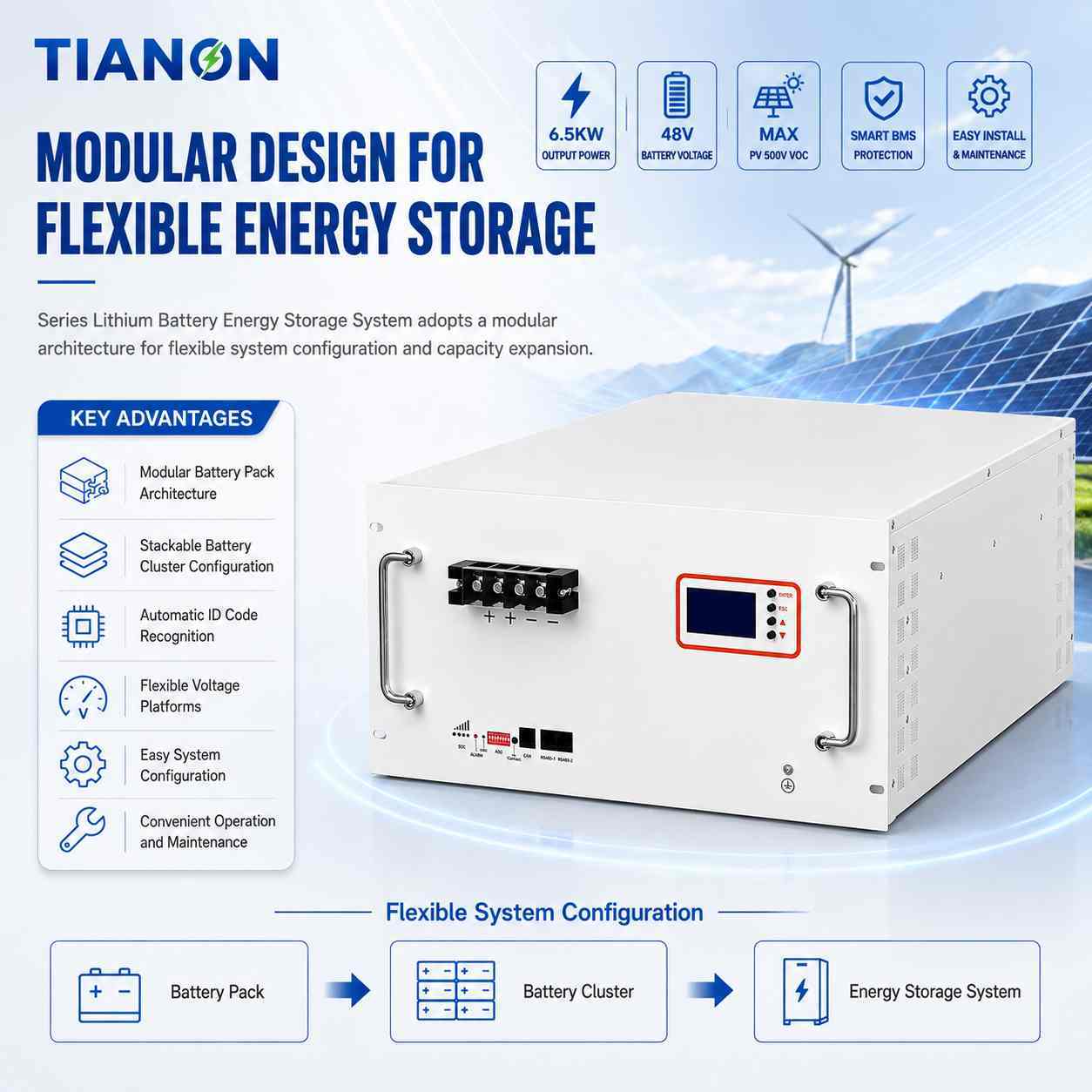

The L005-51.2-100 is a rack-mounted lithium iron phosphate (LiFePO4) battery module delivering 51.2V nominal voltage with 100Ah capacity and 5.12kWh nominal energy. Featuring 48 cells configuration, the L005-51.2-100 provides an operating voltage range of 44.8~58.4V with recommended charging voltage of 55.2V. With up to 6000+ cycles @ 80% DOD cycle life at 80% depth of discharge, this battery delivers exceptional longevity for solar energy storage, UPS backup and telecom base station applications.

Compact rack design at 682*510*246 mm and just 93 kg, the L005-51.2-100 fits standard 19-inch racks for space-efficient deployment in energy storage rooms and data centers. Smart BMS with balanced management ensures safe operation with overcharge, over-discharge, overcurrent, short circuit and temperature protection. Multiple units support parallel expansion with automatic address assignment — no DIP dialing required — enabling flexible capacity scaling from 5.12kWh upwards.

Visual communication via LCD display and LED indicators (SOC/ALARM/RUN) provides intuitive operating status at a glance. Dual RS485 interfaces upload cell-level data in real time, while CAN communication supports seamless inverter integration. IP20-rated enclosure with natural air cooling or intelligent fan ensures reliable operation across storage temperatures from -20°C to 55°C and charging temperatures from 0°C to 55°C.

• 6000+ Cycle LiFePO4 Cells - automotive-grade lithium iron phosphate cells with up to 6000+ cycles @ 80% DOD at 80% DOD and low capacity attenuation for long-term energy storage.
• 51.2V 100Ah 5.12kWh Configuration - 48 cells configuration with 51.2V nominal voltage delivering 5.12kWh nominal energy for reliable backup and storage.
• Smart BMS with Balanced Management - intelligent battery management system with comprehensive protection against overcharge, over-discharge, overcurrent, short circuit and over-temperature.

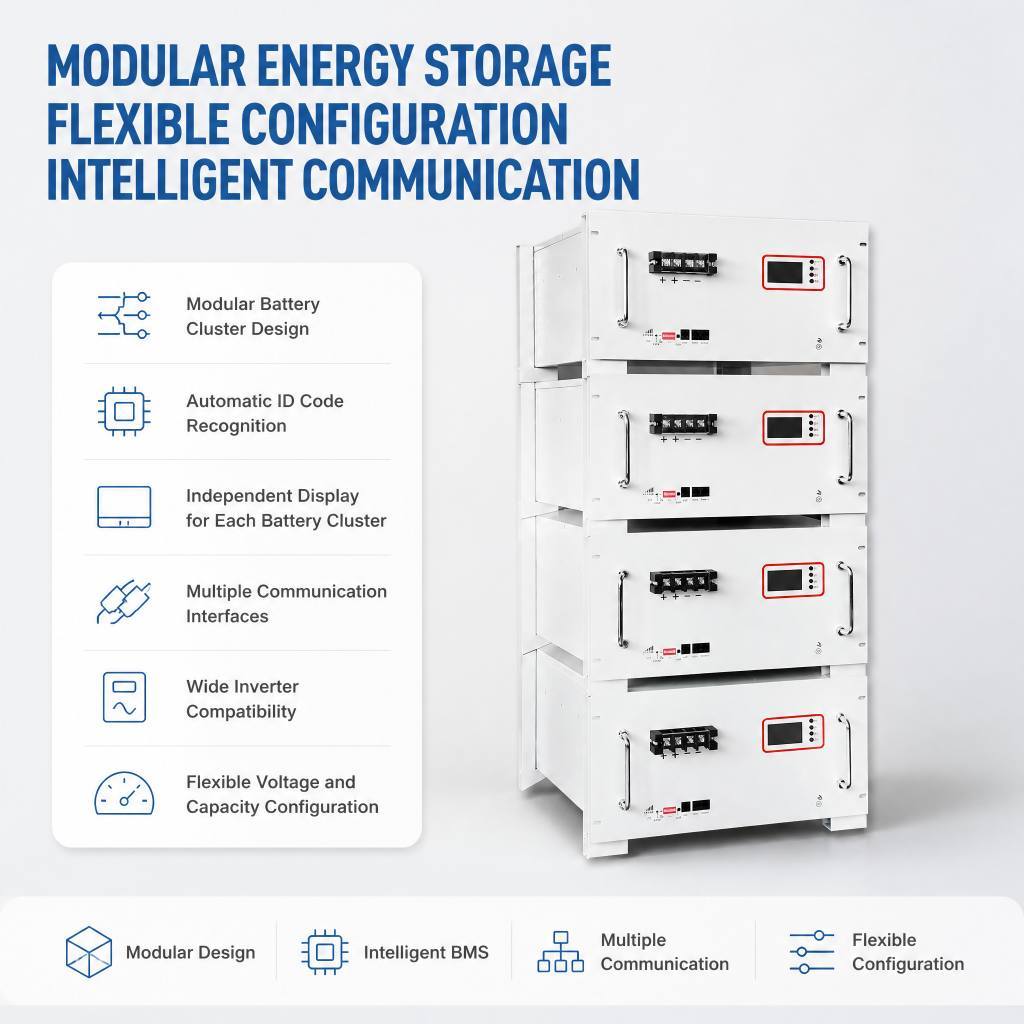

• Flexible Parallel Expansion - multiple units connect in parallel with automatic address assignment and no DIP dialing, supporting free capacity combination for scalable energy storage.
• RS485 & CAN Communication - dual RS485 interfaces for real-time cell data upload plus CAN bus for inverter communication and system integration.
• LCD Display with LED Indicators - intuitive visual interface showing SOC, ALARM, RUN status with real-time operating parameters on LCD screen.
• Compact 19-Inch Rack Design - 682*510*246 mm dimensions at 93 kg weight, designed for standard 19-inch rack mounting with space-efficient deployment.
• Wide Application Compatibility - compatible with PV solar systems, UPS backup power and telecom base stations with IP20 protection and wide temperature range.

• Solar PV Energy Storage System - residential and commercial solar self-consumption with battery storage
• UPS Backup Power - uninterruptible power supply for critical equipment in data centers and server rooms
• Telecom Base Station - reliable backup power for communication infrastructure and remote telecom sites
• Residential Energy Storage - home battery storage for peak shaving and emergency backup
• Commercial ESS - small to medium commercial energy storage for demand management
• Microgrid Storage - local energy storage for off-grid and grid-connected microgrid applications

1. What is the voltage and capacity? - 51.2V nominal with 100Ah capacity delivering 5.12kWh nominal energy. Operating range: 44.8~58.4V.
2. How long is the cycle life? - Up to 6000+ cycles @ 80% DOD, ensuring long-term reliability for energy storage applications.
3. Can multiple units be connected in parallel? - Yes, with automatic address assignment and no DIP dialing required for flexible capacity expansion.
4. What communication interfaces are available? - Dual RS485 interfaces for cell data upload plus CAN for inverter communication.
5. What are the dimensions and weight? - 682*510*246 mm (D*W*H), 93 kg. Designed for 19-inch standard rack mounting.

Shaanxi Tianon New Energy Technology Co., Ltd. is a professional manufacturer of integrated energy storage and solar conversion systems. With dual manufacturing hubs in Xi'an and Anhui and over 10 years of new energy export experience, we deliver premium-quality products backed by rigorous quality inspection and international certification. We serve distributors, EPC contractors, and project developers in 50+ countries across Europe, North America, and Southeast Asia.
