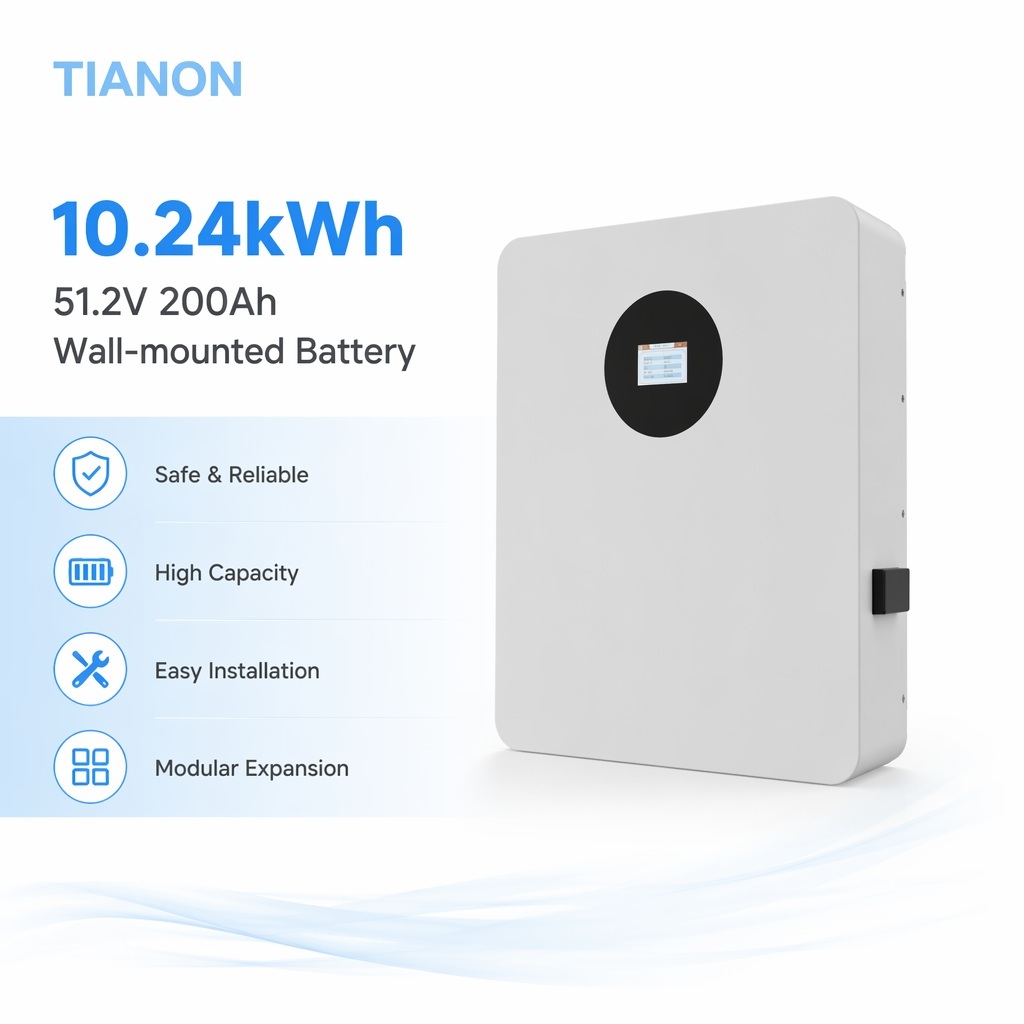

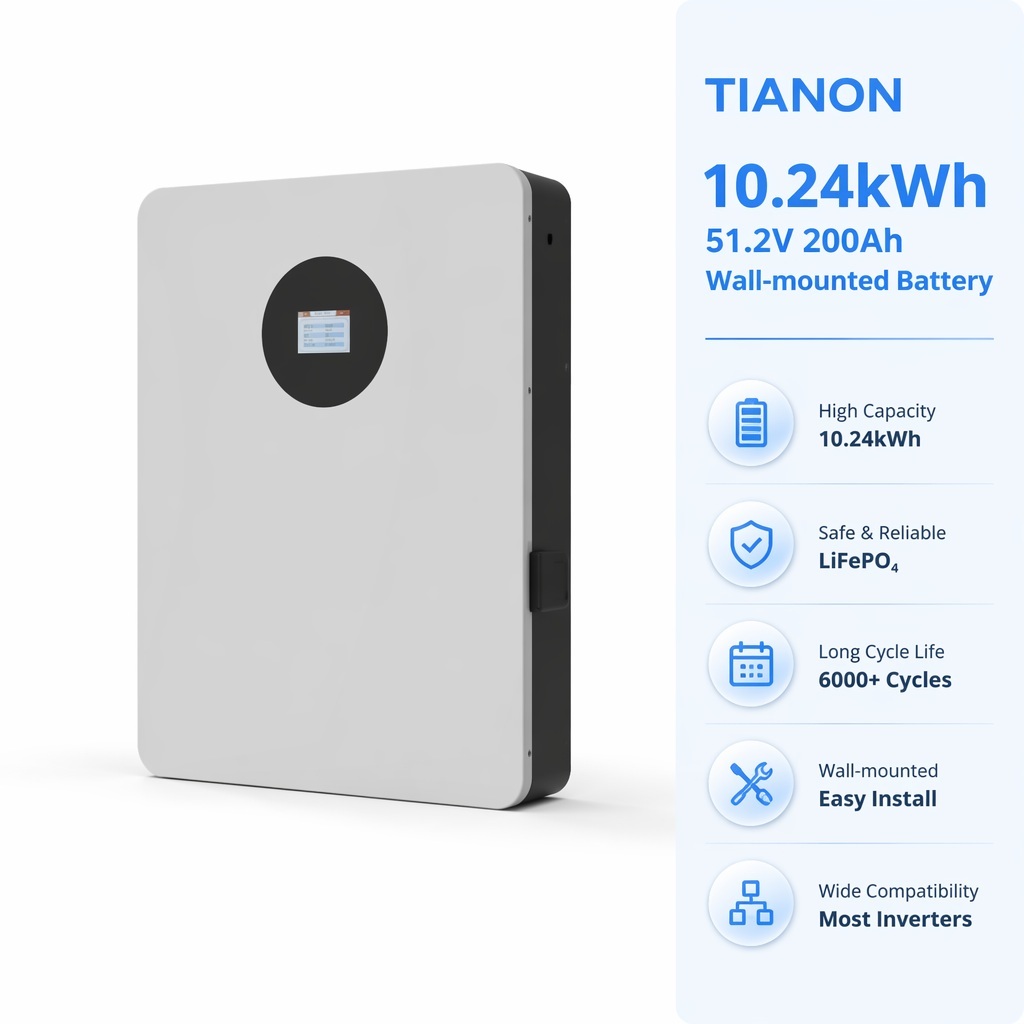

The THS10 is a 10.24kWh LiFePO4 battery for home solar storage and backup power. It uses prismatic lithium iron phosphate cells rated at 51.2V / 200Ah.

• 6,000 cycles at 80% DOD - typical service life of 10 years or more under daily cycling.
• 3.5-inch touch panel on the front of the unit, displaying SOC, voltage, current, and temperature in real time.
• Multi-protocol communication - CAN, RS485, RS232, Bluetooth, and WiFi. Works with inverters from Deye, Growatt, Victron, and most other major brands.
• Parallel up to 16 units for a total of 160kWh. Start with one and add more as your needs grow.

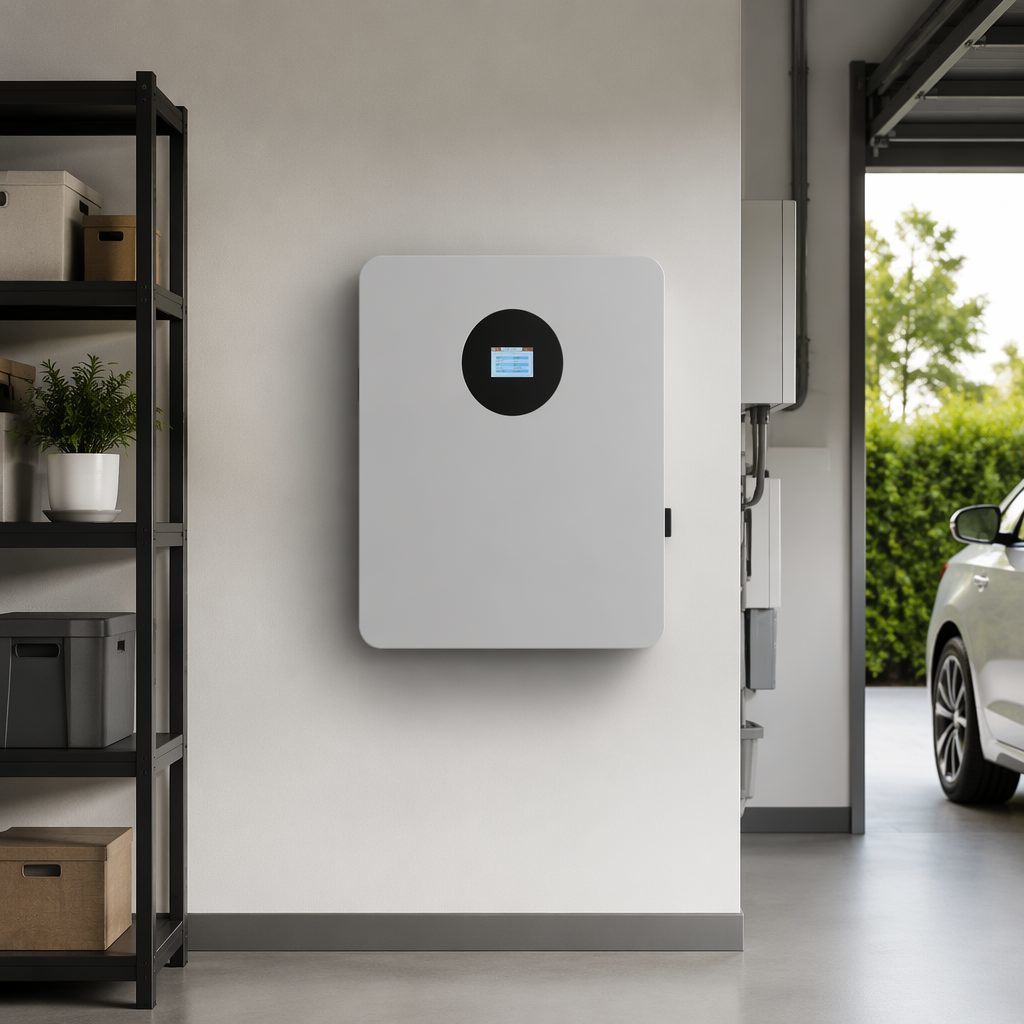

• Wall-mounted, 665 x 565 x 160 mm, 85 kg. IP21 rated for indoor use - garage, utility room, or basement.
• Operating range: charges at 0-55C, discharges at -20-55C.

• IEC 62619:2022 - safety of industrial lithium batteries
• UN38.3 - passed all T1-T8 transport safety tests
• CE-EMC - electromagnetic compatibility
• MSDS available on request

• Home solar storage - charge from PV during the day, use at night
• Backup power for critical loads during grid outages
• Peak shaving / time-of-use optimization
• Off-grid cabins and remote sites

1. What is the minimum order quantity? - 1 piece. We support sample orders and trial units.
2. What is the warranty period? - Standard 10-year professional warranty on the complete unit.
3. Can multiple units be connected in parallel? - Yes, up to 16 units can be connected in parallel for a total capacity of 160kWh.
4. Which inverter brands are compatible? - Deye, Growatt, Victron, and most major brands via CAN, RS485, RS232, Bluetooth, or WiFi.
5. What certifications does this battery have? - IEC 62619:2022, UN38.3 (T1-T8), CE-EMC, and MSDS available on request.

Shaanxi Tianon New Energy Technology Co., Ltd. is a professional manufacturer of integrated energy storage systems, specializing in residential and commercial LiFePO4 battery solutions. With a 1000sqm manufacturing base and 20+ dedicated staff, we deliver high-quality ESS products backed by rigorous testing and certification.
