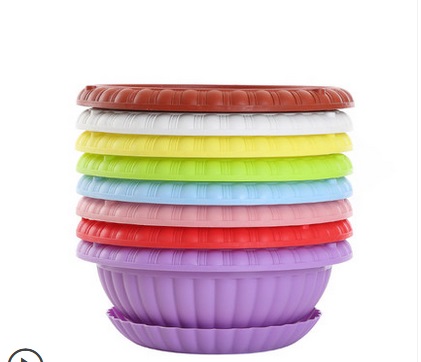

Professional Cnc Injection Moulding Machine For Plastic Plant Pot
Professional Cnc Injection Moulding Machine For Plastic Plant Pot
Professional Cnc Injection Moulding Machine For Plastic Plant Pot
Professional Cnc Injection Moulding Machine For Plastic Plant Pot
Professional Cnc Injection Moulding Machine For Plastic Plant Pot
Professional Cnc Injection Moulding Machine For Plastic Plant Pot
Professional Cnc Injection Moulding Machine For Plastic Plant Pot
Professional Cnc Injection Moulding Machine For Plastic Plant Pot
Professional Cnc Injection Moulding Machine For Plastic Plant Pot
Professional Cnc Injection Moulding Machine For Plastic Plant Pot
Specifications
Brand Name :
HAIJIA
Model Number :
HJF360
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Set/Sets per Month
Delivery Time :
20-30days
Packaging Details :
Standard Export Package for Injection Machine
Voltage :
Customed Avaiable
Used for :
Plasic Products
Motor :
servo & standard & variable pump
Keyword :
energy saving
Warranty :
18 months
Plastic type :
Thermoplastic
Description

Generally, the molding process of the screw type injection molding machine is: firstly, the granular or powdered plastic is added into the barrel, and the plastic is melted by the rotation of the screw and the outer wall of the barrel, and then the machine performs the mold clamping and the injection seat forward. The nozzle is placed close to the gate of the mold, and then the pressure oil is introduced into the injection cylinder to advance the screw, thereby injecting the melt into the lower temperature closed mold at a high pressure and a relatively high speed. Time and pressure are maintained (also known as holding pressure), cooled, and solidified, and the product can be opened by mold opening (the purpose of holding pressure is to prevent backflow of molten material in the cavity, replenish material into the cavity, and ensure the product Has a certain density and dimensional tolerance). The basic requirements for injection molding are plasticization, injection and molding.

SPECIFICATION HJF-180
A B C
Screw Diameter Mm 42 45 50
Screw L/D Ration L/D 22.5 20 18.8
Shot Size(Theoretical) cm3 304 349 431
Injection Weight(PS) g 274 314 388
Injection Rate g/s 108 128 158
Injection Pressure MPa 202 159 140
Screw Speed rpm 0~185
Clamp tonnage KN 1800
Opening stroke Mm 430
Space Between Tie Bars mm 470*470
Max.Mold Height mm 500
Min.Mold Height mm 180
Ejector Stroke mm 130
Ejector Tonnage KN 45
Max.Pump Pressure MPa 16
Pump Motor Power KW 15
Heater power KW 7.5
Machine Dimension(L*W*H) M 5.1*1.4*1.9
Machine weight T 5.5
Oil Tank Capacity L

240
