Powerwall Wall-Mounted Lithium Ion Solar Home Energy Storage IP65 Protection Lifepo4
Powerwall Wall-Mounted Lithium Ion Solar Home Energy Storage IP65 Protection Lifepo4
Powerwall Wall-Mounted Lithium Ion Solar Home Energy Storage IP65 Protection Lifepo4
Powerwall Wall-Mounted Lithium Ion Solar Home Energy Storage IP65 Protection Lifepo4
Specifications
Place of Origin :
Guangdong, China
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiation
Delivery Time :
negotiated
Cycle life :
>6000 Times
Voltage :
48V /51.2V
Warranty :
5 Years
Communication :
CAN/RS-485/WIFI
Battery Type :
Lithium Ion
Description

Powerwall Wall-Mounted Lithium Ion Solar Home Energy Storage IP65 Protection Lifepo4

System Voltage
51.2 V
Output Power Range
10~20 kWh
Grid connection
Off grid, Hybrid grid
Battery Type
Lithium Ion
Place of Origin
Guangdong, China
System Type
Wall-Mounted, Floor - mounted
Model Number
Powerbox Pro
Brand Name
PMD
Dimension (L*W*H)
93*56*21cm
Weight
93kg
Type
Split
Communication Port
CAN, RS-232, Rs485
Protection Class
IP65
Nominal Voltage
48V/51.2V
Nominal Capacity
200Ah
Nominal Energy
9.6kWh/10.24kwh
Cycle Life
6000+ Cycles
Size
928*555*210 mm (36.5*21.8*8.3 inch)
Weight
113kg (249 lbs)
Protection level
IP65
Warranty
10 Years
Inverter Matched
Bluesun Goodwe Deye Growatt Sungrow
Communication
RS485/RS232/CAN

Powerwall Wall-Mounted Lithium Ion Solar Home Energy Storage IP65 Protection Lifepo4

Item
Value
Key Words
48V 200Ah 10kWh 20kWh / Easy to install and expand
Brand Name
Dyness
Battery Type
LiFePO4
Model Number
Powerbox
Battery Module
F-5.0 2 Modules
F-7.5 3 Modules
F-10.0 4 Modules
Nominal Voltage
48V
Nominal Capacity
100Ah
150Ah
200Ah
Nominal Energy
4.8kWh
7.2kWh
9.6kWh
Max Output Power
4.8kWh
4.8kWh
4.8kWh
Weight
69kg (249 lbs)
91kg (200 lbs)
113kg (249 lbs)
Size
928*555*210 mm (36.5*21.8*8.3 inch)
Working Voltage
42~54℃
Operating Temp. Range
-20~50℃
Communication
CAN/RS485/RS232
Cycle Life
＞6000 Cycles
Color
White, Silver (Customized)
Scalabilitty

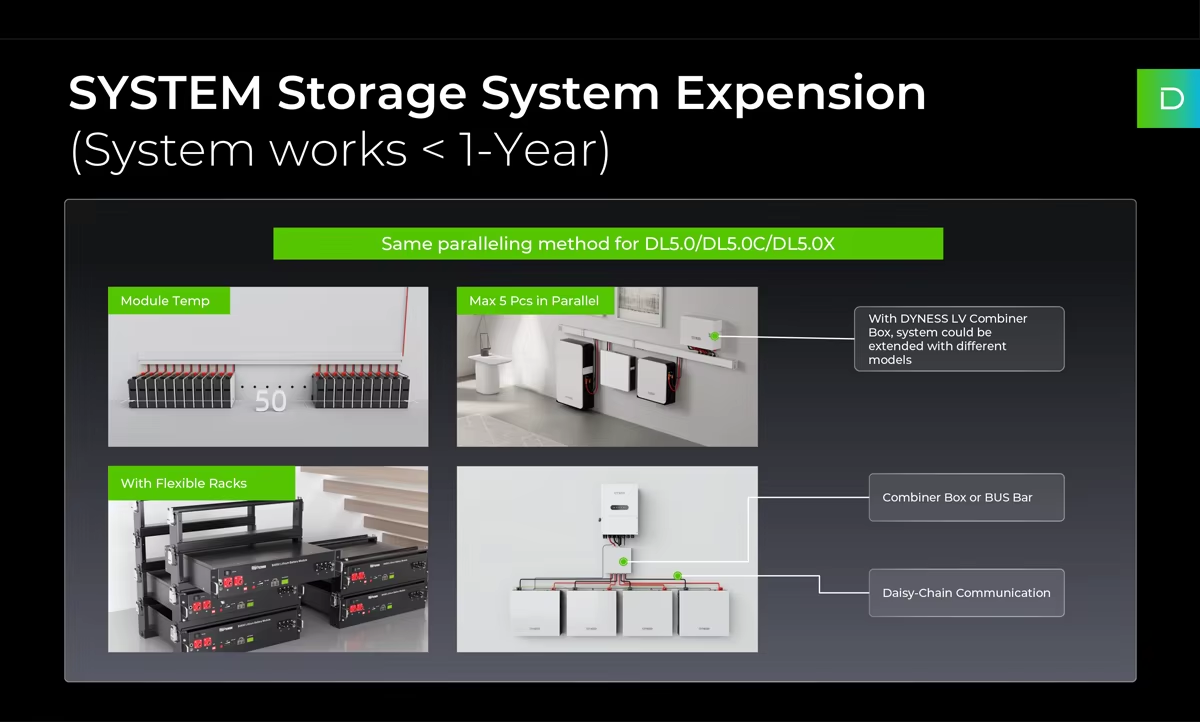

Up to 5 units in parallel
Protection Level
IP65
The charge rate
0.5C
The discharge rate
0.5C
Certification
CE / UL / CEI 0-21 / CEC / TUV / UN38.3 / MSDS / ISO 9001
Compatible Inverters
Goodwe / Victron / Imeon / Solis / Luxpower / Voltronic / Deye / SAJ Etc.
Alarms
Overcharge / Overdischarge / Overcurrent / Overtemperature / Short Circuit
Pros
Can be used in both off-grid and hybrid setups, compact design, modular expansion
Monitoring & Protection
Each module has BMS, breaker embedded in system
OEM/ODM
Warmly Welcomed
Warranty
7 & 10 Years

Powerwall Wall-Mounted Lithium Ion Solar Home Energy Storage IP65 Protection Lifepo4

FAQ
Q: How long is the warranty period?
A: Our limited warranty is valid for a period of 5 years after delivery. It is restricted by specifications and warranty terms.

Q: Can we print our logo on products?
A: Of course, we can provide one to one customized OEM with a MOQ demand.

Q: How long is the estimated delivery time?
A: The delivery time is usually 28 days after receiving the payment.

Q: Are you able to handle shipment transportation?
A: Sure, we can arrange the shipment to most places as required.

Q: What kind of certification do you have?
A: In general, we have SGS TÜV Saar, IEC 62040-1, IEC 62109-1, IEC 62109-2, IEC 62619, UN38.3, IEC 62133, CEC, UL, MSDS, ISO 9001 certifications, but each type of product may be different.

Q: What kind of product quality your factory offer?
A: We provide the most competitive products at the highest quality price.
