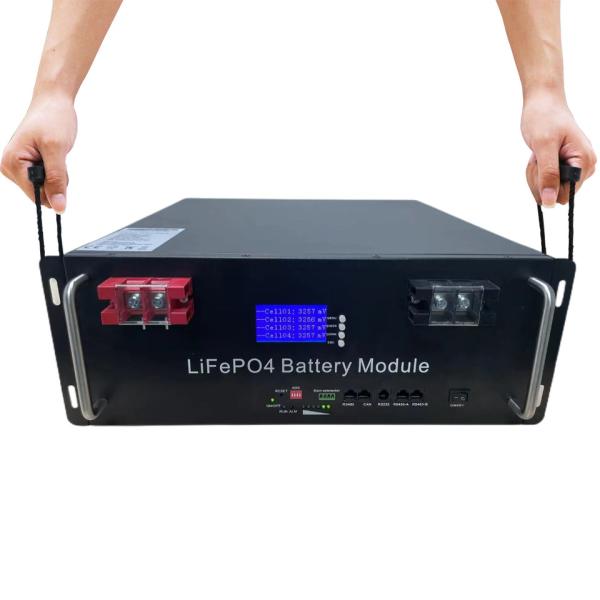

Lithium Ion Battery Energy Storage System 5kwh 10kwh 15kwh 20kwh
Lithium Ion Battery Energy Storage System 5kwh 10kwh 15kwh 20kwh
Specifications
Place of Origin :
china
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
negotiated
Battery Type :
LiFePO4
Cycle life :
6000 Cycles
Nominal Voltage :
51.2V
Nominal Capacity :
100AH/200AH
Warranty :
5 Years
Weight :
50kg
Description

Lithium Ion Battery Energy Storage System 5kwh 10kwh 15kwh 20kwh

Product details

Batteries materials
Lithium iron phosphate
Series parallel mode
15S1P
15S2P
15S1P
16S2P
16S2P
Nominal voltage
48v
48v
48v
51.2V
51.2V
Nominal capacity
100Ah
150Ah
200Ah
100Ah
200Ah
Size(mm)
465*440*195
482*590*178
500*440*260
490*440*170
670*480*350
Weight
45kg
76.5kg
80kg
50kg
85kg
Color
Optional
Parallel support
Parallel terminals are supported
Output port mode
terminal
Charging way
CC/CP/VP
Charging current
0.2C(standard)
Maximum charging current
Max0.5C @25℃
Discharge way
CC/CP/VP
Discharge current
0.5C
Charge cut-off voltage
54.75V/CELL
54.75V/CELL
58.4V/CELL
58.4V/CELL
58.4V/CELL
Maximum discharge current
Max1C @25℃
Max0.8C @25℃
Max0.6C @25℃
Max0.6C @25℃
Max0.6C @25℃
Discharge cut-off voltage
42v
42v
44.8V
44.8V
44.8V
According to
LCD
Communication interface
RS485/RS232/CAN
Charging operating temperature
charging:0~+50℃
Discharge operating temperature
discharge:-20~+55℃
Warranty
5 years
Applicable scope
hospital, bank data center, base frame type home,enterprise energy storagebackup power supply, wind complementary system,office,
military, base station and other uninterrupted energy storage power supply.

Household solar power supply system
By storing energy during the day and meeting the needs of household appliances at night, we can save your electricity costs and save energy and environmental protection;
As an emergency backup power source for households, providing power support in case of power outages or other emergency situations.

Supporting parallel connection of multiple batteries
When your home has a high demand for electricity, we support up to 15 batteries in parallel to provide you with sufficient power support and solve your electricity problems.
When several batteries are stacked together, we will provide you with bracket products to ensure the safe and beautiful use of the product.
