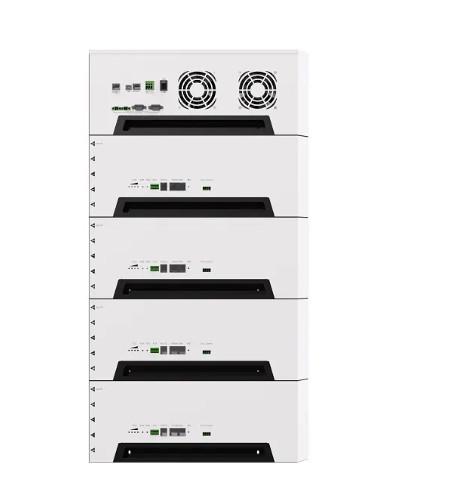

15KW Off Grid Solar Panel System for Home House
15KW Off Grid Solar Panel System for Home House
15KW Off Grid Solar Panel System for Home House
15KW Off Grid Solar Panel System for Home House
15KW Off Grid Solar Panel System for Home House
15KW Off Grid Solar Panel System for Home House
Specifications
Place of Origin :
china
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
negotiated
Battery Type :
LiFePO4
Capacity :
20 KWh
Warranty :
3 Years
Cycle life :
6000 Times
Voltage :
220V/230V
Solar Charge Type :
MPPT
Description

15KW Off Grid Solar Panel System for Home House​
H4805S-SO
H4810S-SO
H4815S-SO
H4820S-SO
BATTERY
Battery Module
1
2
3
4
Battery Energy
5.12kWh
10.24kWh
15.36kWh
20.48kWh
Battery Capacity
100AH
200AH
300AH
400AH
Weight
80kg
133kg
186kg
239kg
Dimension L×W×H
710×450×384
710×450×576
710×450×768
710×450×960
Battery Type
LiFePO4
Battery Rated Voltage
51.2V
Battery Working Voltage Range
44.8 ～ 57.6V
Maximum Charging Current
100A
Maximum Discharging Current
100A
DOD
80%
Parallel Quantity
4
Designed Life-span
6000
PV CHARGE
Solar Charge Type
MPPT
Maximum Output Power
5KW
PV Charging Range
0～80A
PV Operating Voltage Range
120～500V
MPPT Voltage Range
120～450V
AC CHARGE
Maximum Charge Power
3150W
Rated Input Voltage
220/230Vac
Input Voltage Range
90～280Vac
AC OUTPUT
Rated Output Power
5KW
Maximum Output Current
30A
Frequency
50Hz
BATTERY INVERTER OUTPUT
Rated Output Power
5KW
Maximum Peak Power
10KVA
Rated Output Voltage (Vac)
230Vac
Auto Switch Period
＜15ms
THD
＜3%
GENERAL DATA
Communication
RS485/CAN/WIFI
Storage time / temperature
6 months @25℃;3 months @35℃;1 months @45℃;
Charging temperature range
0～45℃
Discharging temperature range
-10～45℃
Noise
60dB(A)
Certification
UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3

15KW Off Grid Solar Panel System for Home House

Wide Application

1,For no city power areas, the battery pack can be charged by solar panels and used for night lighting;
2,For the areas that city power is expensive, the battery pack can be charged during the electricity valley value period,
and used at the peak power period;
3,For the areas which power off from time to time, the battery pack can be used as UPS, to avoid information loss caused
by sudden power outage.
4,The battery pack is applicable to commercial lighting, industrial lighting, home lighting, outdoor lighting,camping tourism,
farming, planting, the night market stalls, etc.

FAQ

1,who are we?

We are based in Guangdong, China, start from 2001,sell to Domestic Market(55.00%),Western Europe(21.00%)

,North America(14.00%),Eastern Asia(6.00%),South Asia(1.00%),Eastern Europe(1.00%),Mid East(1.00%),

Southeast Asia(1.00%),South America(0.00%),Oceania(0.00%),Southern Europe(0.00%),Central America(0.00%),

Northern Europe(0.00%),Africa(0.00%). There are total about 1000+ people in our office.

2,how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3,what services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW；

Accepted Payment Currency:USD,EUR,HKD,CNY;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;

Language Spoken:English,Chinese,Russian
