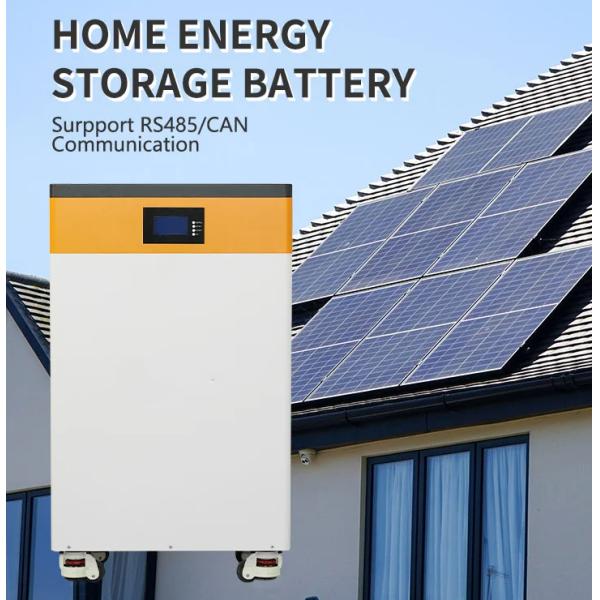

Rechargeable LiFePO4 Solar Battery Pack 48v 300ah 15kwh Lithium Ion Power Wall
Rechargeable LiFePO4 Solar Battery Pack 48v 300ah 15kwh Lithium Ion Power Wall
Specifications
Place of Origin :
china
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
negotiated
Output Power Range :
10~20 kWh
Dimension (L*W*H) :
800*520*300mm
Weight :
120.5KG
Protection Class :
IP22
Controller Type :
MPPT
Warranty :
10 Years
Description

Rechargeable LiFePO4 Solar Battery Pack 48v 300ah 15kwh Lithium Ion Power Wall

Rechargeable LiFePO4 Solar Battery Pack 48v 300ah 15kwh Lithium Ion Power Wall
Products Description
Model
5kwh(100Ah)
7.5kWh(150Ah)
10kWh( 200Ah)
15kWh( 300Ah)
Nominal Voltage
48V(15S)/51.2V(16S)
Energy(Unit: wh)
4800 / 5120
7200/ 7680
9600 / 10210
14400 / 15360
Cycle
6000
6000
6000
6000
Internal Resistance
100≤mΩ
100≤mΩ
100≤mΩ
100≤mΩ
Bulit in Inverter
No
Modes
Wall-mounted
Wall-mounted
Wall-mounted/
Mobile ESS
Mobile ESS
Battery Working
40.5~42.0V
40.5~42.0V
40.5~42.0V
40.5~42.0V
Charging Mode(CC/CV)
At 0℃~45℃ temperature, charge to 57.6V at a constant current of 0.2C, and then change continuously with constant voltage of 57.6V until the current was not more than 0.02C.
Charging Current
20A
20A
20A
20A
Max.Charging Current
100A
100A
100A
100A
Discharging Current
20A
20A
20A
20A
Max. Continuous Current
100A
100A
100A
100A
Max.Pulse Current
150A(<30S)
150A(<30S)
150A(<30S)
150A(<30S)
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP22
Cell & Format
IFR N100,16S1P(51.2V)
Casing
SPCC

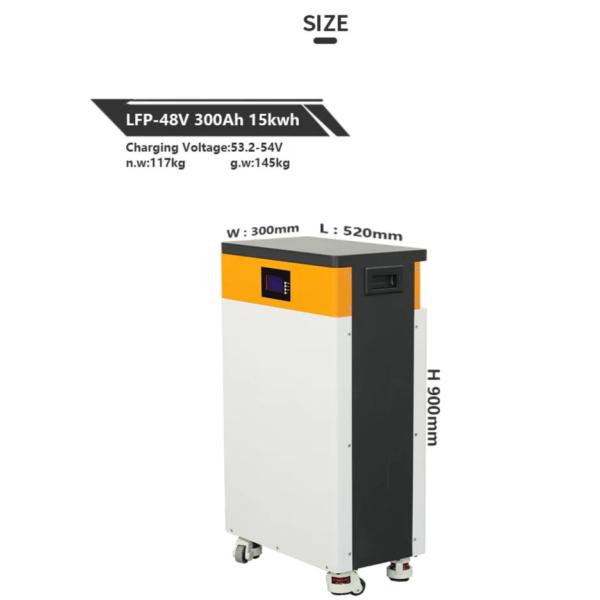

Dimension(L*W*H)
64.2*40*18.5cm
81*52*30cm
81*52*30cm
81*52*30cm
Weight
48.4kg
90.5kg
97kg
140kg
Communication
RS485/CAN/RS232
Support Inverter
Deye, Voltronic Power, Growatt, GOODWE, Victron energy, SRNE, PYLONTECH, SOFAR, MUST, MEGAREVOk, YWT, SRD, STUDER, SMA, DIDU, GINLONG
