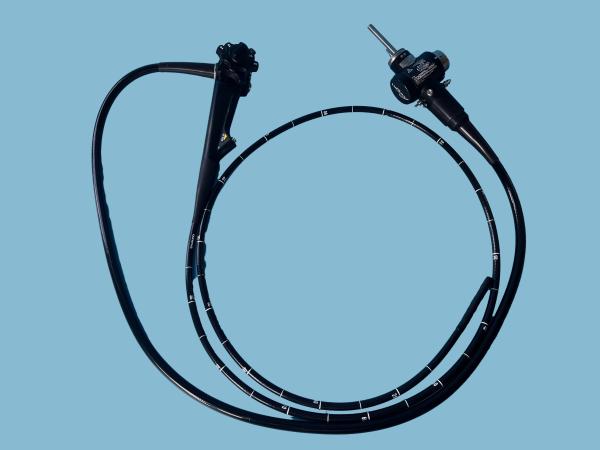

flexible Enteroscope SIF-Q260 2000mm Working Length For Intestinal Diagnosis And Treatment
flexible Enteroscope SIF-Q260 2000mm Working Length For Intestinal Diagnosis And Treatment
flexible Enteroscope SIF-Q260 2000mm Working Length For Intestinal Diagnosis And Treatment
flexible Enteroscope SIF-Q260 2000mm Working Length For Intestinal Diagnosis And Treatment
flexible Enteroscope SIF-Q260 2000mm Working Length For Intestinal Diagnosis And Treatment
flexible Enteroscope SIF-Q260 2000mm Working Length For Intestinal Diagnosis And Treatment
Specifications
Type :
Flexible
Material :
Metals And Plastics
Condition :
Good
Usage :
Medical Diagnosis
Field Of View :
Wide Angle
Image Resolution :
High Definition
Light Intensity :
High
Description

Flexible Enteroscope SIF-Q260 2000mm Working Length For Intestinal Diagnosis And Treatment


1. Function Introduction:

use for observation, diagnosis, imaging and treatment of the intestine and the upper and lower gastrointestinal tract (the lining of the digestive tract) leading to the intestine

2. Parameters Of Olympus Enteroscope SIF-Q260

  • Field of view: 140°

  • Direction of view: Forward viewing

  • Depth of field: 5-100 mm

  • Distal end out diameter: 9.2 mm

  • Insertion tube outer diameter: 9.4 mm

  • Channel inner diameter: 2.8 mm

  • Minimum visible distance: 3.00 mm

  • Working length: 2000 mm

  • Angulation range: Up 180°, Down 180°, Right 160°, Left 160°

  • Total length: 2345 mm


    flexible Enteroscope SIF-Q260 2000mm Working Length For Intestinal Diagnosis And Treatment

    Major Structure of Flexible Endoscope


    Advancements in flexible endoscopy have rapidly progressed this technology to the next level of sophistication. Complex endoscopes and accessories have expanded the capabilities of performing surgery and treatments in a less invasive manner.
    A flexible endoscope is like a Swiss Army knife that is brilliantly designed into a compact device that includes a suction channel, light and image guides, irrigation channels, and biopsy channels capable of passing instruments through.

    Four Major Flexible Endoscope Structures


    Control body
    Insertion tube
    Bending section/distal tip
    Light guide connector
