Light Cone Belong To Rigid Endoscope Spare Accessories Medical Parts
Light Cone Belong To Rigid Endoscope Spare Accessories Medical Parts
Light Cone Belong To Rigid Endoscope Spare Accessories Medical Parts
Light Cone Belong To Rigid Endoscope Spare Accessories Medical Parts
Light Cone Belong To Rigid Endoscope Spare Accessories Medical Parts
Light Cone Belong To Rigid Endoscope Spare Accessories Medical Parts
Light Cone Belong To Rigid Endoscope Spare Accessories Medical Parts
Light Cone Belong To Rigid Endoscope Spare Accessories Medical Parts
Specifications
MOQ :
1 piece
Price :
Negotiable
Packaging Details :
standard packaging
Delivery Time :
5-7 day
Payment Terms :
T/T etc.
Material :
Varies
Weight :
Varies
Name :
Rigid Scope Parts
Length :
Varies
Type :
Medical Parts
Colour :
Varies
Description
Light Cone Belong To Rigid Endoscope Spare Accessories Medical Parts
Light Cone Belong To Rigid Endoscope Spare Accessories Medical Parts

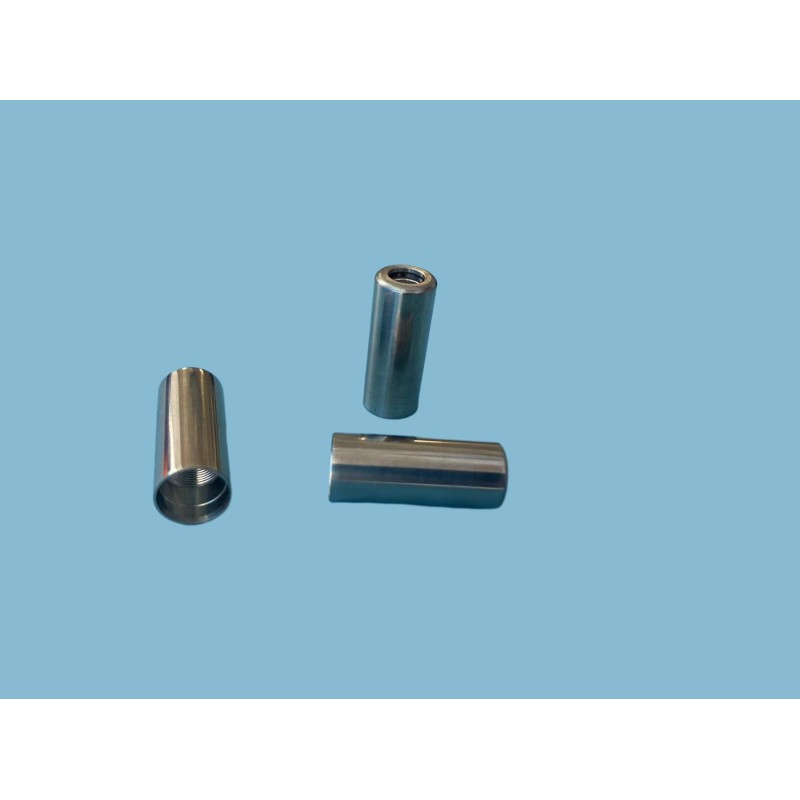

Light Cone

Fiber optic light cone:

φ5.5×φ2.0×13

φ5.5×φ2.5×13

φ5.5×φ2.6×13

φ5.5×φ3.0×13

φ6.0×φ3.0×13

φ6.0×φ3.5×13

φ6.0×φ4.0×13

Glass light cones:

φ5.5×φ2.0×13

φ5.5×φ2.5×13

φ5.5×φ3.0×13

All our units have been tested and are in EXCELLENT Condition.

We supply all endoscope brand refurbished and repair service.

Pls, feel free to contact us if you need.

Parameters of Light Cone

Fiber optic light cone:

φ5.5×φ2.0×13

φ5.5×φ2.5×13

φ5.5×φ2.6×13

φ5.5×φ3.0×13

φ6.0×φ3.0×13

φ6.0×φ3.5×13

φ6.0×φ4.0×13

Glass light cones:

φ5.5×φ2.0×13

φ5.5×φ2.5×13

φ5.5×φ3.0×13

Product Overview

The light cone is the small optical element that couples the endoscope's fibre bundle to the light cable at the light guide connector. It looks like a trivial part, but it is where light transmission is either preserved or lost: a scratched, chipped or clouded cone scatters light before it even reaches the scope, and the surgeon sees a dimmer, yellower image no matter how good the xenon source is. Replacing the cone restores full light throughput at a fraction of the cost of a new scope or light cable.

Available Sizes

Both fibre-optic and glass light cones are stocked in the common rigid endoscope dimensions. Sizes are stated as outer diameter x inner diameter x length in millimetres.

TypeDimensions (mm)Typical Use
Fibre optic coneφ5.5 x φ2.0 x 13Standard rigid scope light guide
Fibre optic coneφ5.5 x φ2.5 x 13Standard rigid scope light guide
Fibre optic coneφ5.5 x φ2.6 x 13Standard rigid scope light guide
Fibre optic coneφ5.5 x φ3.0 x 13Larger bundle, cystoscopes and laparoscopes
Fibre optic coneφ6.0 x φ3.0 x 13High-transmission rigid scopes
Fibre optic coneφ6.0 x φ3.5 x 13High-transmission rigid scopes
Fibre optic coneφ6.0 x φ4.0 x 13Large-bundle light cables
Glass light coneφ5.5 x φ2.0 x 13Glass alternative to fibre cone
Glass light coneφ5.5 x φ2.5 x 13Glass alternative to fibre cone
Glass light coneφ5.5 x φ3.0 x 13Glass alternative to fibre cone
Selection and Installation Notes
Measure the existing cone with a caliper: outer diameter, inner (bore) diameter and overall length must all match.
Fibre-optic cones are the usual choice for repair work; glass cones are used where the original specification calls for a solid optical element.
Check the cable-side ferrule at the same time — a worn ferrule will damage a new cone on the first connection.
Fit with the light cable disconnected, seat the cone fully without force, and confirm even light output before closing the connector.
Handle by the rim, not the optical faces, and keep the cone in its protective packaging until the moment of fitting.
Quality and Ordering

All units are checked before shipment and are supplied in excellent condition, individually protected. Mixed-size orders are accepted — state the quantities per size when requesting a quotation.

Can you supply a size not listed?
Tell us the exact dimensions and we will check availability or advise the closest matching size.
Do you offer endoscope repair service?
Yes — we handle refurbishment and repair for flexible and rigid endoscopes as well as supply of spare parts.
Delivery?
One piece minimum per size, dispatch normally within 5-7 working days, freight quoted for your destination.
Product Specification Summary
ParameterValue
MaterialVaries
WeightVaries
ColourVaries
NameRigid Scope Parts
LengthVaries
TypeMedical Parts
