HQ290 Open Nut (Insert Tube Connector)
HQ290 Open Nut (Insert Tube Connector)
HQ290 Open Nut (Insert Tube Connector)
HQ290 Open Nut (Insert Tube Connector)
HQ290 Open Nut (Insert Tube Connector)
HQ290 Open Nut (Insert Tube Connector)
HQ290 Open Nut (Insert Tube Connector)
HQ290 Open Nut (Insert Tube Connector)
Specifications
Weight :
Varies
Name :
Flexible Scope Parts
Length :
Varies
MOQ :
1 piece
Price :
Negotiable
Packaging Details :
standard packaging
Delivery Time :
5-7 day
Colour :
Varies
Material :
Plastic and Metal
Type :
Medical Parts
Payment Terms :
T/T etc.
Description
HQ290 Open Nut (Insert Tube Connector)

HQ290 Open Nut (Insert Tube Connector)

Stainless Steel

Compatible with gastroscope150/160/170/180/190/260/290.

Parameters of HQ290 Open Nut (Insert Tube Connector)

2.8×0.782×0.1

Product Overview

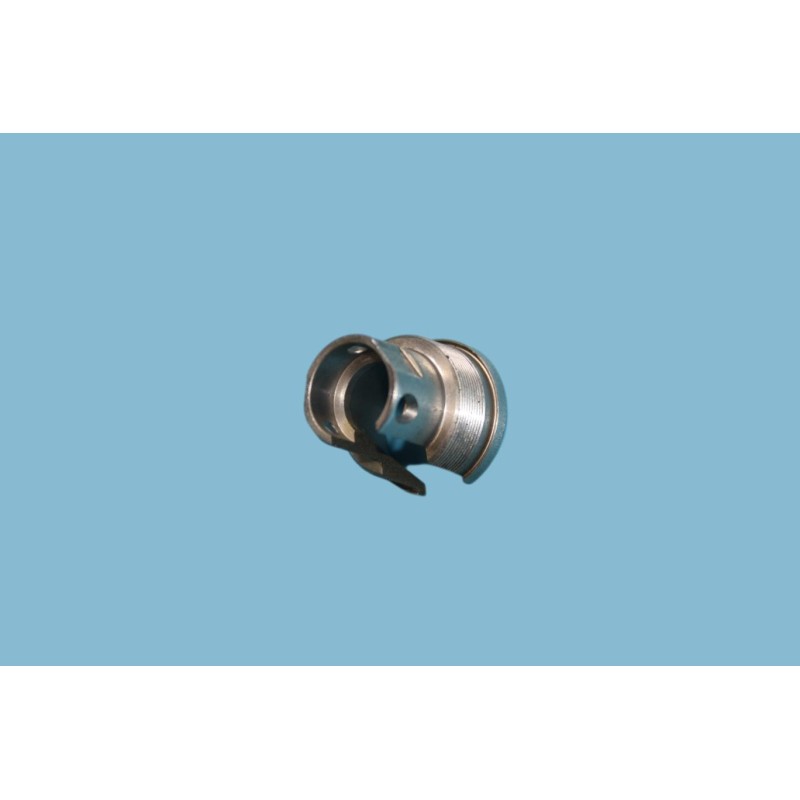

The HQ290 open nut is the insert-tube connector component that anchors the flexible insertion tube to the control body of an Olympus 290-series gastroscope. It is a stainless steel part, and in service terms it is a high-wear item: the nut is loosened and re-tightened every time the insertion tube is serviced, and a worn or deformed nut lets the tube seat incorrectly, which shows up as play at the control section and, in the worst case, as fluid ingress after reprocessing.

Dimensions of the connector: 2.8 x 0.782 x 0.1, in stainless steel.

Function in Repair and Refurbishment
Secures the insertion tube to the control body during insertion tube replacement.
Restores correct seating where the original nut has stripped threads or deformation.
Used in routine depot-level refurbishment of scopes that are otherwise optically serviceable.
Keeps a stock of wear parts on hand to shorten scope downtime between procedures.
Compatibility

Compatible with Olympus gastroscope series 150, 160, 170, 180, 190, 260 and 290. Because Olympus changed connector details across generations, confirm the exact scope model and serial prefix when ordering — the nut is dimensionally specific and is not interchangeable between all series.

Installation and Handling Notes
Work with the scope fully drained and disinfected; never open a connector on a wet scope.
Tighten to the torque specified in the service manual — over-tightening deforms the seat and creates exactly the leak path the part is meant to prevent.
Inspect the mating thread on the control body before fitting a new nut; a damaged thread will destroy the replacement.
Perform a leak test after reassembly, and re-check after the first full reprocessing cycle.
Quality and Ordering

Each nut is inspected for thread condition and dimensional accuracy before packing. Stainless steel construction resists corrosion through repeated disinfection cycles.

Can you confirm it fits my scope?
Tell us the model and series (for example GIF-H190) and we will confirm the correct connector variant.
Do you supply other 290-series parts?
Yes — we stock a broad range of flexible endoscope spare parts including connectors, bending sections, valves and light guides.
Delivery?
One piece minimum, dispatch normally within 5-7 working days, freight quoted for your destination.
Product Specification Summary
ParameterValue
WeightVaries
NameFlexible Scope Parts
LengthVaries
ColourVaries
MaterialPlastic and Metal
TypeMedical Parts
