Specifications
Feature 2 :
Plateau honing Rk parameter family (Rk,
Certification :
CE, FCC, RoHS, ISO 9001
Price :
USD 52,000 - 62,000 / Set
Delivery Time :
25-30 days
Supply Ability :
12 Sets
Feature 3 :
Technical Specifications
Brand Name :
AIWINGS
Packaging Details :
AIWINGS branded industrial flight case with foam insert, export-grade wooden crate
Feature 1 :
Bearing area ratio (tp curve) per
Place of Origin :
Beijing, China
MOQ :
1 Set
Payment Terms :
T/T,L/C,Western Union
Description

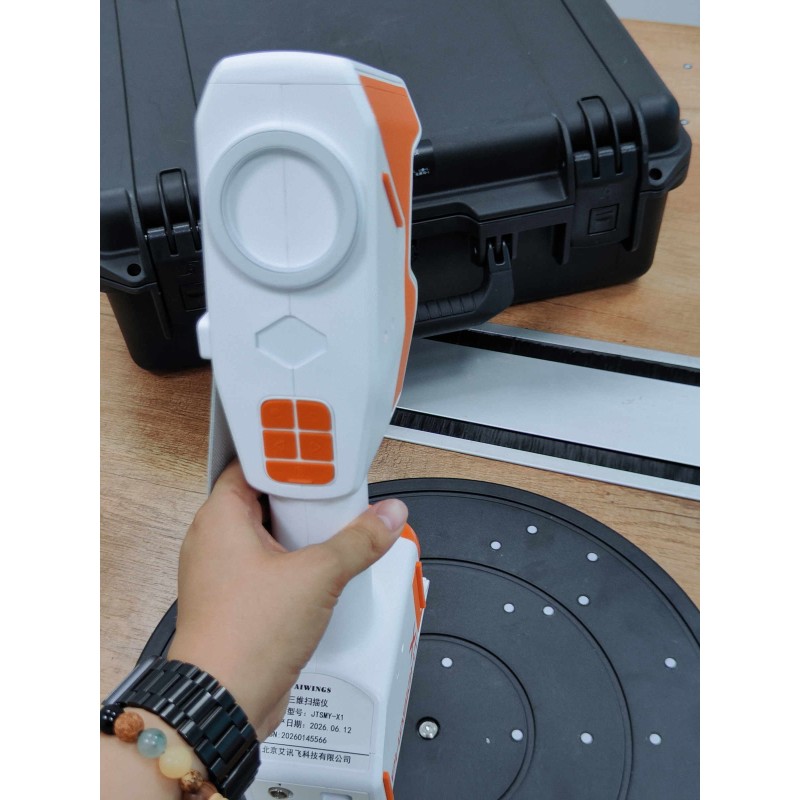

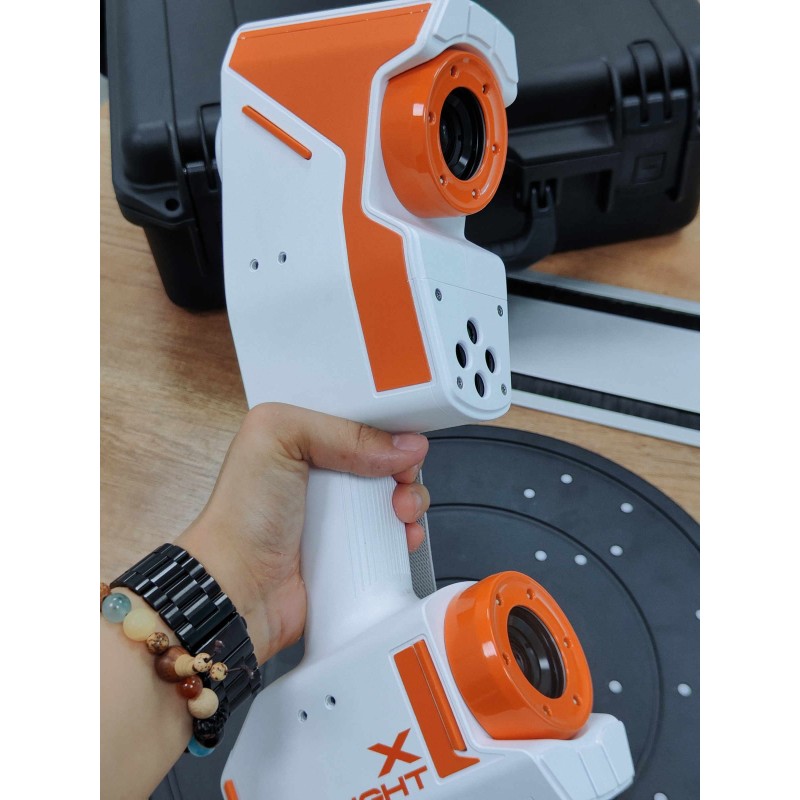

Phasight X1-GRIND Handheld 3D Scanner 86 Blue Laser Lines 0.020mm for Precision Ground Surface Grinding Burn

Powered by the Phasight X1 Series optical engine, the reference standard in handheld 3D metrology with 8.6M points/sec throughput.

Key Features

  • Bearing area ratio (tp curve) per ISO 13565 with Abbott-Firestone curve computation from optical scan data — evaluate the entire functional surface
  • Plateau honing Rk parameter family (Rk, Rpk, Rvk, Mr1, Mr2) automatically extracted from full-surface texture measurement per ISO 13565-2
  • Grinding burn detection through texture anisotropy analysis — burned surfaces exhibit characteristic texture changes detectable through optical orientation mapping
  • Surface texture waviness and form separation using robust Gaussian filtering per ISO 16610 — analyze functional surface parameters without stylus radius filtering artifacts

Technical Specifications

Technical Specifications
Model Phasight X1-GRIND
Laser Lines 86 Blue Laser Lines
Accuracy 0.020mm Volumetric
Technology Handheld 3D Scanning
Application Precision ground surface grinding burn inspection
Brand AIWINGS / Phasight X Series
