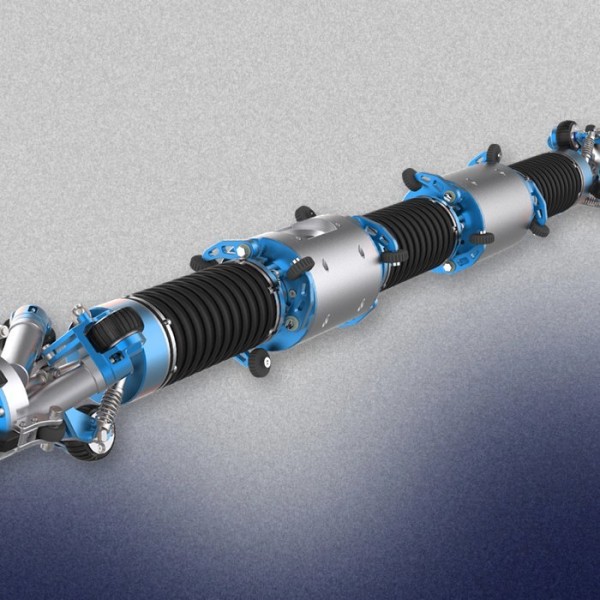

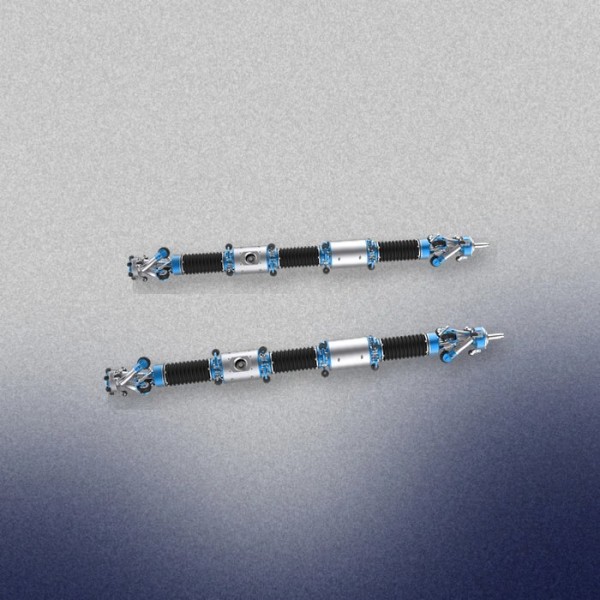

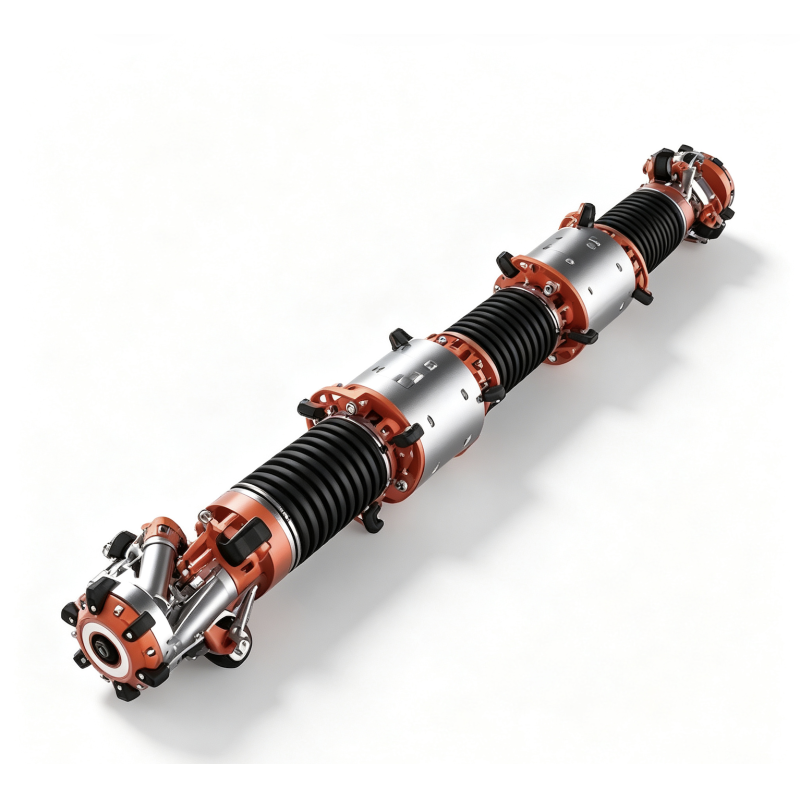

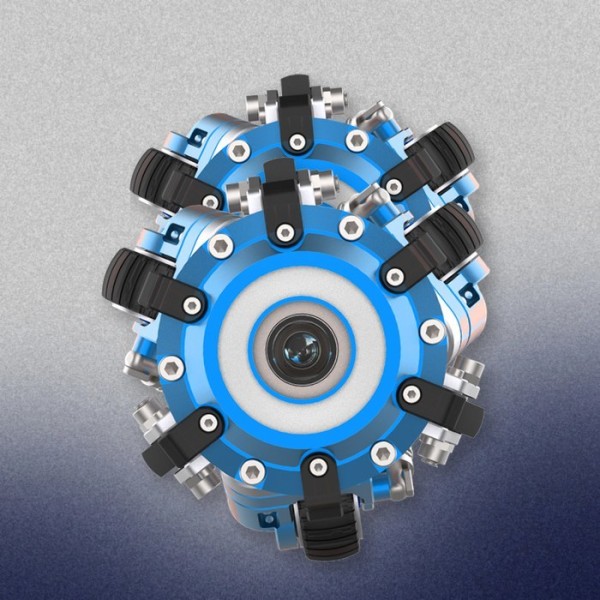

400mm Pipe Crawler Robot Multi Function 7 Module Suite Sonar Profiling 3D Laser Scanner
400mm Pipe Crawler Robot Multi Function 7 Module Suite Sonar Profiling 3D Laser Scanner
400mm Pipe Crawler Robot Multi Function 7 Module Suite Sonar Profiling 3D Laser Scanner
400mm Pipe Crawler Robot Multi Function 7 Module Suite Sonar Profiling 3D Laser Scanner
400mm Pipe Crawler Robot Multi Function 7 Module Suite Sonar Profiling 3D Laser Scanner
400mm Pipe Crawler Robot Multi Function 7 Module Suite Sonar Profiling 3D Laser Scanner
400mm Pipe Crawler Robot Multi Function 7 Module Suite Sonar Profiling 3D Laser Scanner
400mm Pipe Crawler Robot Multi Function 7 Module Suite Sonar Profiling 3D Laser Scanner
Specifications
Price :
USD 82,000 - 98,000 / Set (Full Module Set)
Delivery Time :
35-40 working days
Included Modules :
Visual 1080P, PAUT NDT, ECA NDT, Dual-Jet Cleaning, Debris Retrieval, AI Fusion, Sonar Profiling, 3D Laser Scanner (7 Modules + Sonar + 3D Laser)
Brand Name :
AIWINGS
3D Laser Scanner :
1 Million Points/sec, 0.05mm Accuracy
Sonar Profiling :
2.25MHz Multi-Beam, Submerged Operation
Payment Terms :
T/T,L/C,Western Union
Module Connection :
Quick-Swap Modular Bayonet
Model Number :
ASB-M400
Module Swap Time :
Under 30 Seconds Tool-Free
MOQ :
1 Set
Camera Resolution :
1080P Visual + 640x512 Thermal + Sonar
Bending Radius :
2.0D
Cable Length :
150 Meters
Protection Rating :
IP68
Place of Origin :
Beijing, China
Supply Ability :
8 Sets per Month
Pipe Diameter Range :
300mm - 700mm
Packaging Details :
AIWINGS branded industrial-grade flight case system with multi-module foam insert, export-grade wooden crate with moisture barrier and shock indicators
Description

ApexScope Bot M400 400mm Ultimate Multi-Function Pipe Crawler Robot 7-Module Suite Sonar Profiling 3D Laser Scanner

ApexScope Bot M400 400mm Ultimate Multi-Function Pipe Crawler Robot

The ApexScope Bot M400 is the pinnacle of the AIWINGS multi-function platform — the most comprehensive pipe crawler robot ever built. With seven dedicated modules plus integrated sonar and 3D laser scanning, the M400 provides complete pipeline condition assessment in both dry and fully submerged conditions. The multi-beam sonar profiler captures underwater cross-sections with the same precision as laser profiling in air, while the 3D laser scanner generates million-point cloud models of pipe interiors for engineering-grade structural analysis. Designed for 300mm to 700mm pipes, the M400 is the ultimate single-platform solution for the most demanding infrastructure assessment programs.

Key Features

  • Submerged + Dry Operation: 2.25MHz multi-beam sonar profiler and 360 ring laser profiler provide complete geometric assessment in both flooded and dry pipes — no need for separate equipment or dewatering.
  • 3D Laser Scanner (1M Points/sec): High-speed 3D scanner captures million-point cloud models at 0.05mm accuracy, enabling finite element analysis, deformation mapping, and digital twin generation at engineering-grade precision.
  • 7-Module Ultimate Ecosystem: Visual, PAUT, ECA, cleaning, retrieval, AI fusion, sonar, and 3D laser — every pipeline assessment technology available in a single modular platform with 30-second tool-free swapping.

Technical Specifications

Parameter Value
Pipe Diameter Range 300mm - 700mm
Included Modules 7 Modules + Sonar + 3D Laser Scanner
Sonar Profiling 2.25MHz Multi-Beam
3D Laser Scanner 1M Points/sec, 0.05mm Accuracy
Module Swap Time Under 30 Seconds
Cable Length 150 Meters
Camera Resolution 1080P HD Visual + Thermal + Sonar
Protection Rating IP68

This modular pipe robot is suitable for inspection and patrol applications in complex pipeline environments. Its modular design makes it convenient to combine and maintain according to actual working conditions. Beijing AIXUNFEI Technology Co., Ltd. provides industrial inspection equipment supply support for customers outside China and can assist with robot structure, camera system, cable length, control method, packaging, and shipping requirements.
