Industrial Borescope Automotive AI 3D Measurement Hd Industrial Endoscope 1920 X 1200
Industrial Borescope Automotive AI 3D Measurement Hd Industrial Endoscope 1920 X 1200
Industrial Borescope Automotive AI 3D Measurement Hd Industrial Endoscope 1920 X 1200
Industrial Borescope Automotive AI 3D Measurement Hd Industrial Endoscope 1920 X 1200
Industrial Borescope Automotive AI 3D Measurement Hd Industrial Endoscope 1920 X 1200
Industrial Borescope Automotive AI 3D Measurement Hd Industrial Endoscope 1920 X 1200
Industrial Borescope Automotive AI 3D Measurement Hd Industrial Endoscope 1920 X 1200
Industrial Borescope Automotive AI 3D Measurement Hd Industrial Endoscope 1920 X 1200
Specifications
Screen :
7-inch industrial sunlight-readable touchscreen
Delivery Time :
7-15 working days for standard, 20-30 days for custom configuration
MOQ :
1 Set
Emergency battery :
7.18 Wh
Certification :
CE, FCC, RoHS, ISO 9001
Main battery :
64.8 Wh
Place of Origin :
Beijing, China
Operating temperature :
host -25°C to 50°C, standard probe
Price :
USD 8,000 - 50,000 / Set
Measurement accuracy :
above 95%
Probe diameters :
0.9 mm to 8.3 mm options
Packaging Details :
`Phasight branded rugged transport case with custom foam insert, export-grade corrugated master carton`
Measurement display resolution :
0.01 mm
Probe lengths :
up to 20 m depending on
Brand Name :
AIWINGS
Model Number :
ApexScope X3
Supply Ability :
200 Sets per Month
Screen resolution :
1920 x 1200
Host weight :
approx. 2.5 kg with battery and
Payment Terms :
T/T, L/C, PayPal, Western Union
Description

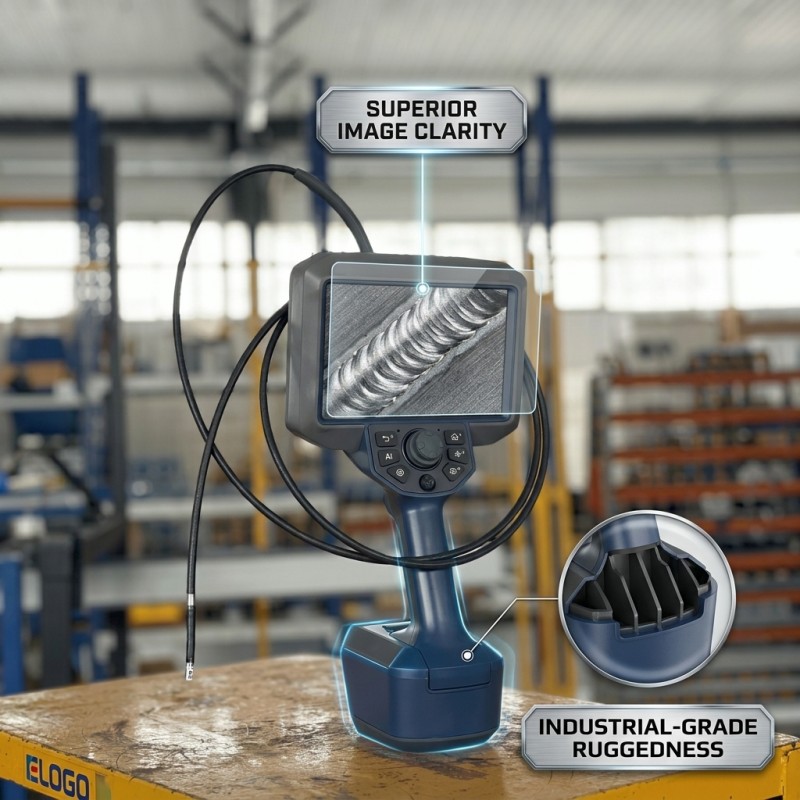

ApexScope X3 Advanced Industrial Endoscope with AI and 3D Measurement

The ApexScope X3 is a next-generation inspection endoscope for users who need accurate imaging, intelligent analysis, and reliable measurement in confined industrial spaces. It supports aerospace, petrochemical, energy, automotive, marine, and manufacturing inspection tasks, from weld checks and corrosion inspection to engine blade and component analysis.

Key Features

  • AI-assisted inspection, defect segmentation, and customizable recognition models
  • 3D point-cloud and stereo measurement for industrial defect evaluation
  • Modular probe system with multiple diameters and lengths
  • High-brightness 7-inch touch display for field operation
  • Electric articulation and real-time distance assistance
  • Optional private-server data upload and AI data platform integration

Main Specifications

  • Host weight: approx. 2.5 kg with battery and probe
  • Screen: 7-inch industrial sunlight-readable touchscreen
  • Screen resolution: 1920 x 1200
  • Measurement display resolution: 0.01 mm
  • Measurement accuracy: above 95%
  • Main battery: 64.8 Wh
  • Emergency battery: 7.18 Wh
  • Operating temperature: host -25°C to 50°C, standard probe -25°C to 100°C
  • Probe diameters: 0.9 mm to 8.3 mm options
  • Probe lengths: up to 20 m depending on configuration

Technical Specifications
Host weight approx. 2.5 kg with battery and probe
Screen 7-inch industrial sunlight-readable touchscreen
Screen resolution 1920 x 1200
Measurement display resolution 0.01 mm
Measurement accuracy above 95%
Main battery 64.8 Wh
Emergency battery 7.18 Wh
Operating temperature host -25°C to 50°C, standard probe -25°C to 100°C
Probe diameters 0.9 mm to 8.3 mm options
Probe lengths up to 20 m depending on configuration
