Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure
Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure
Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure
Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure
Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure
Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure
Specifications
Brand Name :
Tiger
Model Number :
TG-TI001
Certification :
ISO, CE,UL, RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
around 20 days
Packaging Details :
Carton/Pallet
Inductance tested :
100KHz 0.25V
Temperature rise :
40℃
Operating Temp Range :
-40℃ to +105℃
Size :
15mm
OEM :
Accepted
Quality :
winding toroidal inductors
Description

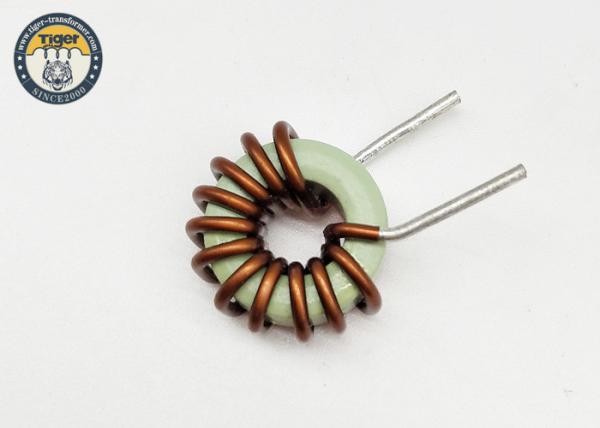

Toroid Choke Minimizes Magnetic Leakage Toroidal Transformer Firm Structure


Features:

  • For use in high frequency DC/DC converters
  • Low radiation
  • Low core loss
  • Current handling up to 31 Amps

  • Energy storage of 740 µJ

  • Axial or radial types available


Specifaction :

Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure

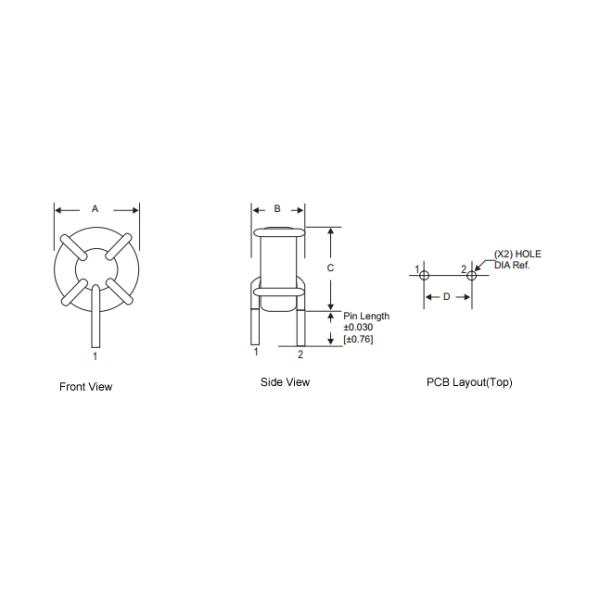

Mechanical Specifications

YATA Part

Number

Amax

(mm)

B max

(mm)

C Max

(mm)

D Ref

(mm)

Pin Length

(mm)

Hole Dia

(mm)
T60020 20.32 13.21 19.05 9.65 6.35 2.16
T60017 20.32 12.70 18.54 10.16 6.35 2.54
T60004 20.50 9.50 18.50 7.50 3.40 2.40
T60L18 21.08 12.45 20.32 8.38 6.35 2.16
T60032 21.00 11.00 21.00 9.00 5.00 2.26

Electrical specifications

YATA Part

Number

DCR

(Ωmax)

I rating

(amp)

Tol

(±%)

Fre

(Khz)
T60020 0.00110 31.00 ±20% 100
T60017 0.00120 30.00 ±15% 100
T60004 0.00165 25.00 ±20% 100
T60L18 0.00204 26.00 ±15% 100
T60032 0.00200 26.00 ±20 1.

Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure

Application:
Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure
TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
Packing:
Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 10 days. Formal order needs around 20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure
