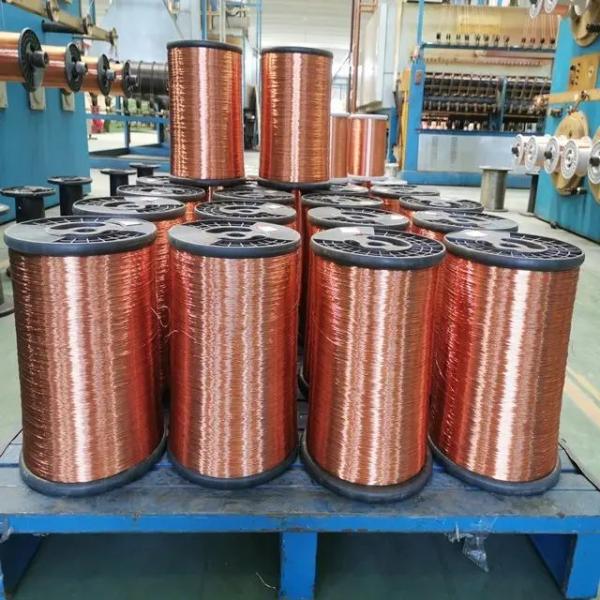

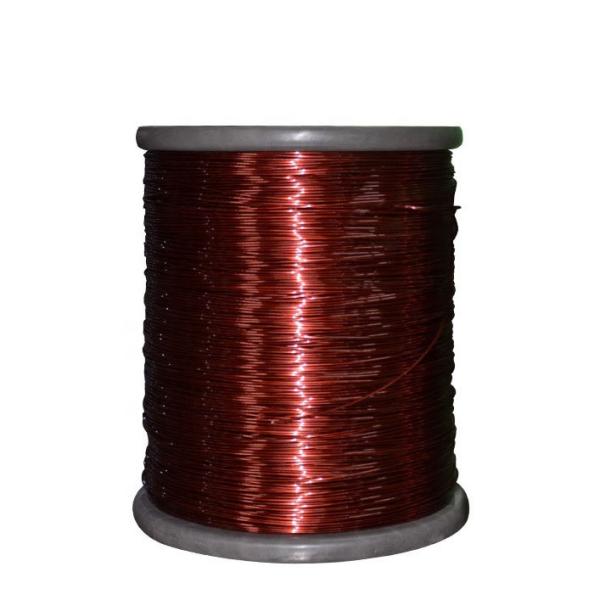

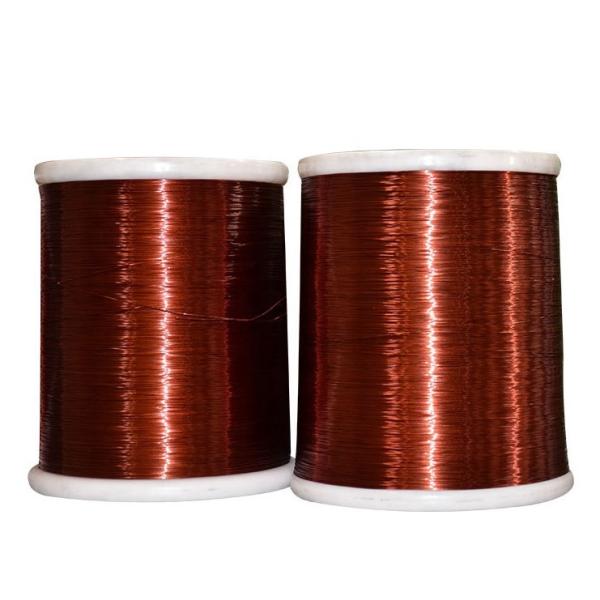

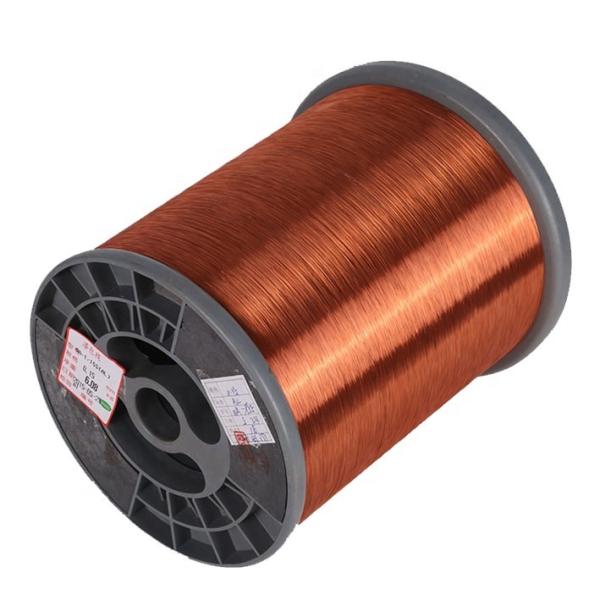

0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
Specifications
Temperature :
180 degrees
Shape :
ROUND, round
Diameter :
0.10-6.00mm
Single Wire Size :
0.10-6.00mm
Place of Origin :
ANHUI
Brand Name :
KINGDE
Model Number :
ECCA QZY-2/180
Type :
insulated, insulated
Application :
Transformer, Industrial, electric appliance, motor winding
Conductor Material :
Copper Clad Aluminum
Conductor Type :
Solid
Insulation Material :
Enameled
Rated voltage :
600V, 450V, 24V, 12V , 750V, 300V, 220V
Product name :
enameled copper clad aluminum wire
Material :
copper clad aluminum
Certification :
ROHS ISO 900
Thermal Class :
130/155/180/200/220
Specification :
0.030mm-6.00mm
MOQ :
500kg
Packing :
carton box with pallet
Description
Product Specifications
Enameled copper clad aluminum wire （ECCA wire）
1. Given the same weight and diameter, Ours Wiremeasures2.6-3.2 times longer than copper wire,which means one Ton pure copper wire should offer2.6-3.2 Ton CCA Wire, so reduce the raw material costmuch for production factory.
2.According to pure copper wire, the impossibility toseparate copper from CCA wire, so it keepsthieves away.
3.CCA wire is more malleable than copper wire,unlike aluminum that would generate the insula-tion oxide, easier processing and good conductiveproperties.
4.CCA wire is light weight, easy to transport andinstallation and construction, to reduce labor costs.
5.CCA wire has significant social benefits, it can savea lot of copper raw resources.
Product name
enameled copper clad aluminum wire
Thermal class
130/155/180/200/220
Diameter（mm）
0.030 mm-6.00mm
Material
copper clad aluminum
Shape
round
Standard
IEC,NEMA,GB,JIS,ASTM
Usage
Transformer; motor;generator; modern instrument; welding machine and so on
Shipping
By sea（shanghai port/Ningbo port）
Packing
carton box with pallet
Type
Polyester
Modified Polyester
Polyurethane
Polyesterimide
Polyamide-imide
Polyamide
Code
PEW, QZ
PEW, QZ
UEW, QA
EIW, QZY
EI/AIW, QZY/XY
AIW, QXY
Thermal Class
Class B, 130℃
Class F, 155℃
Class F, 155℃
Class H, 180℃
Class H, 200℃
Class L, 220℃
Insulation thickness
Grade 1, 2, 3
Standard
IEC 60317, NEMA MW, JIS
Characteristics
Good heat resistance and mechanical strength.
Low cost.
High mechanical strength, good elasticity, scratch resistance, adhesion, electrical properties and solvent resistance
Solderability(no need to remove the insulation).
High frequency resistance and dyeability
Good thermal shock resistance and refrigerant resistance.
Excellent chemical resistance, abrasion resistance
More comprehensive performance, with high heat resistance, mechanical properties, refrigerant resistance and chemical resistance
Highest heat class
High heat resistance, good solvent and refrigerant resistance

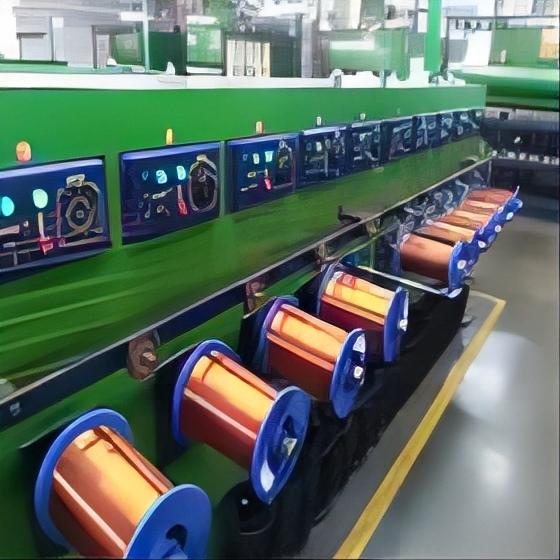

Production Workshop
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
Quality Inspection
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
Applications
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads Microwave
transformers;
Windings with light weight, high conductivity, good heat resistance;
Winding used for high frequency signal transmission
Enameled wire used in small-motor rotor winding, etc.
Magnet wires used in monitor deflection coil;
Magnet wires used in degaussing coil;
Other special magnet wire.
1. Automotive sensors and coils as relais and ignition coils.
2. Generators, dry-type or oil-immersed.
3. Anti-explosion motor, air-conditioner compressor, washing machine, Magnetic wire used in High Frequency.
transformer, common transformer, inductance coils, electromotors, household electromotors and micro-motors;
4. Military and space applications.

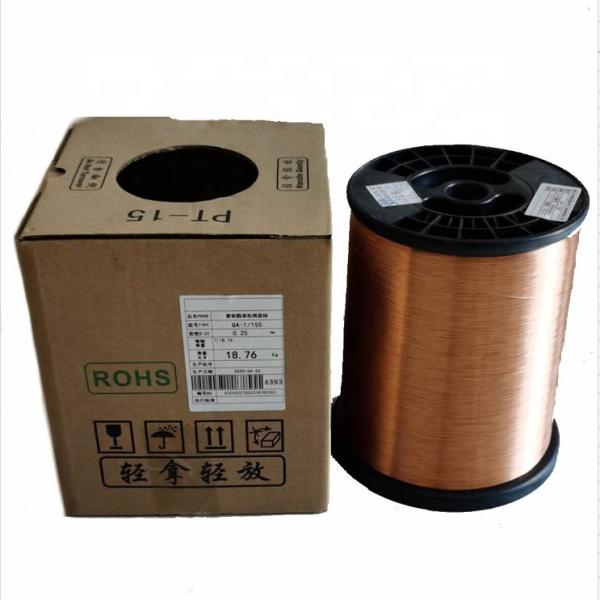

Packaging & Shipping
Winding wire with plastic spools (PT15,PT25,PT35,DIN200/250), according to different diameters Each one or Two spools in one carton. and then Wooden pallet or wooden case.
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
Certifications
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
Company Profile
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
0.10mm-6.50mm Enameled Copper Clad Aluminum Wire Cca Wire Motor Winding Wire
Anhui Xingde New Material Technology Co., Ltd. & Hefei Jinde New Material Technology Co., Ltd. are engaged in the production and sales of enameled copper wire, enameled aluminum wire, copper clad aluminum wire, copper clad aluminum magnesium wire and enameled copper clad aluminum wire with many years of experience. Our products are certified by ISO, RoHS, SGS, and comply with several standards including GB, JIS, ASTM, etc. Our products ,widely used in new energy, automotive, power transmission, household appliance and many other fields, are deeply trusted and praised by customers worldwide. We have always been committed to providing high-quality products and services for our customers, continuously developing markets, expanding business scope, and have established long-term cooperative relationships with customers from many countries around the world. We firmly believe that through continuous efforts and innovations, we can provide customers with higher quality products and services and create a better future together.
F A Q
1. Who are we?
We are based in Anhui, China, start from 2021,sell to Southeast Asia(30.00%),Mid East(20.00%),Central
America(10.00%),Africa(10.00%),North America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),South America(5.00%). There are
total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before a mass production;
Always a final Inspection before a shipment.
3.What can you buy from us?
enameled copper wire, enameled aluminum wire, copper clad aluminum wire, copper clad
aluminum magnesium wire and enameled copper clad aluminum wire,Aluminium alloy welding wire.
4. Why should you buy from us not from other suppliers?
First of all, our business personnel have undergone professional training and learning, and are very skilled in communication and professional knowledge, saving your time cost; Secondly, our products are produced with the most advanced assembly line and the highest quality raw materials, so you don't have to worry about the quality. Thirdly, our packaging and transportation are the top in the industry, the pallet is stable and beautiful, and the transportation is safe and efficient; Finally, many of our customers are buyback customers who are very satisfied with our product prices and services and are willing to continue to cooperate with us. Believe that you choose us, is equal to choose efficient, worry-free, satisfied.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
