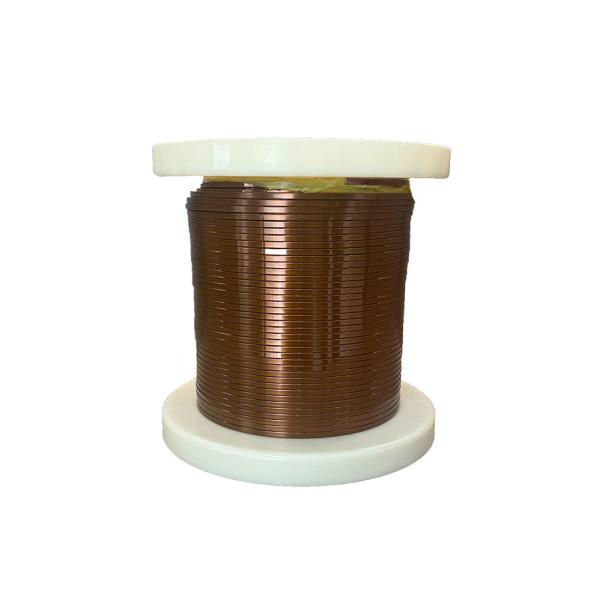

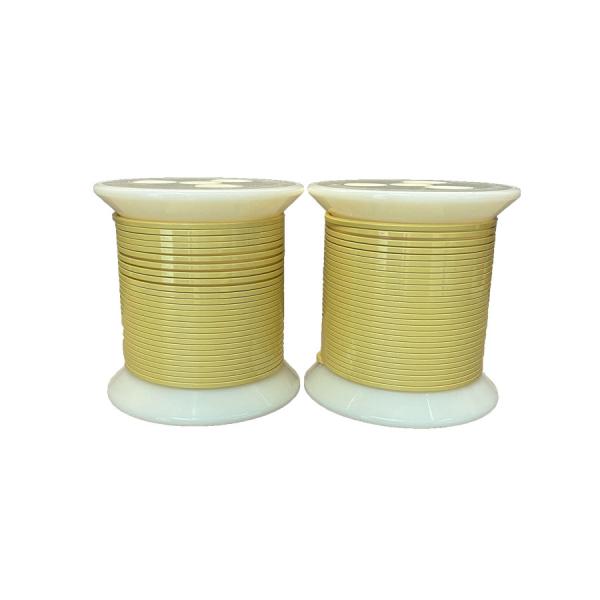

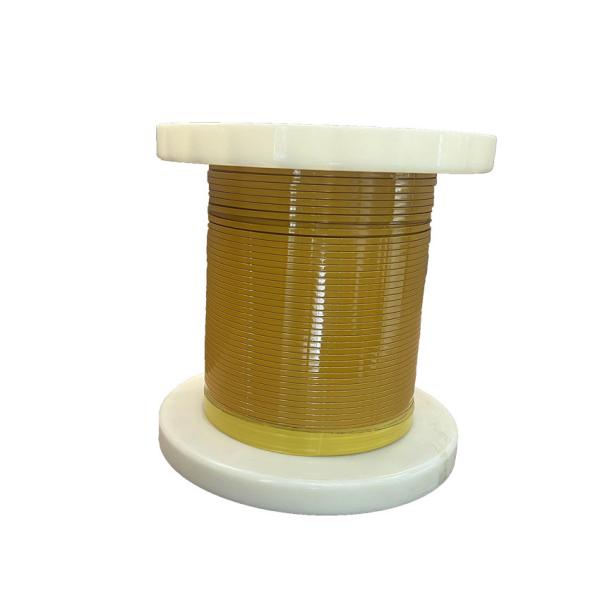

Corona-resistance Enamelled Copper Winding Wire HEVW-220C with JIS Standard 220C Temperature Rating and Good Heat Resistance
Corona-resistance Enamelled Copper Winding Wire HEVW-220C with JIS Standard 220C Temperature Rating and Good Heat Resistance
Corona-resistance Enamelled Copper Winding Wire HEVW-220C with JIS Standard 220C Temperature Rating and Good Heat Resistance
Corona-resistance Enamelled Copper Winding Wire HEVW-220C with JIS Standard 220C Temperature Rating and Good Heat Resistance
Corona-resistance Enamelled Copper Winding Wire HEVW-220C with JIS Standard 220C Temperature Rating and Good Heat Resistance
Corona-resistance Enamelled Copper Winding Wire HEVW-220C with JIS Standard 220C Temperature Rating and Good Heat Resistance
Corona-resistance Enamelled Copper Winding Wire HEVW-220C with JIS Standard 220C Temperature Rating and Good Heat Resistance
Corona-resistance Enamelled Copper Winding Wire HEVW-220C with JIS Standard 220C Temperature Rating and Good Heat Resistance
Specifications
Brand Name :
PEWSC
Model Number :
HEVW-220C
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ Varies According to the Size of the Specification
Price :
Copper Price plus Processing Fee plus Freight
Payment Terms :
T/T 100% Payment before Shipment
Supply Ability :
Delivery 10-15 Days after Next Order
Delivery Time :
3-5 Work Days
Packaging Details :
Carton
Conductor Diameter :
Customizable
Standard :
IEC, NEMA, JIS, or GB
Temperature Rating :
220℃
Application :
Drive motor, Transformer
Conductor :
oxygen free copper
Color :
Natural
Shape :
Flat
Sample :
Free
Description

1. Mechanical Strength and Flexibility
Robust Structure: The wire maintains structural integrity during winding and handling, even in complex coil configurations.
Bendability: It can be bent or shaped without cracking the enamel coating, adapting to various winding patterns in compact devices.

2. Superior Electrical Conductivity
High - Purity Conductors: Typically made from copper or aluminum with high electrical conductivity, it minimizes power loss and ensures efficient current transmission.
Low Resistance: The large cross - sectional area (for a given wire gauge) reduces ohmic resistance, making it suitable for high - current applications.

3. Special Geometric Shape
Rectangular Cross - Section: Unlike round wires, it has a flat and rectangular shape, which allows for more efficient space utilization in winding applications.
Higher Fill Factor: The flat design enables tighter packing in coils, increasing the number of turns per unit area and improving the power density of electrical devices (e.g., transformers, motors, and generators).

4. Environmental and Safety Features
Lead - Free and RoHS Compliant: Many enamelled flat wires comply with environmental standards, reducing harmful substance emissions.
Flame Retardancy: Some coatings offer flame - retardant properties, enhancing safety in critical applications.

In summary, enamelled flat wire combines efficient space utilization, reliable insulation, and high electrical performance, making it a preferred choice for advanced electrical and electronic designs that demand compactness and durability.
