Specifications
Brand Name :
JRF
Model Number :
1#40
Certification :
ISO9001
Place of Origin :
Jinan, Shandong
MOQ :
1 Square meter
Price :
$0.97-2.88
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
10000 Square meter
Delivery Time :
5-14 work days
Packaging Details :
Plastic sealed packaging
Base fabric material :
Shandong, China
Base Fabric :
Polyester, Cotton, Nylon, Fiberglass, Blended
Coating Type :
PVC, PU, PE, EVA, PTFE
Surface Treatment :
Waterproof, Fireproof, Anti-UV, Anti-static, Anti-mildew, Abrasion-resistant
Weight (g/m²) :
150 – 1200 (Common: 300–600 g/m²)
Thickness :
0.15 mm – 2.0 mm
Width :
1.00m / 1.50m / 2.00m / 3.20m
Tensile Strength (Warp) :
800–4500 N/5cm
Tensile Strength (Weft) :
500–3500 N/5cm
Description

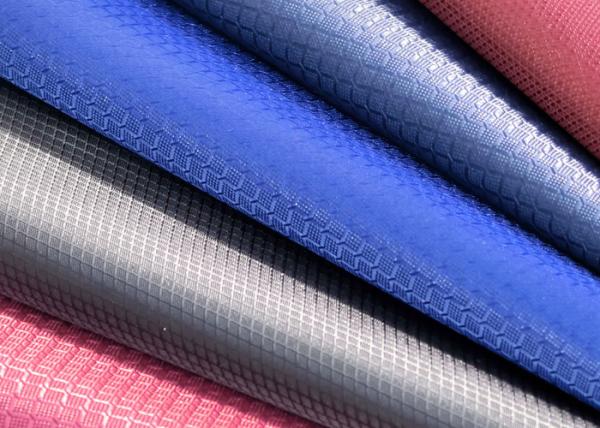

Coated Fabric Product ntroduction

Coated fabric is a funcionalcomposite material made by coaing polyester,coton,fiberglass cloth, or ther simlar materials with Pvc, PU,PE, siicne, or acplic materials.ltcombines the mechanical strength of the texle base withthe protective properies of the coaing, achieving a variety of characteristics such as waterproofing, oil resistance.abrasion resistance, flame relardancy,tear resistance, anibacterial properies,and UV resistance. tis widely usd in industrial equipment protecion,medical dressings, outdoolproducts.transport2nctocnnica teyiec

Anti-UV Durable Coated Fabric With Excellent Fireproof

Coated fabric product parameters

Item Typical Range / Value Description
Base fabric material Shandong, China -
Brand Name JRF -
Base Fabric Polyester, Cotton, Nylon, Fiberglass, Blended Selected according to application
Coating Type PVC, PU, PE, EVA, PTFE Different coatings for different performance
Surface Treatment Waterproof, Fireproof, Anti-UV, Anti-static, Anti-mildew, Abrasion-resistant Customizable functions
Weight (g/m²) 150 – 1200 (Common: 300–600 g/m²) Customizable
Thickness 0.15 mm – 2.0 mm Can be increased by lamination
Width 1.00m / 1.50m / 2.00m / 3.20m Supports customized cutting
Tensile Strength (Warp) 800–4500 N/5cm EN ISO 1421 Standard
Tensile Strength (Weft) 500–3500 N/5cm EN ISO 1421 Standard
Tear Strength (Warp) 80–600 N ASTM D751 Standard
Tear Strength (Weft) 80–600 N ASTM D751 Standard
Hydrostatic Pressure 1000–10000 mmH₂O Waterproof rating
Temperature Resistance -30℃ to +80℃ (Up to -50℃ optional) Outdoor performance
Flame Retardant Grade NFPA 701 / B1 / M1 Certificates available
Breathability 500–5000 g/m²·24h PU/TPU breathable
Color Options White, Black, Gray, Green, Custom (Pantone support) Customizable
Surface Finish Matte / Semi-matte / Glossy / High-gloss Optional
Mold Resistance Grade 0 – 5 (Up to 3A Industrial Standard) Anti-mildew test
UV Protection UPF 30+ / 50+ / 100+ For outdoor use
Service Life 3 – 10 years Depends on usage environment
Environmental Certification ROHS / REACH / OEKO-TEX / EN-71 Reports available

Features of coated fabric products

Coated fabric posseses high strengh, waterproof, corosion-resisitanl, weaher-resistant, customizable fame-retardant and enronmentaly friendly properies,making itsuitalblefor various industrial and outdoor environments. it is a cost-effective, long-lasting, and fexible functional material.

Anti-UV Durable Coated Fabric With Excellent Fireproof

Coated Fabric Product Cases

Industrial Equipment Protective Covers

Customer Needs: Machinery operates in a dusty environment for extended periods, requiring dustproof, oil-proof, and waterproof materials.

Solution: Use abrasion-resistant PVC coated fabric (600g/m²) with an oil-proof coating.

Customer Feedback: Service life increased from 6 months to 2 years, and maintenance costs decreased by approximately 40%.

Anti-UV Durable Coated Fabric With Excellent Fireproof

About Us

Shandong Jiurunfa Chemical Technology Co., Ltd., located in Jinan, Shandong Province, occupies over 50 acres of factory space with more than 50,000 square meters of factory buildings. Its fixed assets and output value both exceed 100 million RMB. Currently, the company has developed and produced three major special protective series: modified PVC, modified rubber, and specialty rubber. Its adhesive tape products cover the needs of various industries, including various types of chemical-resistant, flame-retardant, anti-toxic, highly acid-resistant, highly oil-resistant, highly cold-resistant, and anti-reflective special protective tapes. The products have passed national authoritative testing and certification. With first-class technical strength and unparalleled product quality, the company has won the unanimous trust of its customers.

Our products have been exported to more than 90 countries and regions in the Americas, Europe, the Middle East, South America, Africa, and Southeast Asia. This is thanks to our professional and enthusiastic sales team, each member of which is an expert in their field. If you are looking for quality-assured products, please contact us for more detailed product information.
