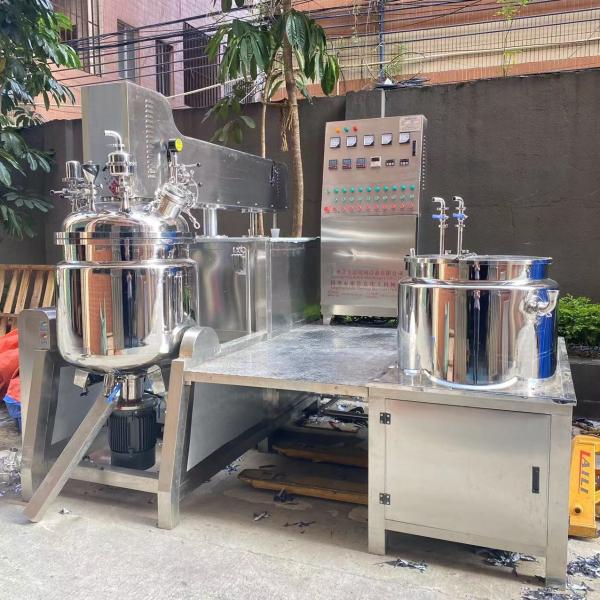

200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
200L Vacuum Ointment Homogenizing Emulsifying Machine
Specifications
Brand Name :
AILUSI
Certification :
CE,ISO
Place of Origin :
JIANGSU
MOQ :
1
Price :
11000USD
Payment Terms :
D/A, L/C, T/T
Supply Ability :
10
Delivery Time :
35
Product name :
Vacuum emulsifier
Voltage :
220V/380V/400V
Condition :
New
Material :
SUS304,SUS316
Weight :
540kg
Description

200L Vacuum Ointment Homogenizing Emulsifying Machine

1The pot cover takes the form of auto-move-up-and-down. The material in water pot and oil pot is sucked into emulsifying pot in vacuum by transmission pipes. The emulsifying pot is designed to be titted over in case to dump products. The material can be heated by electrical heater with help of heat-conductive medium it can also heated bygasi. The heat temp, can be set and automatically controlled.Material cooling is available. It is easy to operate. There is temperature- keeping sheet betweer inner and out sheath Different stirring modes can be used simultaneously or individually. All the processes of crushing, emulsifying, mixing,stirring and dispersing can be accomplished within a short time. The area touching working material is made of stainless steel(Commonly used 304, medical 316L ),With innter surface polished, the vacuum stirring equipment meets the need of hygiene and are manufactured in accordance with GMP standard. It is best for the production of ointment,cream,etc.lotion making machine.
200L Vacuum Ointment Homogenizing Emulsifying Machine

  • Item NO.:AVE

  • Lead Time:35 days

  • Product Orgin:China

  • Shipping Port:Yangzhou/Guangzhou

  • Payment:EXW, FOB, CIF etc

  • Product Detail

200L Vacuum Ointment Homogenizing Emulsifying Machine200L Vacuum Ointment Homogenizing Emulsifying Machine200L Vacuum Ointment Homogenizing Emulsifying Machine200L Vacuum Ointment Homogenizing Emulsifying Machine200L Vacuum Ointment Homogenizing Emulsifying Machine200L Vacuum Ointment Homogenizing Emulsifying Machine

Vacuum Emulsifier Homogenizer Description:

Emulsfying Homogenizing means when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between the stator and rotor by strong energy of motion produced by the machine effect.

By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.

The product of vacuum emulsifying mixer machine mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilizer, plastic & rubber, electronic and electronics, fine chemical industry, etc.

The emulsifying effect is more prominent for materials of high base viscosity and high solid content.200L Vacuum Ointment Homogenizing Emulsifying Machine200L Vacuum Ointment Homogenizing Emulsifying Machine

capacity (L) Agitator power (kW) Speed (rpm) Homogenizer power (kW) Speed (rpm) Oil/Water tank (L) Agitator power (kW) Speed (rpm) Hydraulic (KW)
50 1.5 0~75 2 0~3600 20/45 0.37/0.37 0~1440 0.75kw
100 2.2 0~75 3 0~3600 40/90 0.55/0.55 0~1440 0.75kw
200 3 0~75 5.5 0~3600 80/180 0.75/0.75 0~1440 1.1kw
300 4 0~75 5.5 0~3600 120/270 1.1/1.1 0~1440 1.5kw
500 4 0~75 7.5 0~3600 200/450 1.5/1.5 0~1440 1.5kw
1000 5.5 0~75 11 0~3600 400/900 2.2/2.2 0~1440 2.2kw
2000 7.5 0~75 15 0~3600 800/1800 2.2/2.2 0~1440 -
3000 11 0~75 18.5 0~3600 1200/2700 3/3 0~1440 -

Factory:

200L Vacuum Ointment Homogenizing Emulsifying Machine200L Vacuum Ointment Homogenizing Emulsifying Machine
